MSKSEMI

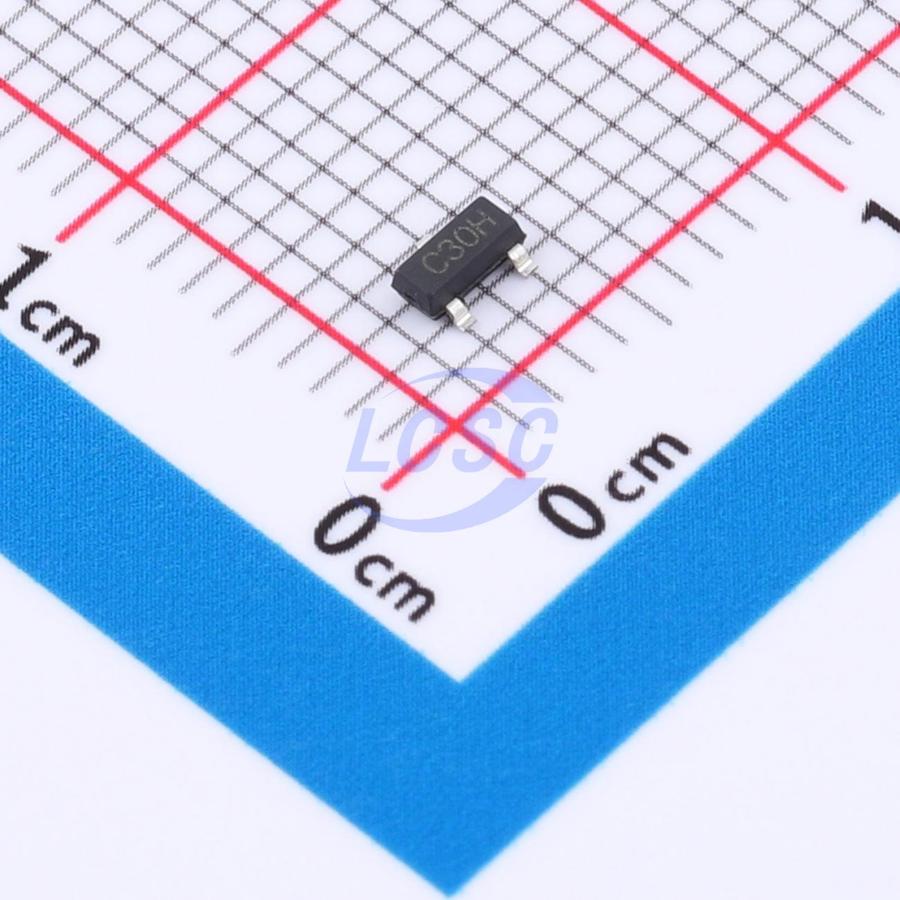

MS2188A30XG

370kHz Boost Fixed 3V SOT-23 Voltage Regulators - DC DC Switching Regulators

SOT-23RoHSActive

Manufacturer: MSKSEMI
Manufacturer part #: MS2188A30XG
Store part #: C49375251
Package / case: SOT-23
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,920 in stock

#C49375251

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
10+	₹7.47	₹74.70
100+	₹5.91	₹591.00
300+	₹5.13	₹1,539.00
3,000+	₹4.54	₹13,620.00
6,000+	₹4.07	₹24,420.00
9,000+	₹3.84	₹34,560.00

Quantity (min 10, multiples of 10)

10 × ₹7.47

₹74.70

excl. GST

₹88.15 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

MS2188A30XG

₹74.70 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -20℃~+85℃
Number of Outputs: 1
Frequency - Switching: 370kHz
Function: Boost
Features: Light load efficient mode
Output Type: Fixed
Topology: Boost
Switch tube (built-in/external): Built-in
Output Voltage: 3V
Quiescent Current: 15uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 1 g

Overview

This device is a low standby power, high-efficiency synchronous boost DC-DC converter with a standby current of only 15μA. It employs a fixed on-time pulse frequency modulation control scheme that automatically reduces switching frequency under light-load conditions to maintain high conversion efficiency. Only three external components are required to step up from a low battery input voltage to the desired operating voltage. Utilizing patented control technology, the device features ultra-low standby power consumption and high light-load efficiency, achieving an input current of only 15μA while maintaining regulated output voltage — making it ideal for applications with demanding battery standby time requirements. Available in SOT23, SOT23-5, and SOT89-3 packages.
