MSKSEMI

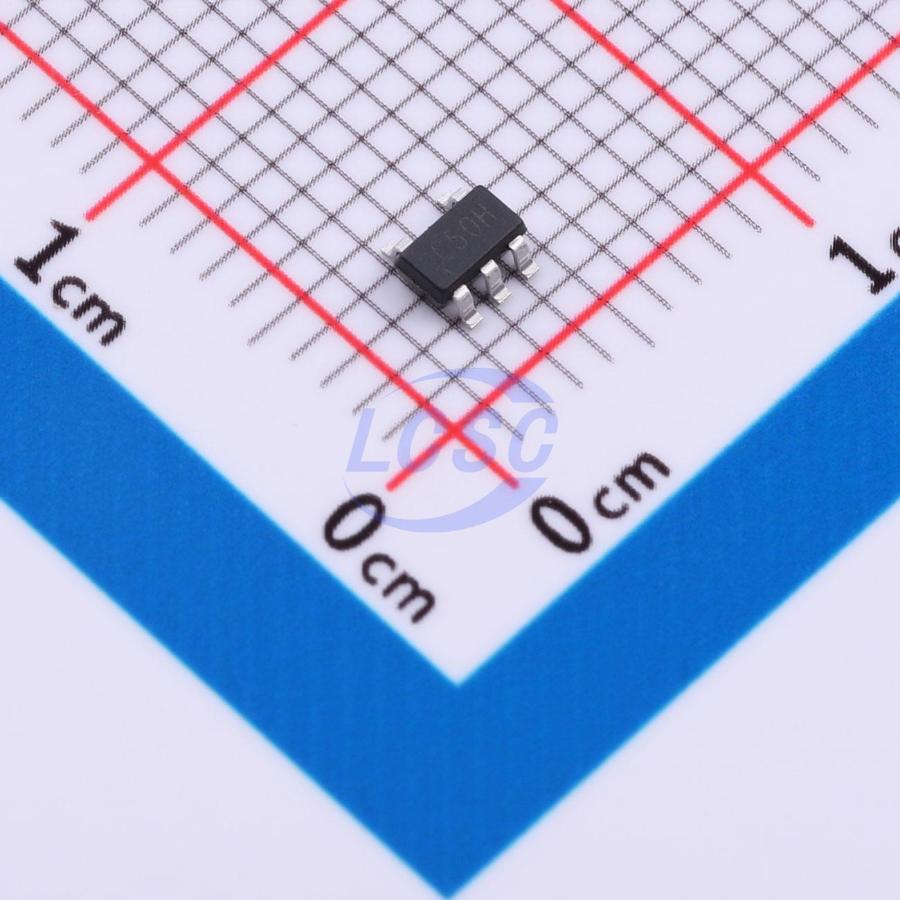

MS2188C50M5G

370kHz Boost Fixed 5V SOT-23-5 Voltage Regulators - DC DC Switching Regulators

SOT-23-5RoHSActive

Manufacturer: MSKSEMI
Manufacturer part #: MS2188C50M5G
Store part #: C49375254
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,430 in stock

#C49375254

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
10+	₹7.53	₹75.30
100+	₹5.97	₹597.00
300+	₹5.19	₹1,557.00
3,000+	₹4.60	₹13,800.00
6,000+	₹4.14	₹24,840.00
9,000+	₹3.90	₹35,100.00

Quantity (min 10, multiples of 10)

10 × ₹7.53

₹75.30

excl. GST

₹88.85 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

MS2188C50M5G

₹75.30 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -20℃~+85℃@(TA)
Frequency - Switching: 370kHz
Function: Boost
Number of Outputs: 1
Features: Light load efficient mode
Output Type: Fixed
Topology: Boost
Switch tube (built-in/external): Built-in
Output Voltage: 5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 1 g

Overview

MS2188 is a low standby power, high-efficiency synchronous boost DC-DC converter with a standby current of only 15uA. The device employs a fixed on-time PFM control scheme that automatically reduces switching frequency under light-load conditions to maintain high conversion efficiency. With only three external components, it can boost low input battery voltage to the required operating voltage. By utilizing proprietary control technology, the device features low standby power consumption and high efficiency at light loads, capable of regulating the output voltage while drawing only 15uA of input current, making it particularly suitable for applications with stringent requirements on extended standby time. The product is available in SOT23, SOT23-5, and SOT89-3 packages.
