MSKSEMI

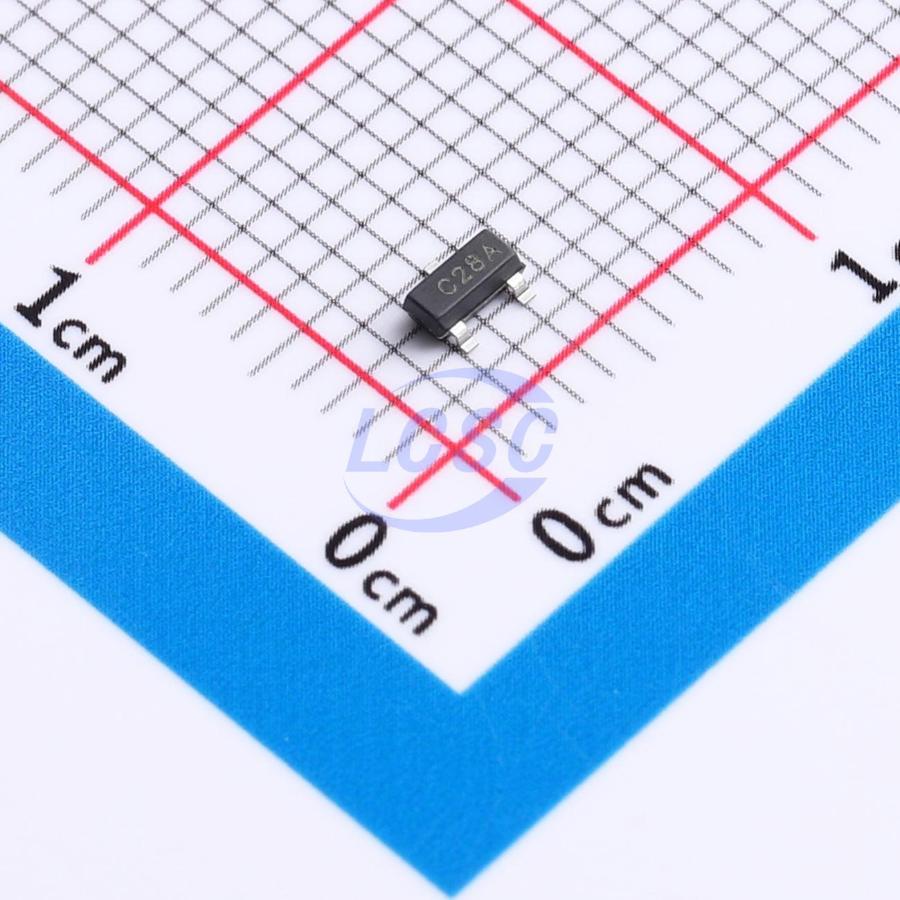

MS2304L28T

370kHz Boost Fixed 2.8V SOT-23 Voltage Regulators - DC DC Switching Regulators

SOT-23RoHSActive

Manufacturer: MSKSEMI
Manufacturer part #: MS2304L28T
Store part #: C49375246
Package / case: SOT-23
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,930 in stock

#C49375246

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
10+	₹6.39	₹63.90
100+	₹5.04	₹504.00
300+	₹4.37	₹1,311.00
3,000+	₹3.86	₹11,580.00
6,000+	₹3.45	₹20,700.00
9,000+	₹3.25	₹29,250.00

Quantity (min 10, multiples of 10)

10 × ₹6.39

₹63.90

excl. GST

₹75.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

MS2304L28T

₹63.90 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -20℃~+85℃@(TA)
Frequency - Switching: 370kHz
Function: Boost
Number of Outputs: 1
Features: Light load efficient mode
Output Type: Fixed
Topology: Boost
Switch tube (built-in/external): Built-in
Output Voltage: 2.8V
Quiescent Current: 6uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 1 g

Overview

This device is a low standby power, high-efficiency synchronous boost DC-DC converter with a standby current of only 15uA. It employs a fixed on-time PFM control scheme that automatically reduces switching frequency under light-load conditions to maintain high conversion efficiency. Only three external components are required to step up a low battery input voltage to the desired operating voltage. Utilizing patented control technology, the device features low standby power consumption and high efficiency at light loads, achieving an input current of only 15uA while maintaining regulated output voltage — making it particularly suitable for applications with demanding battery life requirements. Available in SOT23, SOT23-5, and SOT-89-3 packages.
