MSKSEMI

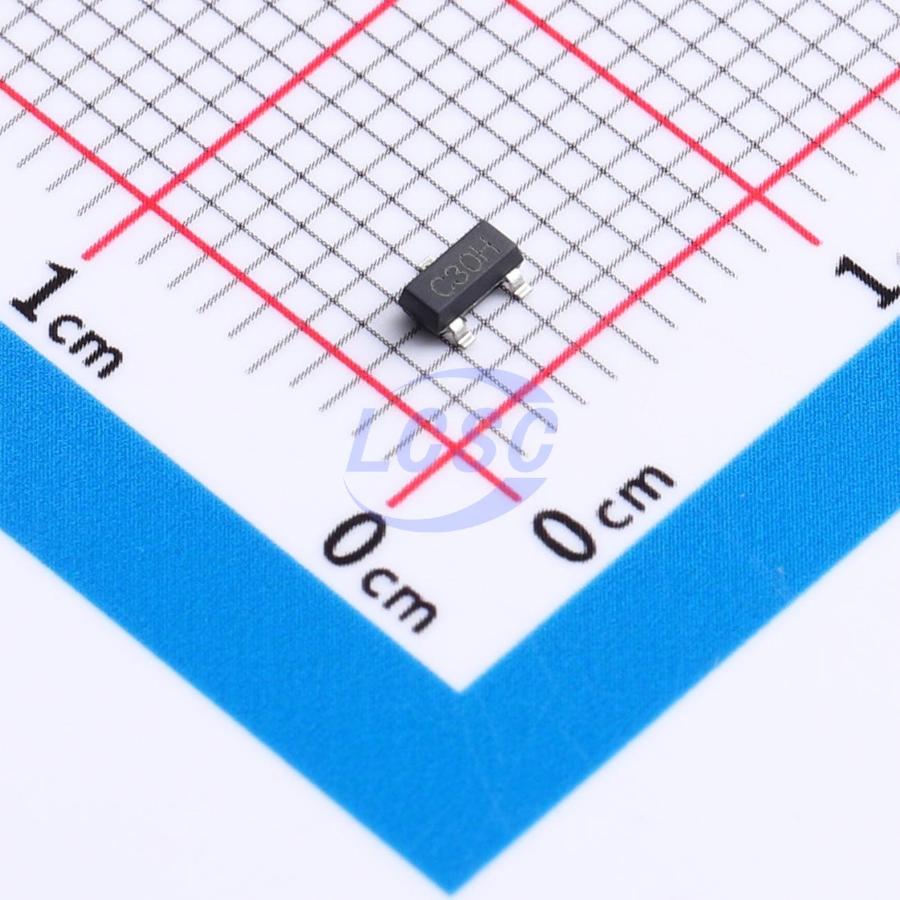

MS2304L30T

370kHz Boost Fixed 3V SOT-23 Voltage Regulators - DC DC Switching Regulators

SOT-23RoHSActive

Manufacturer: MSKSEMI
Manufacturer part #: MS2304L30T
Store part #: C49375247
Package / case: SOT-23
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,800 in stock

#C49375247

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
10+	₹6.39	₹63.90
100+	₹5.04	₹504.00
300+	₹4.37	₹1,311.00
3,000+	₹3.86	₹11,580.00
6,000+	₹3.45	₹20,700.00
9,000+	₹3.25	₹29,250.00

Quantity (min 10, multiples of 10)

10 × ₹6.39

₹63.90

excl. GST

₹75.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

MS2304L30T

₹63.90 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -20℃~+85℃@(TA)
Frequency - Switching: 370kHz
Function: Boost
Number of Outputs: 1
Features: Light load efficient mode
Output Type: Fixed
Topology: Boost
Switch tube (built-in/external): Built-in
Output Voltage: 3V
Quiescent Current: 6uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 1 g

Overview

MS2304Lxxx is a low standby power, high-efficiency synchronous boost DC-DC converter with a standby current of only 15uA. The device employs a fixed on-time PFM control scheme that automatically reduces switching frequency under light-load conditions to maintain high conversion efficiency. With only three external components, it can boost low input battery voltage to the required operating voltage. Through proprietary control technology, the device achieves low standby power consumption and high light-load efficiency, maintaining regulated output voltage while keeping input current as low as 15uA — making it particularly suitable for applications with stringent standby time requirements. The device is available in SOT23, SOT23-5, and SOT-89-3 packages.
