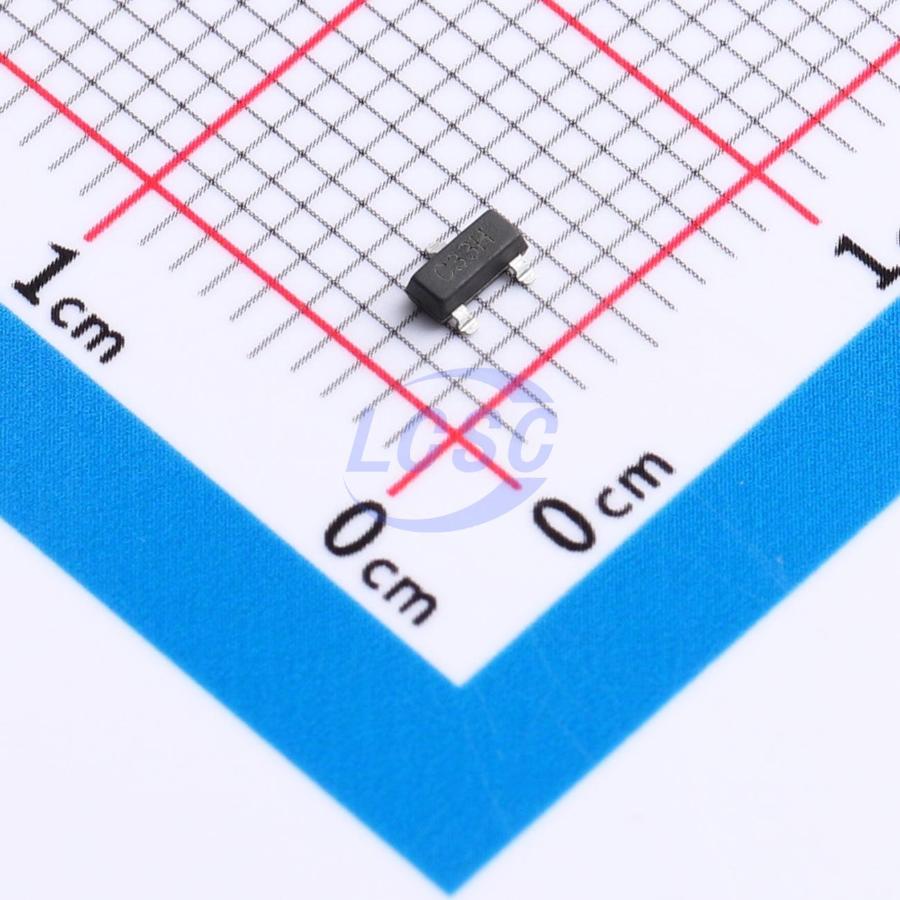

MSKSEMI

MS2304L33T

370kHz Boost Fixed 3.3V SOT-23 Voltage Regulators - DC DC Switching Regulators

SOT-23RoHSActive

Manufacturer: MSKSEMI
Manufacturer part #: MS2304L33T
Store part #: C49375248
Package / case: SOT-23
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,380 in stock

#C49375248

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
10+	₹6.48	₹64.80
100+	₹5.12	₹512.00
300+	₹4.45	₹1,335.00
3,000+	₹3.94	₹11,820.00
6,000+	₹3.53	₹21,180.00
9,000+	₹3.32	₹29,880.00

Quantity (min 10, multiples of 10)

10 × ₹6.48

₹64.80

excl. GST

₹76.46 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

MS2304L33T

₹64.80 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -20℃~+85℃@(TA)
Frequency - Switching: 370kHz
Function: Boost
Number of Outputs: 1
Features: Light load efficient mode
Output Type: Fixed
Topology: Boost
Switch tube (built-in/external): Built-in
Output Voltage: 3.3V
Quiescent Current: 6uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 1 g

Overview

MS2304Lxxx is a low standby power, high-efficiency synchronous boost DC-DC converter with a standby current of only 15uA. It employs a fixed on-time PFM control scheme that automatically reduces switching frequency under light load to maintain high conversion efficiency. Only three external components are required to boost a low battery input voltage to the desired operating voltage. Using patented control technology, the device features low standby power consumption and high light-load efficiency, achieving an input current of only 15uA while maintaining regulated output voltage — making it particularly suitable for applications with demanding battery standby time requirements. Available in SOT23, SOT23-5, and SOT-89-3 packages.
