MSKSEMIDatasheet (PDF)

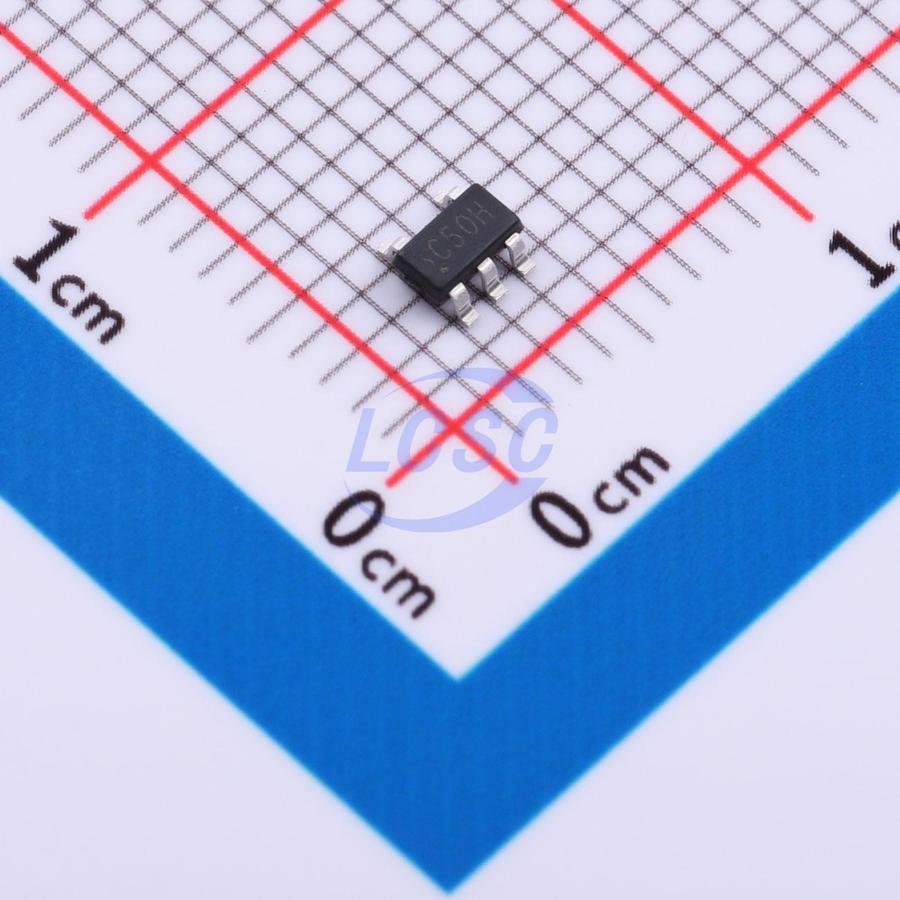

MS2304L50F
370kHz Boost Fixed 5V SOT-23-5 Voltage Regulators - DC DC Switching Regulators
SOT-23-5RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MS2304L50F
- Store part #
- C49375250
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,440 in stock
#C49375250
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.37 | ₹73.70 |
| 100+ | ₹5.81 | ₹581.00 |
| 300+ | ₹5.03 | ₹1,509.00 |
| 3,000+ | ₹4.45 | ₹13,350.00 |
| 6,000+ | ₹3.98 | ₹23,880.00 |
| 9,000+ | ₹3.74 | ₹33,660.00 |
10 × ₹7.37
₹73.70
excl. GST
₹86.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MS2304L50F
₹73.70 for 10 + GST
Specifications
- Operating Temperature
- -20℃~+85℃
- Number of Outputs
- 1
- Frequency - Switching
- 370kHz
- Function
- Boost
- Features
- Light load efficient mode
- Output Type
- Fixed
- Topology
- Boost
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1 g
Overview
MS2304Lxxx is a synchronous boost DC-DC converter featuring a standby current as low as 15uA and conversion efficiency up to 93%. It employs a fixed on-time PFM control scheme that automatically reduces switching frequency under light-load conditions to maintain high efficiency. With only three external components, the device steps up a lower battery input voltage to the required operating voltage. Through proprietary control technology, it achieves output voltage regulation while drawing only 15uA of input current, making it particularly suitable for applications with stringent battery life requirements. The product is available in SOT23, SOT23-5, and SOT-89-3 packages.
Applications
- Electronic dictionaries
- Digital cameras
- Blood pressure monitors
- MP3 players
- Remote-controlled toys
- Wireless headsets
- Wireless mice and keyboards
- Medical devices
- Anti-loss trackers
- Car alarms
- Chargers
- VCR
- PDA and other handheld electronic devices
Key features
- Low quiescent current: 15uA
- High efficiency: up to 93%
- Maximum operating frequency: 370KHz
- Output voltage range: 2.2V~5.0V (step 0.1V)
- Start-up voltage: 0.9V
- Low ripple, low noise
- Package: SOT-23, SOT-23-5, SOT-89-3
