MSKSEMI

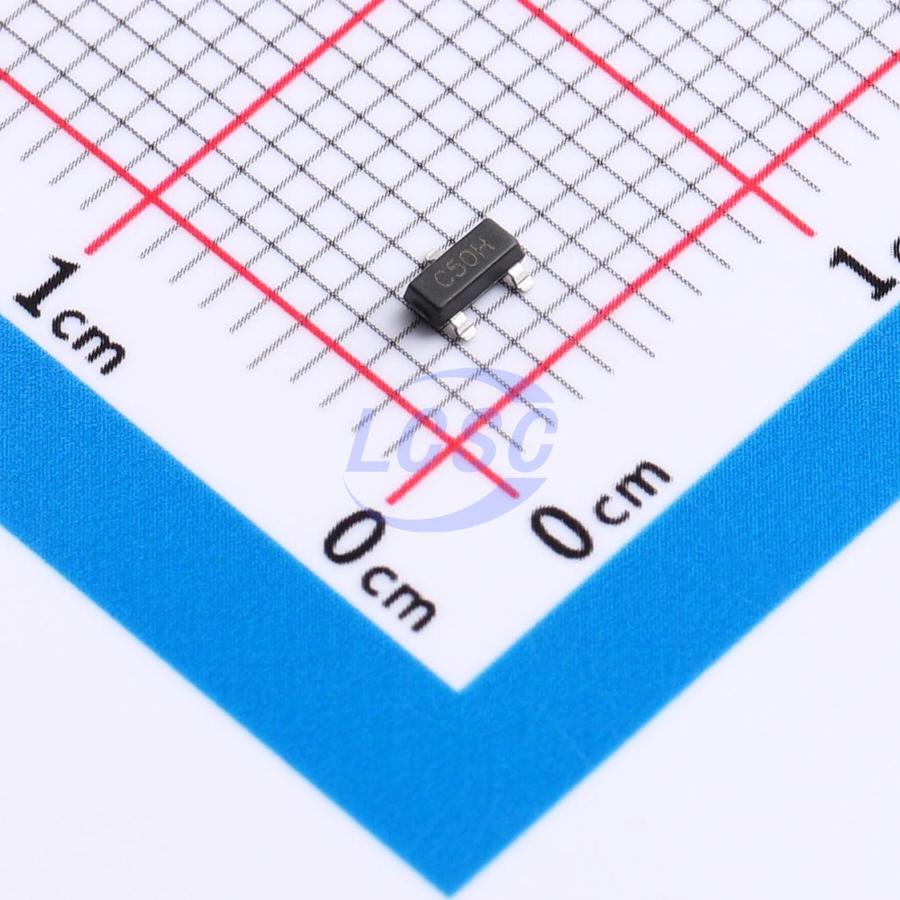

MS2304L50T

370kHz Boost Fixed 5V SOT-23 Voltage Regulators - DC DC Switching Regulators

SOT-23RoHSActive

Manufacturer: MSKSEMI
Manufacturer part #: MS2304L50T
Store part #: C49375249
Package / case: SOT-23
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,470 in stock

#C49375249

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
10+	₹6.55	₹65.50
100+	₹5.19	₹519.00
300+	₹4.51	₹1,353.00
3,000+	₹4.01	₹12,030.00
6,000+	₹3.60	₹21,600.00
9,000+	₹3.39	₹30,510.00

Quantity (min 10, multiples of 10)

10 × ₹6.55

₹65.50

excl. GST

₹77.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

MS2304L50T

₹65.50 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -20℃~+85℃@(TA)
Frequency - Switching: 370kHz
Function: Boost
Number of Outputs: 1
Features: Light load efficient mode
Output Type: Fixed
Topology: Boost
Switch tube (built-in/external): Built-in
Output Voltage: 5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 1 g

Overview

MS2304Lxxx is a synchronous boost DC-DC converter featuring a standby current as low as 15uA and conversion efficiency up to 93%. It employs a fixed on-time PFM control scheme that automatically reduces switching frequency under light-load conditions to maintain high efficiency. With only three external components, the device steps up a lower battery input voltage to the required operating voltage. Through proprietary control technology, it achieves output voltage regulation while drawing only 15uA of input current, making it particularly suitable for applications with stringent battery life requirements. The product is available in SOT23, SOT23-5, and SOT-89-3 packages.
