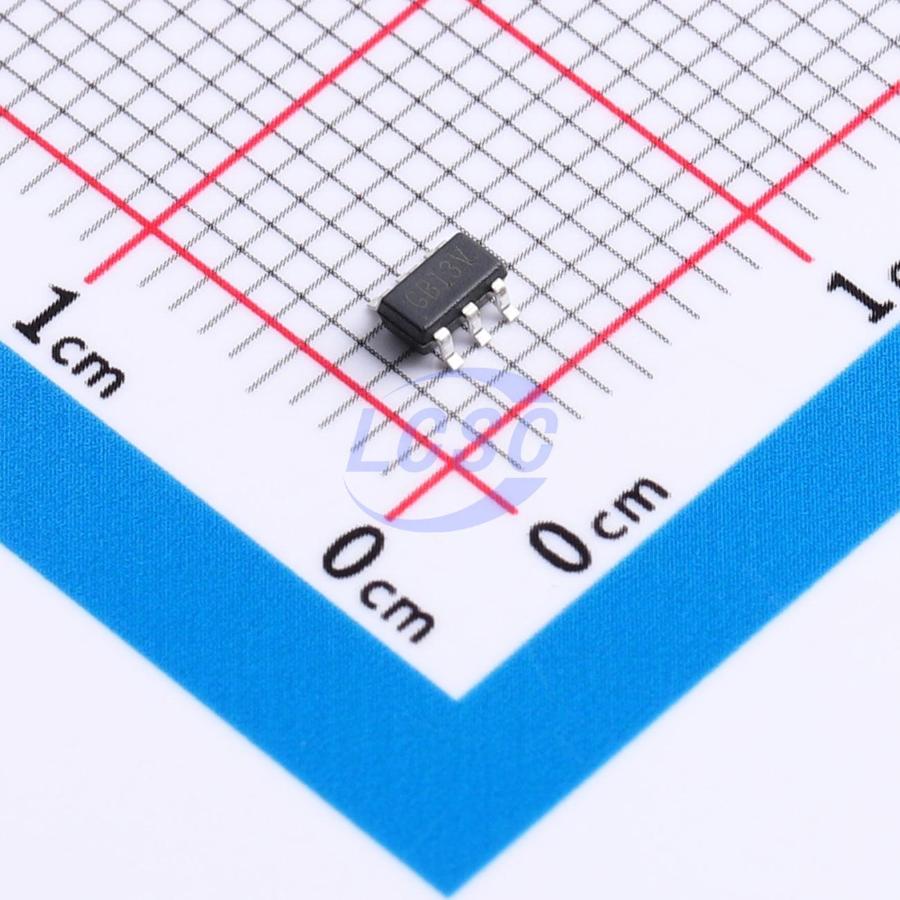

MSKSEMI

MS2359DJ-LF-Z

1.2MHz~1.6MHz Step-down type Adjustable 1.2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators

SOT-23-6RoHSActive

Manufacturer: MSKSEMI
Manufacturer part #: MS2359DJ-LF-Z
Store part #: C49375222
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,510 in stock

#C49375222

Stock & price checked 39 h ago

Quantity	Unit price	Pack price
5+	₹25.41	₹127.05
50+	₹19.94	₹997.00
150+	₹17.60	₹2,640.00
500+	₹14.66	₹7,330.00
3,000+	₹13.36	₹40,080.00
6,000+	₹12.58	₹75,480.00

Quantity (min 5, multiples of 5)

5 × ₹25.41

₹127.05

excl. GST

₹149.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

MS2359DJ-LF-Z

₹127.05 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Number of Outputs: 1
Frequency - Switching: 1.2MHz~1.6MHz
Function: Step-down type
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4V~30V
Switch tube (built-in/external): Built-in
Output Current: 1.2A
Quiescent Current: 400uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1 g

Overview

MS2359DJ-LF-Z is a high-frequency, synchronous rectification, step-down switch-mode converter with integrated power MOSFETs. It delivers a compact solution over a wide input supply range, capable of 1.5A peak output current with excellent load and line regulation. The device requires minimal standard external components and is housed in a space-saving SOT-23-6 package.
