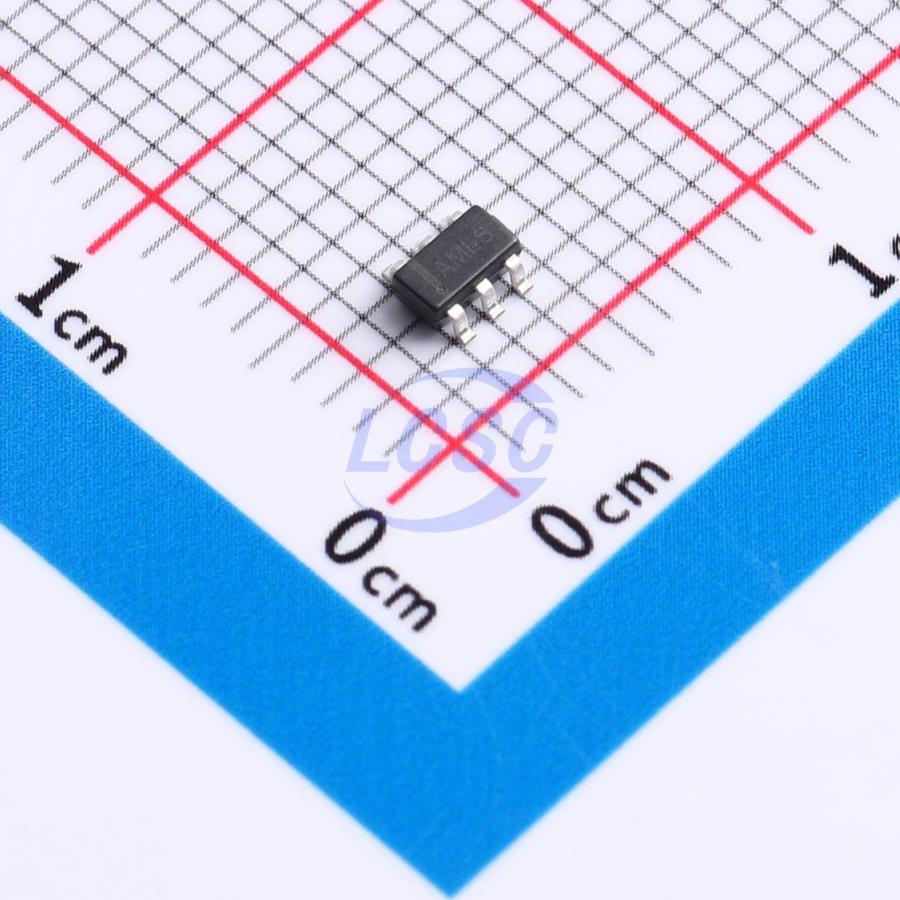

MSKSEMIDatasheet (PDF)
MS2451DJ-LF-Z
2MHz Step-down type Adjustable 600mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MS2451DJ-LF-Z
- Store part #
- C49375220
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C49375220
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹116.79 | ₹116.79 |
| 10+ | ₹105.52 | ₹1,055.20 |
| 30+ | ₹99.24 | ₹2,977.20 |
| 100+ | ₹92.31 | ₹9,231.00 |
| 500+ | ₹89.06 | ₹44,530.00 |
| 1,000+ | ₹87.75 | ₹87,750.00 |
1 × ₹116.79
₹116.79
excl. GST
₹137.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MS2451DJ-LF-Z
₹116.79 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 2MHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~60V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 600mA
- Quiescent Current
- 700uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
MS2451DJ-LF-Z is a monolithic step-down switching mode converter with an integrated power MOSFET. The device delivers up to 600mA output current over a wide input supply range with excellent load and line regulation. Under light-load conditions, the regulator operates at reduced frequency to maintain high efficiency and low output ripple. The minimum input voltage is as low as 4.5V, with a maximum of 60V, and it can withstand higher transient voltages. Fault protection features include cycle-by-cycle current limiting and thermal shutdown. The MS2451DJ-LF-Z requires minimal standard external components and is available in a SOT23-6 package.
Applications
- Electricity meters
- Distributed power systems
- Battery chargers
- Pre-regulators for linear regulators
- WLED drivers
Key features
- Wide 4.5V to 60V operating input range
- 600mA continuous output current
- 2MHz switching frequency
- Built-in overcurrent limiting
- Internal soft-start
- 900mΩ low RDS(ON) internal power MOSFET
- Output voltage adjustable from 0.795V
- Integrated internal compensation
- Thermal shutdown protection
- Short-circuit protection
- SOT-23-6 package
- Operating temperature range -40°C to +85°C
