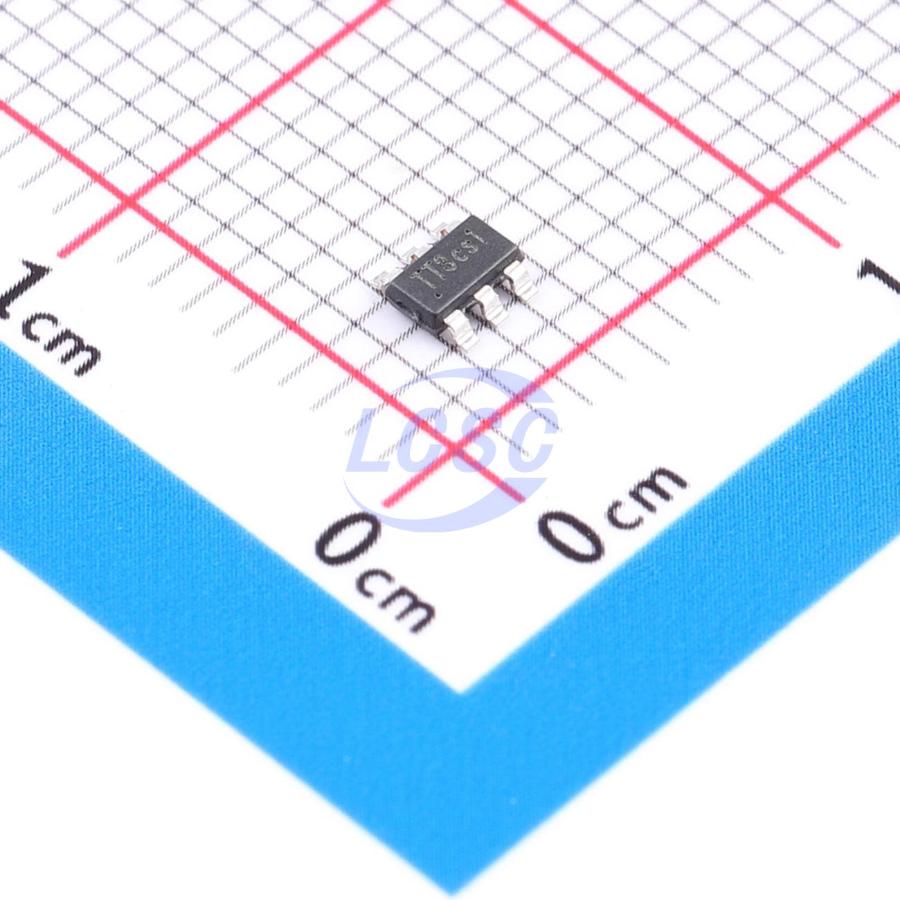

MS6327
Step-down type 600kHz Adjustable 3A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MS6327
- Store part #
- C49375288
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,380 in stock
#C49375288
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.80 | ₹134.00 |
| 50+ | ₹23.38 | ₹1,169.00 |
| 150+ | ₹21.92 | ₹3,288.00 |
| 500+ | ₹20.08 | ₹10,040.00 |
| 3,000+ | ₹19.28 | ₹57,840.00 |
| 6,000+ | ₹18.79 | ₹1,12,740.00 |
5 × ₹26.80
₹134.00
excl. GST
₹158.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MS6327
₹134.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Number of Outputs
- 1
- Function
- Step-down type
- Frequency - Switching
- 600kHz
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Quiescent Current
- 300uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
MS6327 is a high-efficiency, 600kHz switching frequency, synchronous step-down DC-DC converter with constant on-time control mode, capable of delivering up to 3A output current. The device integrates both the main switch and synchronous switch with ultra-low R_DS(ON), helping to minimize conduction losses. The 600kHz switching frequency enables low output voltage ripple and reduces the required external inductor and capacitor sizes. Its constant on-time architecture is designed to provide fast transient response for step-down applications with high input voltages. The MS6327 requires a minimal number of standard external components and is available in a RoHS-compliant 6-pin SOT23-6 package.
Applications
- Digital set-top boxes
- Flat-panel TVs and monitors
- Notebook computers
- Wireless and DSL modems
Key features
- 70mΩ/35mΩ low R_DS(ON) internal FETs
- High-efficiency synchronous operation mode
- Wide input voltage range: 3.5V to 18V
- Adjustable output voltage from 0.765V
- 600kHz switching frequency
- Up to 3.5A output current at 1.2V output voltage
- Constant on-time control for fast transient response
- Power-saving mode at light load
- Integrated internal compensation
- Stable operation with low-ESR ceramic output capacitors
- Overcurrent protection with hiccup mode
- Thermal shutdown protection
- Inrush current limiting and soft-start
- Built-in input overvoltage protection
- SOT23-6 package
