MSKSEMIDatasheet (PDF)

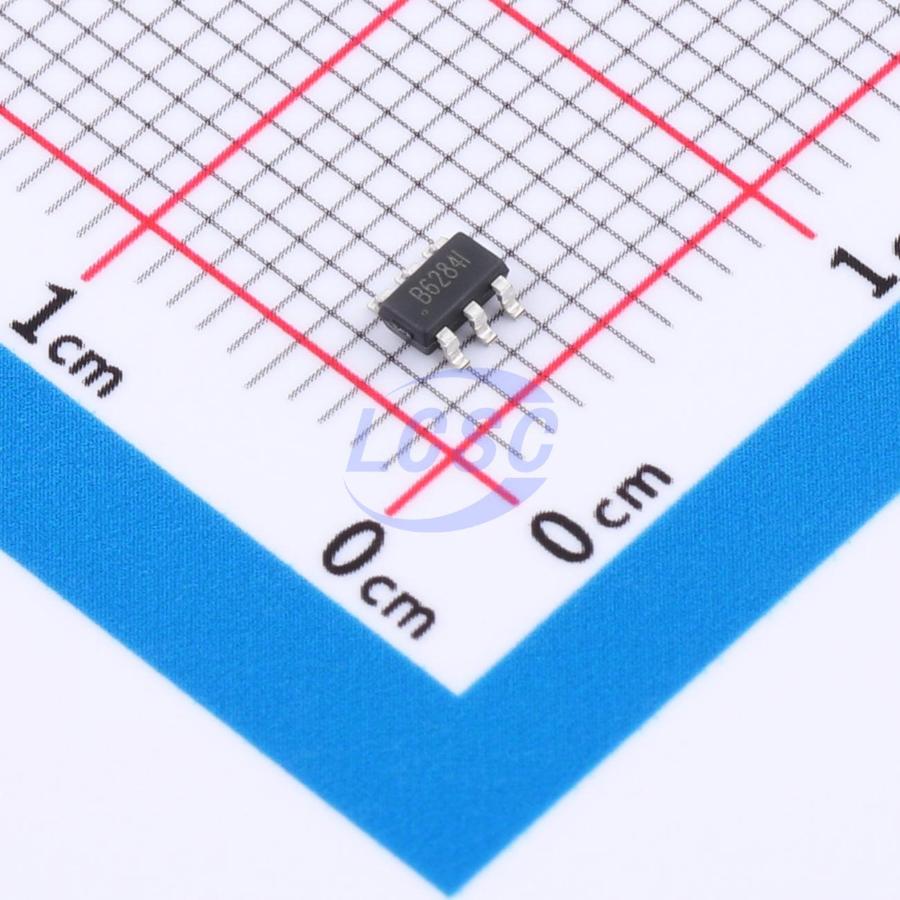

MS7208ABC
1.2MHz Boost Adjustable 28V 4A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MS7208ABC
- Store part #
- C49375258
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,335 in stock
#C49375258
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.02 | ₹130.10 |
| 50+ | ₹20.56 | ₹1,028.00 |
| 150+ | ₹18.22 | ₹2,733.00 |
| 500+ | ₹15.29 | ₹7,645.00 |
| 3,000+ | ₹14.00 | ₹42,000.00 |
| 6,000+ | ₹13.22 | ₹79,320.00 |
5 × ₹26.02
₹130.10
excl. GST
₹153.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MS7208ABC
₹130.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Number of Outputs
- 1
- Frequency - Switching
- 1.2MHz
- Function
- Boost
- Features
- Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.5V~24V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 28V
- Output Current
- 4A
- Quiescent Current
- 70uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
MS7208ABC is a constant-frequency, current-mode controlled six-pin SOT-23 boost converter designed for small, low-power applications. The device operates at a switching frequency of 1.2MHz, allowing the use of miniature, low-cost capacitors and inductors with a height of 2mm or less. The internal soft-start function reduces inrush current and extends battery life. MS7208ABC features automatic switchover to pulse frequency modulation (PFM) mode under light-load conditions. The device incorporates undervoltage lockout, current limiting, and thermal overload protection to prevent damage during output overload conditions. MS7208ABC is available in a compact six-pin SOT-23 package.
Applications
- Battery-powered devices
- Set-top boxes
- LCD bias power supplies
- DSL and cable modems and routers
- Network cards powered by PCI or PCI Express slots
Key features
- Integrated 80mΩ power MOSFET
- 2.5V to 24V input voltage range
- 1.2MHz fixed switching frequency
- Internal 4A switch current limit
- Adjustable output voltage
- Internal compensation
- Output voltage up to 28V
- Automatic pulse frequency modulation mode at light load
- Up to 93% efficiency
- 6-pin SOT23-6 package
