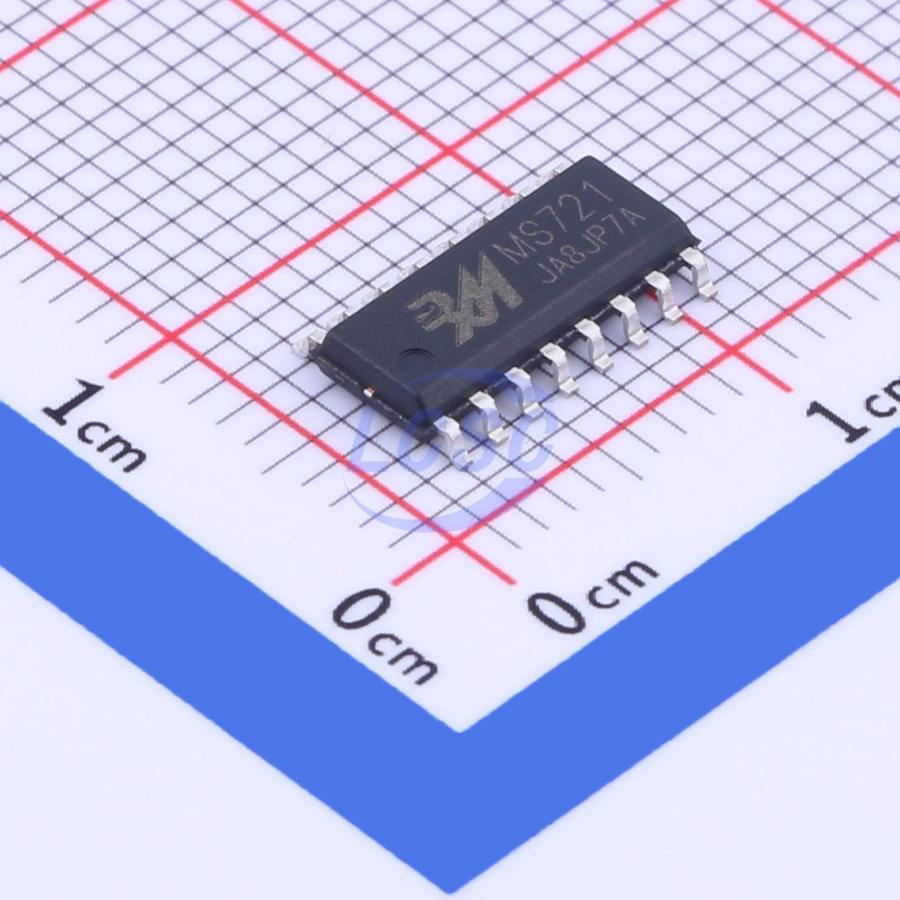

MS721
UART -40℃~+100℃ 9.6Kbps SOP-16 Specialized RoHS
Instrument Bus (M-Bus) Slave Transceiver Circuit
- Manufacturer
- Hangzhou Ruimeng Tech
- Manufacturer part #
- MS721
- Store part #
- C1509069
- Package / case
- SOP-16
- Category
- Specialized
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,105 in stock
#C1509069
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹126.05 | ₹126.05 |
| 10+ | ₹104.60 | ₹1,046.00 |
| 30+ | ₹92.87 | ₹2,786.10 |
| 100+ | ₹79.53 | ₹7,953.00 |
| 500+ | ₹68.17 | ₹34,085.00 |
| 1,000+ | ₹65.46 | ₹65,460.00 |
1 × ₹126.05
₹126.05
excl. GST
₹148.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
MS721
₹126.05 for 1 + GST
Specifications
- Interface
- UART
- Voltage Rating
- 10.8V~42V
- Features
- Fail-safe;Interrupt generation
- Operating Temperature
- -40℃~+100℃
- Supply Current
- 650uA
- Data Rate
- 9.6Kbps
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.167 g
Overview
MS721 is a monolithic transceiver circuit developed for M-Bus standard (EN1434-3) applications. The MS721 interface circuit accommodates the voltage difference between slave and master devices, with no polarity requirement for bus connections. The circuit is powered by the master through the bus, eliminating additional load on the slave battery, while integrating a power failure detection function. When operating as a receiver, it incorporates a built-in dynamic level detection circuit; when operating as a transmitter, it features a built-in programmable current source. A 3.3V DC voltage regulator is integrated, which shuts down after a delay following a bus fault.
Applications
- MBus slave interface circuit
Key features
- Compliant with EN1434-3 standard (slave)
- Receive logic level with dynamic level detection
- Adjustable receive current via resistor
- Polarity-free connection
- Power-fail protection
- Module voltage switching
- 3.3V regulated supply output
- Remote power supply
- Half-duplex UART protocol up to 9600 baud
- Slave power supply options: bus-powered via VDD output pin; bus-powered or backup battery-powered via VDD output pin; battery-powered with bus active only during data transfer
