MICROCHIPDatasheet (PDF)

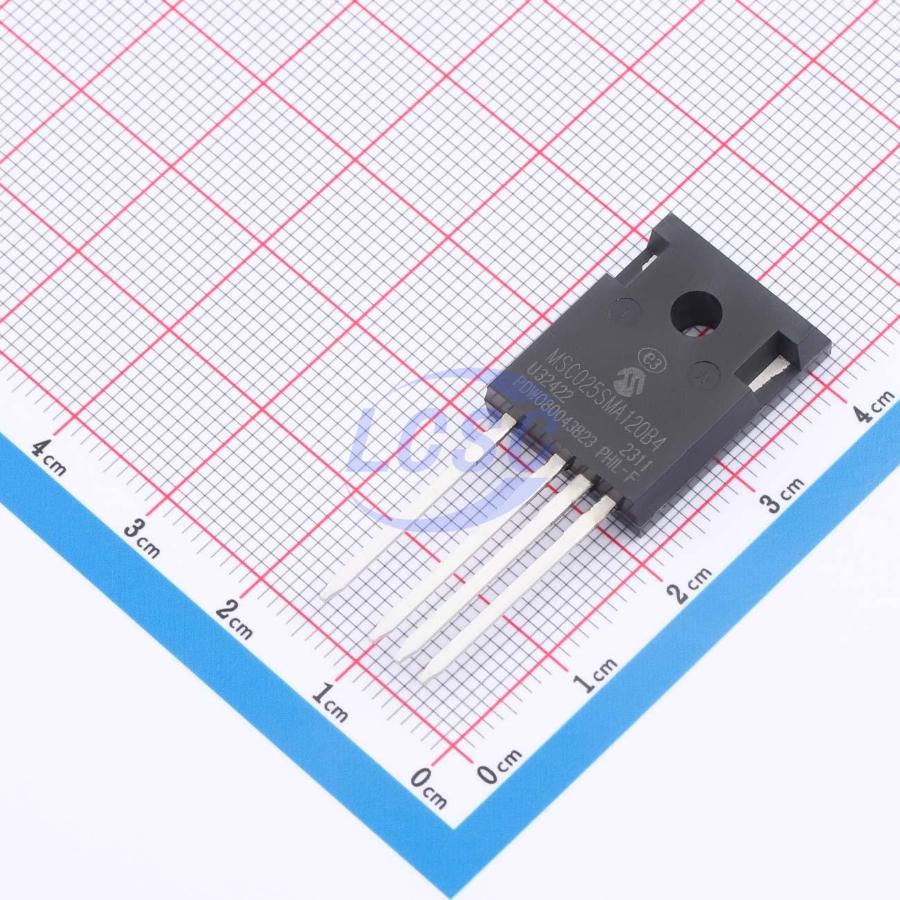

MSC025SMA120B4
N-Channel 1.2kV 103A 500W Through Hole TO-247-4
TO-247-4ROHS3 CompliantActive
SICFET N-CH 1.2kV 103A TO-247-4
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MSC025SMA120B4
- Store part #
- C3290749
- Package / case
- TO-247-4
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24 in stock
#C3290749
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹2,265.54 | ₹2,265.54 |
1 × ₹2,265.54
₹2,265.54
excl. GST
₹2,673.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
MSC025SMA120B4
₹2,265.54 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 1.2kV
- Output Capacitance(Coss)
- 270pF
- Current - Continuous Drain(Id)
- 103A
- Ciss-Input Capacitance
- 3.02nF
- Pd - Power Dissipation
- 500W
- Reverse Transfer Capacitance (Crss)
- 25pF
- RDS(on)
- 31mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 232nC
- Gate Threshold Voltage (Vgs(th))
- 2.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 9.733 g
Overview
The silicon carbide (SiC) power MOSFET product line increases the performance over silicon MOSFET and silicon IGBT solutions while lowering the total cost of ownership for high-voltage applications. The MSC025SMA120B device is a 1200 V, 25 mΩ SiC MOSFET in a TO-247 package.
Applications
- PV inverter, converter, and industrial motor drives
- Smart grid transmission and distribution
- Induction heating and welding
- H/EV powertrain and EV charger
- Power supply and distribution
Key features
- Low capacitances and low gate charge
- Fast switching speed due to low internal gate resistance (ESR)
- Stable operation at high junction temperature, TJ(max)=175 °C
- Fast and reliable body diode
- Superior avalanche ruggedness
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP90N120CTK#C22466827Siliup · TO-247-4L | Siliup | TO-247-4L | 138 | ₹838.42 · 138 in stock | View |
 | SC013N120TCL-HXY#C50346530HXY MOSFET · TO-247-4L | HXY MOSFET | TO-247-4L | 29 | ₹1,989.71 · 29 in stock | View |
 | IMZA120R014M1HXKSA1-HXY#C50346532HXY MOSFET · TO-247-4L | HXY MOSFET | TO-247-4L | 62 | ₹2,726.02 · 62 in stock | View |
 | SP80N120CTK#C45351240Siliup · TO-247-4L | Siliup | TO-247-4L | 120 | ₹1,065.20 · 120 in stock | View |
 | SG2M020170HJ#C42456099Sichainsemi · TO-247-4L | Sichainsemi | TO-247-4L | 282 | ₹1,601.40 · 282 in stock | View |
