MSKSEMIDatasheet (PDF)

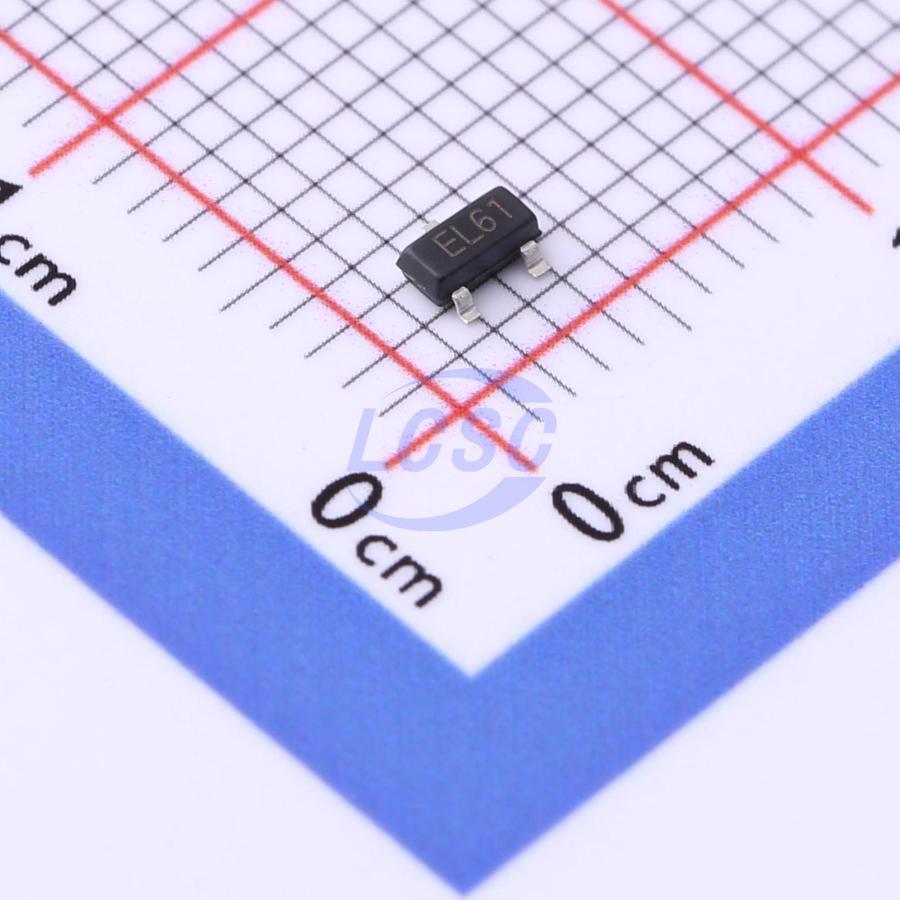

MSESDA6V1L
nan
SOT-23RoHSActive
ESD DIODE 5.25VWM SOT-23
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSESDA6V1L
- Store part #
- C3029027
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,710 in stock
#C3029027
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.71 | ₹67.10 |
| 100+ | ₹5.27 | ₹527.00 |
| 300+ | ₹4.55 | ₹1,365.00 |
| 3,000+ | ₹3.82 | ₹11,460.00 |
| 6,000+ | ₹3.40 | ₹20,400.00 |
| 9,000+ | ₹3.18 | ₹28,620.00 |
10 × ₹6.71
₹67.10
excl. GST
₹79.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MSESDA6V1L
₹67.10 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Power Dissipation (Ppp)
- 300W@8/20us
- Voltage - Breakdown
- 7.2V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5.25V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.34 g
Overview
Applications
- Computers
- Printers
- Communication systems
- It is particularly recommended for the RS232 I/O port protection where the line interface withstands only with 2kV ESD surges.
Key features
- 2 Unidirectional Transil functions
- Low leakage current: IRM max< 1 μA at VR M
- 300W peak pulse power (8/20μs)
- Complies with the following standards
- IEC61000 - 4 - 2
- Level 4 15 kV (air discharge) 8 kV(contact discharge)
- MIL STD 883E - Method 3015 - 7 Class 3 25 kV HBM (Human Body Model)
