MSKSEMIDatasheet (PDF)

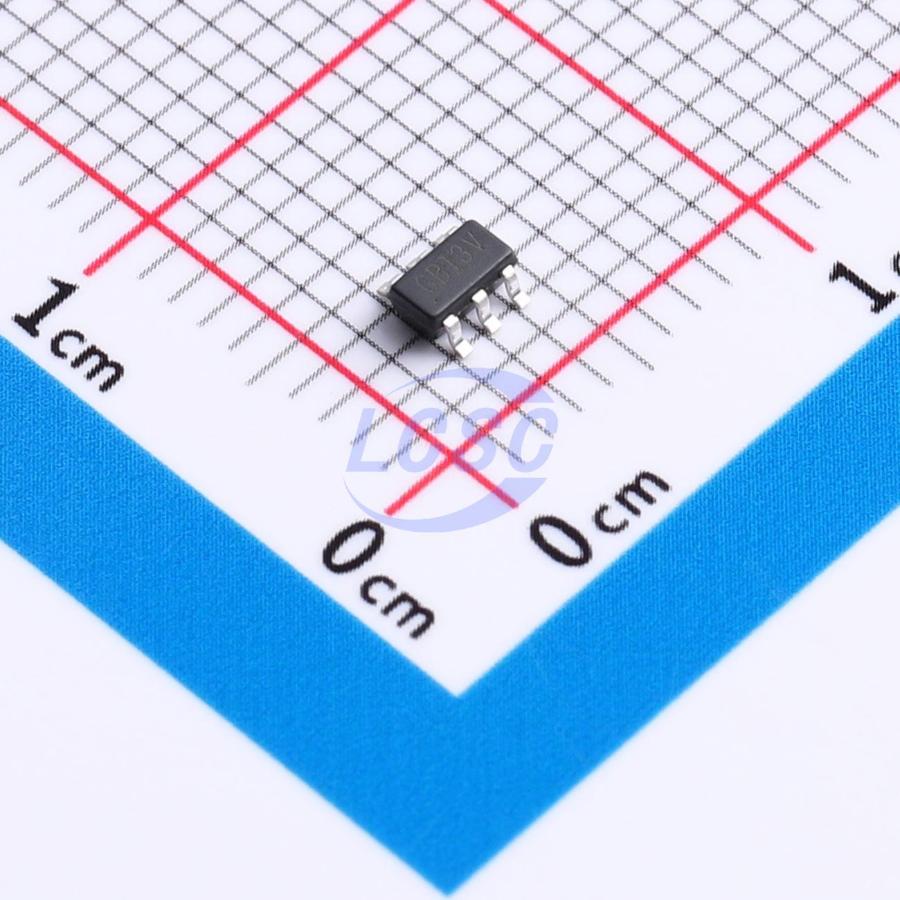

MSEUP3458VIR1
Step-down type 1.4MHz Adjustable 1.2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSEUP3458VIR1
- Store part #
- C49375221
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,380 in stock
#C49375221
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.94 | ₹99.70 |
| 50+ | ₹15.77 | ₹788.50 |
| 150+ | ₹13.68 | ₹2,052.00 |
| 500+ | ₹12.12 | ₹6,060.00 |
| 3,000+ | ₹10.88 | ₹32,640.00 |
| 6,000+ | ₹10.24 | ₹61,440.00 |
5 × ₹19.94
₹99.70
excl. GST
₹117.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MSEUP3458VIR1
₹99.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Number of Outputs
- 1
- Function
- Step-down type
- Frequency - Switching
- 1.4MHz
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4V~30V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.2A
- Quiescent Current
- 400uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
MSEUP3458VIR1 is a high-frequency, synchronous rectification, step-down switching mode converter with integrated power MOSFETs. It delivers 1.5A peak output current over a wide input supply range with excellent load and line regulation, achieving a very compact solution. The device requires minimal standard external components and comes in a space-saving SOT-23-6 package.
Applications
- CCTV cameras
- Flat panel TVs and monitors
- Battery chargers
- Distributed power systems
Key features
- Wide 4V to 30V input voltage range
- 1.2A continuous output current
- 1.4MHz switching frequency
- Short-circuit protection with hiccup mode
- Built-in overcurrent limiting
- Built-in overvoltage protection
- Forced PWM mode
- Internal soft-start
- 200mΩ/150mΩ low RDS(ON) internal power MOSFETs
- Output voltage adjustable from 0.8V
- No Schottky diode required
- Integrated internal compensation
- Thermal shutdown
- SOT23-6 package
- -40°C to +85°C temperature range
