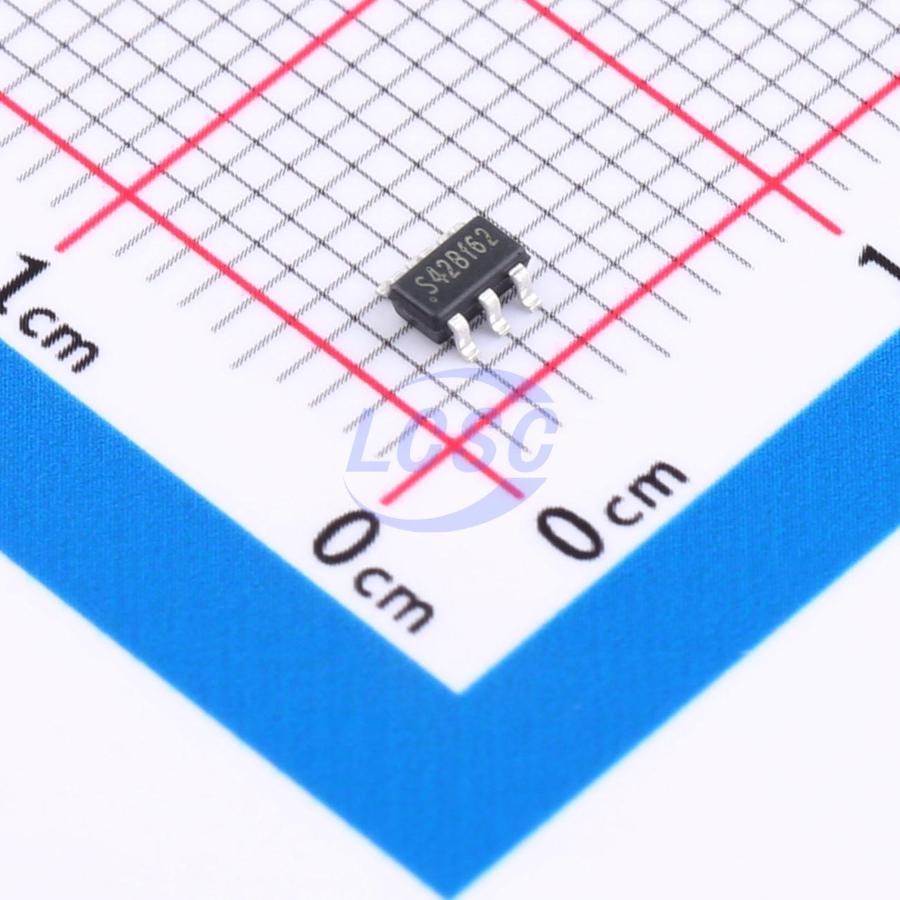

MSKSEMI

MSMP1470BGJ-Z

Step-down type 600kHz Adjustable 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators

SOT-23-6RoHSActive

Manufacturer: MSKSEMI
Manufacturer part #: MSMP1470BGJ-Z
Store part #: C49208551
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,425 in stock

#C49208551

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
5+	₹27.80	₹139.00
50+	₹21.79	₹1,089.50
150+	₹19.21	₹2,881.50
500+	₹16.00	₹8,000.00
3,000+	₹14.57	₹43,710.00
6,000+	₹13.71	₹82,260.00

Quantity (min 5, multiples of 5)

5 × ₹27.80

₹139.00

excl. GST

₹164.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

MSMP1470BGJ-Z

₹139.00 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Number of Outputs: 1
Function: Step-down type
Frequency - Switching: 600kHz
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection;Light load efficient mode
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3.5V~18V
Switch tube (built-in/external): Built-in
Output Current: 2A
Quiescent Current: 400uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.043 g

Overview

MSMP1470BGJ-Z is a fully integrated, high-efficiency 2.0A synchronous rectified step-down converter. The device operates with high efficiency across a wide output current load range. It offers two operating modes: PWM control and PFM mode switching control, achieving high efficiency over a wider load range. The MSMP1470BGJ-Z requires a minimum number of readily available standard external components and is available in a RoHS-compliant 6-pin SOT23-6 package.

Applications

Distributed power systems
Digital set-top boxes
Flat panel TVs and monitors
Notebook computers
Wireless and DSL modems

Key features

High efficiency: up to 95% at 5V output
600kHz switching frequency operation
2.0A output current
No Schottky diode required
3.5V to 18V input voltage range
0.8V reference voltage
Slope compensation current mode control for excellent line and load transient response
Integrated internal compensation for stable operation with low ESR ceramic output capacitors
Overcurrent protection with hiccup mode
Input overvoltage protection
Thermal shutdown protection
Inrush current limiting and soft-start
SOT23-6 package
