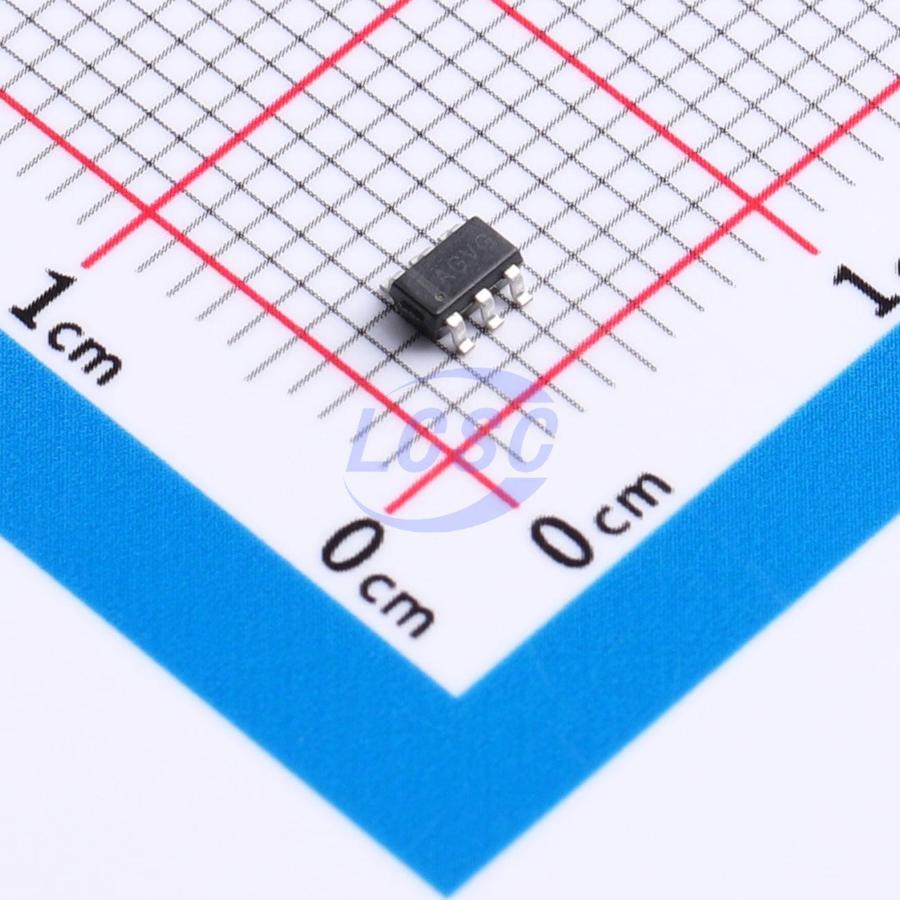

MSMP2456GJ-Z
2MHz Step-down type Adjustable 600mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSMP2456GJ-Z
- Store part #
- C49375217
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,183 in stock
#C49375217
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.41 | ₹85.41 |
| 10+ | ₹75.73 | ₹757.30 |
| 30+ | ₹71.01 | ₹2,130.30 |
| 100+ | ₹66.27 | ₹6,627.00 |
| 500+ | ₹63.25 | ₹31,625.00 |
| 1,000+ | ₹61.74 | ₹61,740.00 |
1 × ₹85.41
₹85.41
excl. GST
₹100.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MSMP2456GJ-Z
₹85.41 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 2MHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~60V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 600mA
- Quiescent Current
- 700uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
The MSMP2456GJ-Z is a monolithic, step-down switching mode converter with an integrated power MOSFET. It delivers up to 600mA output current over a wide input supply voltage range with excellent load and line regulation. Under light-load conditions, the regulator operates at reduced frequency to maintain high efficiency and low output ripple. The input voltage range spans from as low as 4.5V up to 60V, with the ability to withstand higher transient voltages. Fault protection features include cycle-by-cycle current limiting and thermal shutdown. The MSMP2456GJ-Z requires minimal external components and is available in a SOT23-6 package.
Applications
- Electricity meters
- Distributed power systems
- Battery chargers
- Pre-regulators for linear regulators
- WLED drivers
Key features
- 4.5V to 60V wide input voltage range
- 600mA continuous output current
- 2MHz switching frequency
- Built-in overcurrent limiting
- Internal soft-start
- 900mΩ low RDS(ON) internal power MOSFET
- Output voltage adjustable from 0.795V
- Integrated internal compensation
- Thermal shutdown protection
- Short-circuit protection
- SOT-23-6 package
- -40°C to +85°C operating temperature range
