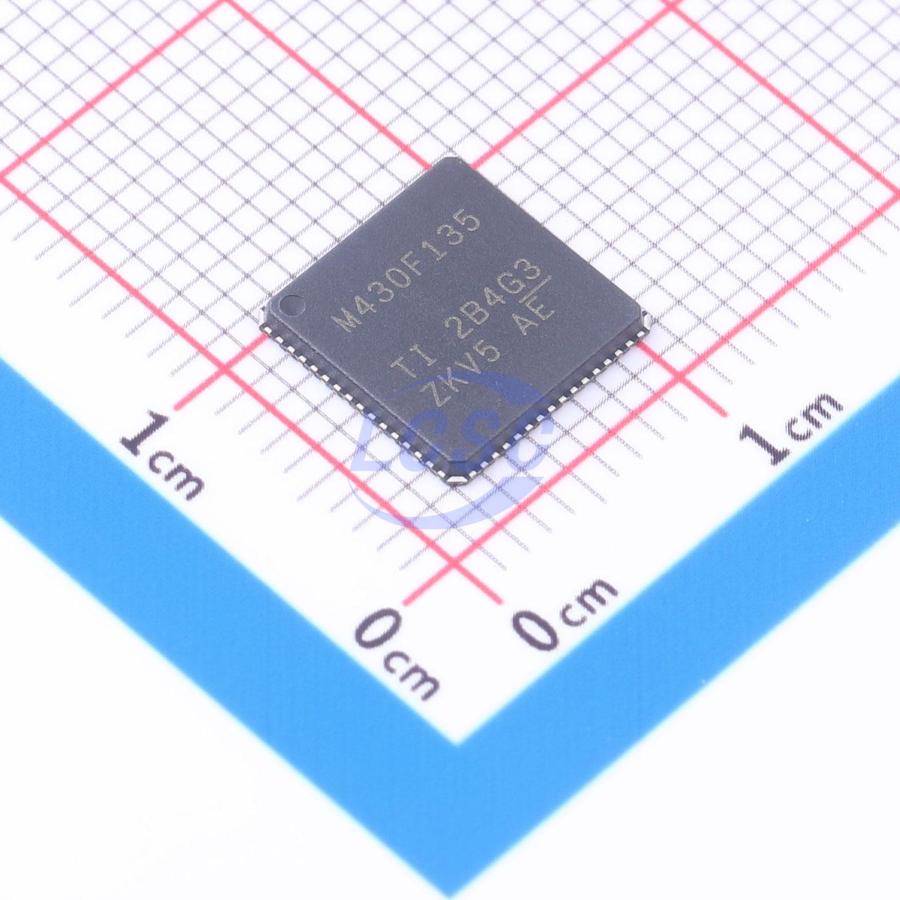

MSP430F135IRTDR

The ultra-low-power microcontrollers (MCUs) of the MSP430 series are equipped with different peripheral sets to meet the needs of various applications. The architecture can be used in conjunction with five low-power modes and is optimized for extending battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and a constant generator that helps achieve maximum coding efficiency. The digitally controlled oscillator (DCO) can wake up from low-power mode to active mode in less than 6µs. The MSP430F13x, MSP430F14x, and MSP430F14x1 MCUs support two built-in 16-bit timers, a fast 12-bit ADC (on MSP430F13x and MSP430F14x devices), one USART (on MSP430F13x devices) or two USARTs (on MSP430F14x and MSP430F14x1 devices), and 48 I/O pins. A hardware multiplier improves performance and provides a device family solution with a wide range of models and code and hardware compatibility.

Applications

• Sensor systems
• Industrial control
• Handheld meters

Key features

• Low supply voltage range: 1.8V to 3.6V
• Ultra-low power consumption:
• Active mode: 280µA (at 1MHz frequency and 2.2V voltage)
• Standby mode: 1.6µA
• Off mode (RAM retention): 0.1µA
• Five power-saving modes
• Wake-up from standby mode in less than 6µs
• 16-bit reduced instruction set (RISC) architecture with 125ns instruction cycle time
• 12-bit analog-to-digital converter (ADC) with internal reference, sample-and-hold, and auto-scan capabilities
• 16-bit Timer_B with seven capture/compare and shadow registers
• 16-bit Timer_A with three capture/compare registers
• On-chip comparator
• Serial in-system programming without external programming voltage
• Programmable code protection via security fuse
• Serial communication interface (USART) as asynchronous UART or synchronous SPI interface
• Two USARTs (USART0, USART1) on MSP430F14x and MSP430F14x1 devices
• One USART (USART0) on MSP430F13x devices
