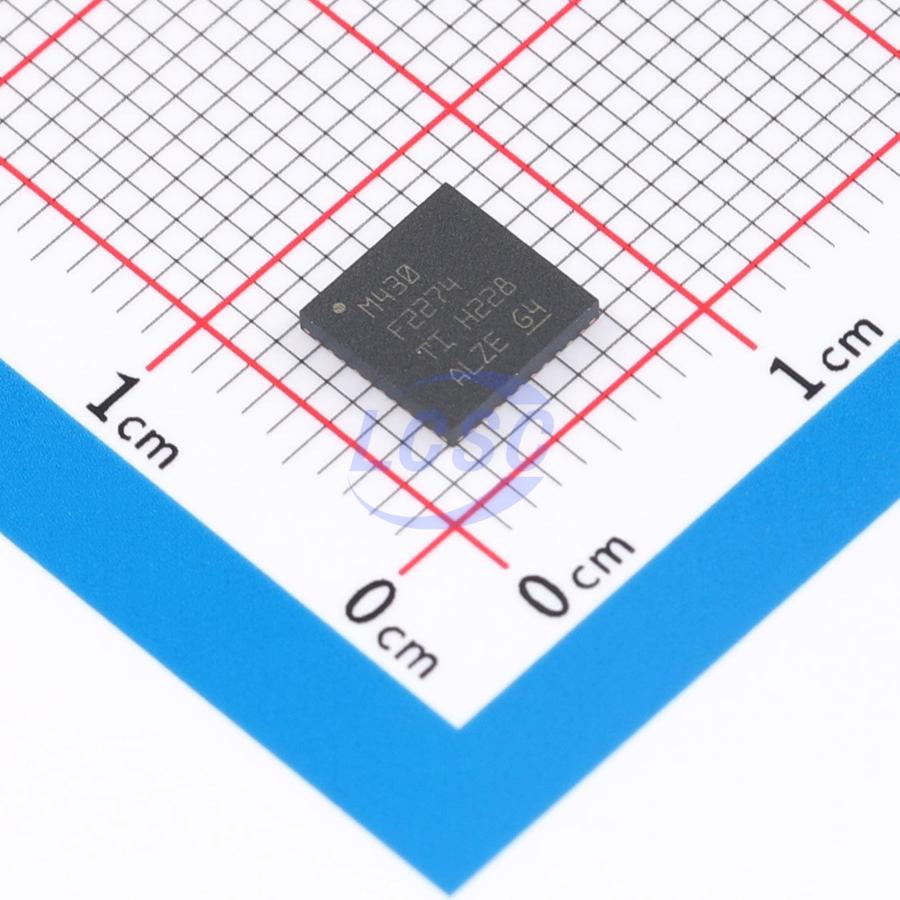

MSP430F2274IRHAT

The Texas Instruments MSP430™ family of ultra-low-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs. The MSP430F22x4/MSP430F22x2 series is an ultra-low-power mixed signal microcontroller with two built-in 16-bit timers, a universal serial communication interface, 10-bit A/D converter with integrated reference and data transfer controller (DTC), two general-purpose operational amplifiers in the MSP430F22x4 devices, and 32 I/O pins. Typical applications include sensor systems that capture analog signals, convert them to digital values, and then process the data for display or for transmission to a host system. Stand-alone radio-frequency (RF) sensor front ends are another area of application.

Applications

• sensor systems that capture analog signals, convert them to digital values, and then process the data for display or for transmission to a host system
• Stand-alone radio-frequency (RF) sensor front ends

Key features

• Low Supply Voltage Range: 1.8 V to 3.6 V
• Ultra-Low Power Consumption – Active Mode: 270 μA at 1 MHz, 2.2 V – Standby Mode: 0.7 μA – Off Mode (RAM Retention): 0.1 μA
• Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs
• 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
• Basic Clock Module Configurations – Internal Frequencies up to 16 MHz With Four Calibrated Frequencies to ±1% – Internal Very-Low-Power Low-Frequency Oscillator – 32-kHz Crystal High-Frequency (HF) Crystal up to 16 MHz – Resonator – External Digital Clock Source – External Resistor
• 16-Bit Timer_A With Three Capture/Compare Registers
• 16-Bit Timer_B With Three Capture/Compare Registers
• Universal Serial Communication Interface Enhanced UART Supporting Auto-Baudrate Detection (LIN) IrDA Encoder and Decoder – Synchronous SPI – I²C
• 10-Bit 200-ksps Analog-to-Digital (A/D) Converter With Internal Reference, Sampleand-Hold, Autoscan, and Data Transfer Controller
• Two Configurable Operational Amplifiers
• Brownout Detector
• Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse
• Bootstrap Loader
• On-Chip Emulation Module
