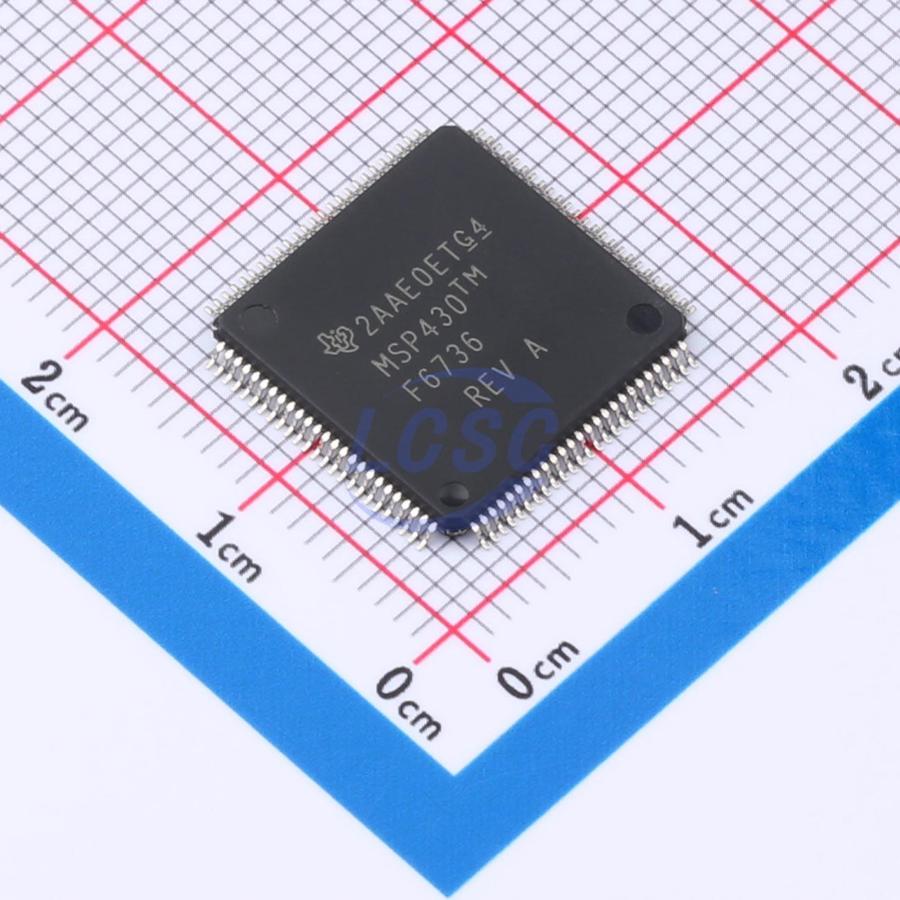

MSP430F6736IPZR

The ultra-low-power MSP family of microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with extensive low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the device to wake up from low-power modes to active mode in 3 μs (typical). The MSP430F673x and MSP430F672x microcontrollers feature up to three high-performance 24-bit sigma-delta ADCs, a 10-bit ADC, four enhanced universal serial communication interfaces (three eUSCI_A modules and one eUSCI_B module), four 16-bit timers, a hardware multiplier, a DMA module, an RTC module with alarm capabilities, an LCD driver with integrated contrast control, an auxiliary supply system, and up to 72 I/O pins in the 100-pin devices and 52 I/O pins in the 80-pin devices.

Applications

• 2-Wire Single-Phase Metering
• 3-Wire Single-Phase Metering
• Tamper-Resistant Meters

Key features

• Low Supply Voltage Range: 3.6 V Down to 1.8 V
• Ultra-Low Power Consumption
• Active Mode (AM): All System Clocks Active 265 μA/MHz at 8 MHz, 3.0 V, Flash Program Execution (Typical); 140 μA/MHz at 8 MHz, 3.0 V, RAM Program Execution (Typical)
• Standby Mode (LPM3): Real-Time Clock (RTC) With Crystal, Watchdog, and Supply Supervisor Operational, Full RAM Retention, Fast Wakeup: 1.7 μA at 2.2 V, 2.5 μA at 3.0 V (Typical)
• Off Mode (LPM4): Full RAM Retention, Supply Supervisor Operational, Fast Wakeup: 1.6 μA at 3.0 V (Typical)
• Shutdown RTC Mode (LPM3.5): Shutdown Mode, Active Real-Time Clock (RTC) With Crystal: 1.24 μA at 3.0 V (Typical)
• Shutdown Mode (LPM4.5): 0.78 μA at 3.0 V (Typical)
• Wake up From Standby Mode in 3 μs (Typical)
• 16-Bit RISC Architecture, Extended Memory, up to 25-MHz System Clock
• Flexible Power Management System
• Fully Integrated LDO With Programmable Regulated Core Supply Voltage
• Supply Voltage Supervision, Monitoring, and Brownout
• System Operation From up to Two Auxiliary Power Supplies
• Unified Clock System
• FLL Control Loop for Frequency Stabilization
• Low-Power Low-Frequency Internal Clock Source (VLO)
• Low-Frequency Trimmed Internal Reference Source (REFO)
• 32-kHz Crystals (XT1)
• One 16-Bit Timer With Three Capture/Compare Registers
• Three 16-Bit Timers With Two Capture/Compare Registers Each
• Enhanced Universal Serial Communication Interfaces
• eUSCI_A0, eUSCI_A1, and eUSCI_A2
• Enhanced UART Supports Automatic BaudRate Detection
• IrDA Encoder and Decoder
• Synchronous SPI
• eUSCI_B0
• I2C With Multiple Slave Addressing
• Synchronous SPI
• Password-Protected RTC With Crystal Offset Calibration and Temperature Compensation
• Separate Voltage Supply for Backup Subsystem
• 32-kHz Low-Frequency Oscillator (XT1)
• Real-Time Clock
• Backup Memory (4x16 Bits)
• Three 24-Bit Sigma-Delta Analog-to-Digital Converters (ADCs) With Differential PGA Inputs
• Integrated LCD Driver With Contrast Control for up to 320 Segments in 8-Mux Mode
• Hardware Multiplier Supports 32-Bit Operations
• 10-Bit 200-ksps ADC
• Internal Reference
• Sample-and-Hold, Autoscan Feature
• Up to Six External Channels and Two Internal Channels, Including Temperature Sensor
• 3-Channel Internal DMA
• Serial Onboard Programming, No External Programming Voltage Needed
• Available in 100-Pin and 80-Pin LQFP Packages
