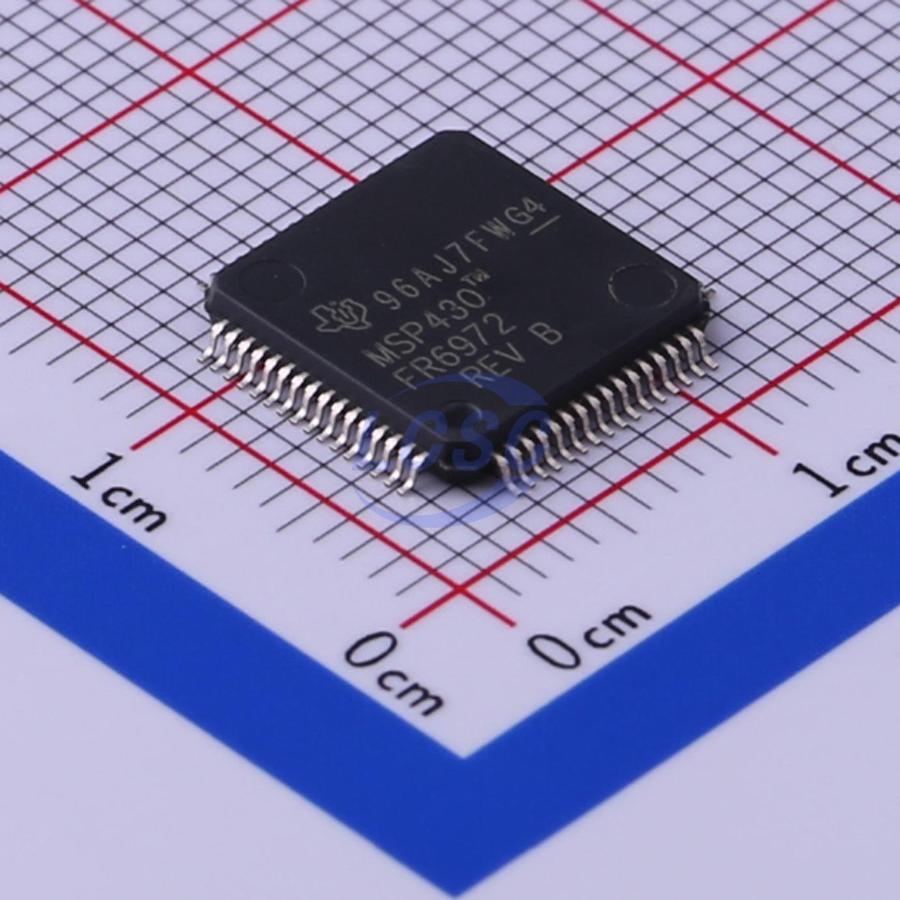

MSP430FR6972IPMR

This ultra-low-power MSP430FRxx FRAM microcontroller family consists of several devices featuring embedded nonvolatile FRAM, a 16-bit CPU, and different sets of peripherals targeted for various applications. The architecture, FRAM, and peripherals, combined with seven low-power modes, are optimized to achieve extended battery life in portable and wireless sensing applications. FRAM is a new nonvolatile memory that combines the speed, flexibility, and endurance of SRAM with the stability and reliability of flash, all at lower total power consumption.

Applications

• Heat Cost Allocators
• Portable Medical Equipment
• Utility Meters – Electricity, Water, and Gas
• Sensor Management
• Thermostats
• Weigh Scales

Key features

• Embedded Microcontroller 16-Bit RISC Architecture up to 16-MHz Clock Wide Supply Voltage Range From 3.6 V Down to 1.8 V (Minimum Supply Voltage is Restricted by SVS Levels, See the SVS Specifications)
• Optimized Ultra-Low-Power Modes
• Active Mode: Approximately 100 μA/MHz
• Standby (LPM3 With VLO): 0.4 μA (Typical)
• Real-Time Clock (RTC) (LPM3.5): 0.35 μA (Typical)
• Shutdown (LPM4.5): 0.04 μA (Typical)
• Ultra-Low-Power Ferroelectric RAM (FRAM)
• Up to 64KB of Nonvolatile Memory
• Ultra-Low-Power Writes
• Fast Write at 125 ns per Word (64KB in 4 ms)
• Unified Memory = Program, Data, and Storage in One Single Space
• 10^15 Write Cycle Endurance
• Radiation Resistant and Nonmagnetic
• Intelligent Digital Peripherals
• 32-Bit Hardware Multiplier (MPY)
• Three-Channel Internal Direct Memory Access (DMA)
• RTC With Calendar and Alarm Functions
• Five 16-Bit Timers With up to Seven Capture/Compare Registers
• 16-Bit and 32-Bit Cyclic Redundancy Checker (CRC16, CRC32)
• High-Performance Analog
• Up to 8-Channel Analog Comparator
• 12-Bit Analog-to-Digital Converter (ADC) With Internal Reference and Sample-and-Hold and up to 8 External Input Channels
• Integrated 116-Segment LCD Driver With Contrast Control
• Code Security and Encryption
• 128-Bit or 256-Bit AES Security Encryption and Decryption Coprocessor (MSP430FR69xx(1) Only)
• True Random Number Seed for Random Number Generation Algorithm
• Lockable Memory Segments for IP Encapsulation and Secure Storage
• Multifunction Input/Output Ports
• All I/O Pins Support Capacitive Touch Capability Without Need for External Components
• Accessible Bit-, Byte- and Word-Wise (in Pairs)
• Edge-Selectable Wakeup From LPM on Ports P1 to P4
• Programmable Pullup and Pulldown on All Ports
• Enhanced Serial Communication
• eUSCI_A0 and eUSCI_A1 Support:
• UART With Automatic Baud-Rate Detection
• IrDA Encode and Decode
• SPI at Rates up to 10 Mbps
• eUSCI_B0 and eUSCI_B1 Support:
• I2C With Multiple-Slave Addressing
• SPI at Rates up to 10 Mbps
• Flexible Clock System
• Fixed-Frequency DCO With 10 Selectable Factory-Trimmed Frequencies
• Low-Power Low-Frequency Internal Clock Source (VLO)
• 32-kHz Crystals (LFXT)
• High-Frequency Crystals (HFXT)
• Development Tools and Software
• Free Professional Development Environments With EnergyTrace++ Technology for Power Profiling and Debugging
• Microcontroller Development Boards Available
