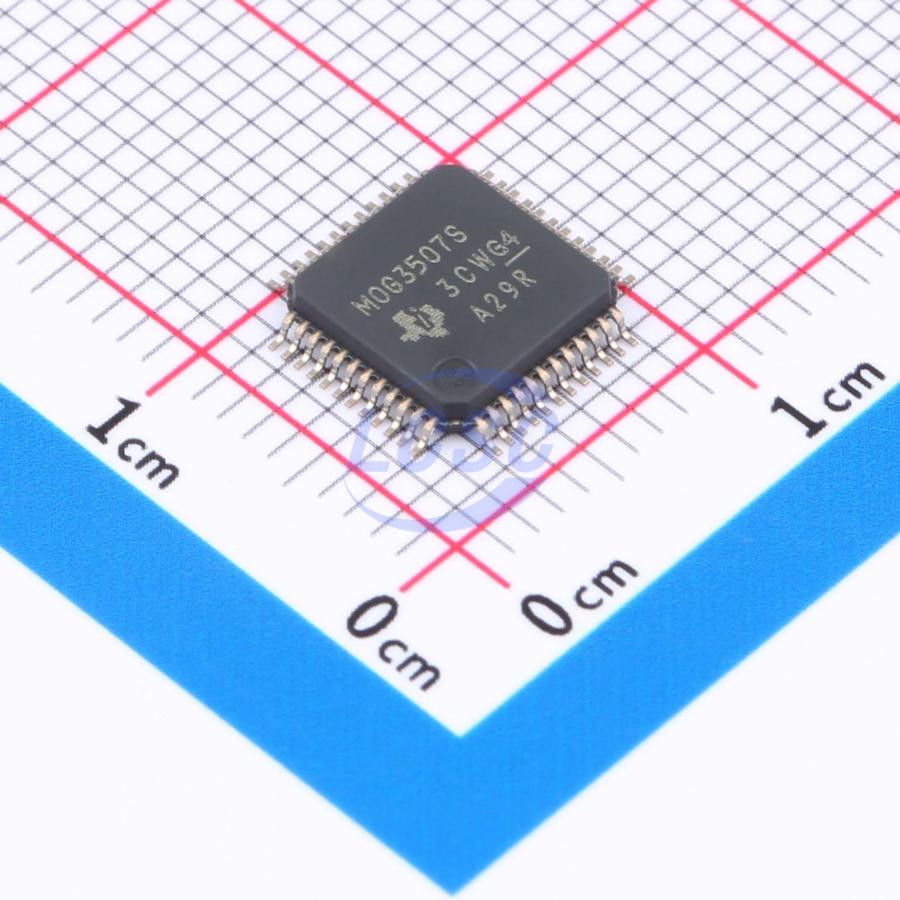

MSPM0G3507SPTR

The MSPM0G350x microcontroller (MCU) belongs to the MSP highly integrated ultra-low-power 32-bit MCU series. This MCU series is based on an enhanced Arm Cortex-M0+ 32-bit core platform and can operate at a maximum frequency of 80MHz. These low-cost MCUs offer high-performance analog peripheral integration, support an operating temperature range of -40°C to 125°C, and operate at a supply voltage of 1.62 V to 3.6 V. The MSPM0G350x devices provide up to 128KB of embedded flash program memory with built-in error correction code (ECC) and up to 32KB of SRAM with ECC and hardware parity options. These MCUs also include a memory protection unit, a 7-channel DMA, a math accelerator, and various high-performance analog peripherals, such as two 12-bit 4MSPS ADCs, a configurable internal shared voltage reference, a 12-bit 1Msps DAC, three high-speed comparators with built-in reference DACs, two zero-drift zero-crossing operational amplifiers with programmable gain, and a general-purpose amplifier. These devices also offer intelligent digital peripherals, such as two 16-bit advanced control timers, five general-purpose timers (including one 16-bit general-purpose timer for the QEI interface, two 16-bit general-purpose timers for standby mode, and one 32-bit general-purpose timer), two windowed watchdog timers, and an RTC with alarm and calendar modes. These devices provide data integrity and encryption peripherals (AES, CRC, TRNG) and enhanced communication interfaces (four UARTs, two I2Cs, two SPIs, and CAN 2.0/FD). The TI MSPM0 series of low-power MCUs includes devices with different levels of analog and digital integration, allowing customers to find an MCU that meets their engineering requirements. The MSPM0 MCU platform combines the Arm Cortex-M0+ platform with an ultra-low-power overall system architecture, enabling system designers to improve performance while reducing energy consumption. The MSPM0G350x MCUs are supported by a wide range of hardware and software ecosystems, and come with reference designs and code examples to help you quickly start your design. The development kits include purchasable LaunchPads. TI also offers a free MSP software development kit (SDK), which is available in the TI ResourceExplorer as a component of the Code Composer Studio IDE for both desktop and cloud versions. The MSPM0 MCUs also provide extensive online supporting materials and training through the MSP Academy, and offer online support through the TI E2E support forum.

Applications

• Motor control
• Home appliances
• Uninterruptible power supplies and inverters
• Electronic point-of-sale systems
• Medical and healthcare
• Test and measurement
• Factory automation and control
• Industrial transportation
• Grid infrastructure
• Smart metering
• Communication modules
• Lighting

Key features

• Arm 32-bit Cortex-M0+ CPU with MPU, up to 80MHz
• Operating temperature range: -40℃ to 125℃
• Wide supply voltage range: 1.62V to 3.6V
• Up to 128KB Flash with ECC protection, up to 32KB SRAM with hardware parity
• Two 12-bit 4Msps synchronous sampling ADCs with up to 17 external channels total
• Hardware averaging enabling 14-bit effective resolution at 250ksps
• One 12-bit 1MSPS DAC with integrated output buffer
• Two zero-drift, zero-crossing chopper OPAs with 0.5μV/℃ drift, featuring integrated PGA with up to 32x chopper
• One GPAMP
• Three high-speed COMPs with 8-bit reference DAC; 32ns propagation delay in high-speed mode
• Low-power operating mode support (down to <1μA)
• Programmable analog connectivity between ADC, OPA, COMP, and DAC
• Configurable 1.4V or 2.5V internal shared VREF
• Integrated temperature sensor
• Run: 96µA/MHz (CoreMark)
• Sleep: 458µA (at 4MHz)
• Stop: 47µA (at 32kHz)
• Standby: 1.5μA with RTC and SRAM retention
• Shutdown: 78nA with IO wake-up capability
• 7-channel DMA controller
• Math accelerator supporting DIV, SQRT, MAC, and TRIG operations
• One 16-bit general-purpose timer
• One 16-bit general-purpose timer with QEI support
• Two 16-bit general-purpose timers with low-power operation in standby mode
• One 32-bit high-resolution general-purpose timer
• Two 16-bit advanced timers with dead-band support and up to 12 PWM channels
• Two windowed watchdog timers
• RTC with alarm and calendar modes
• Four UART interfaces; one supporting LIN, IrDA, DALI, Smart Card, Manchester; three supporting low-power operation in standby mode
• Two I2C interfaces supporting FM+ (1Mbit/s), SMBus/PMBus, and wake-up from stop mode
• Two SPI interfaces; one supporting up to 32Mbit/s
• One CAN interface supporting CAN 2.0 A/B and CAN-FD
• Internal 4MHz to 32MHz SYSOSC with up to ±1.2% accuracy
• PLL up to 80MHz
• Internal 32kHz LFOSC with ±3% accuracy
• External 4MHz to 48MHz HFXT
• External 32kHz LFXT
• External clock input
• CRC (CRC-16, CRC-32)
• TRNG
• AES encryption with 128- or 256-bit keys
• Up to 60 GPIOs
• Two 5V-tolerant IOs
• Two high-drive IOs with 20mA drive strength
• 2-pin SWD
