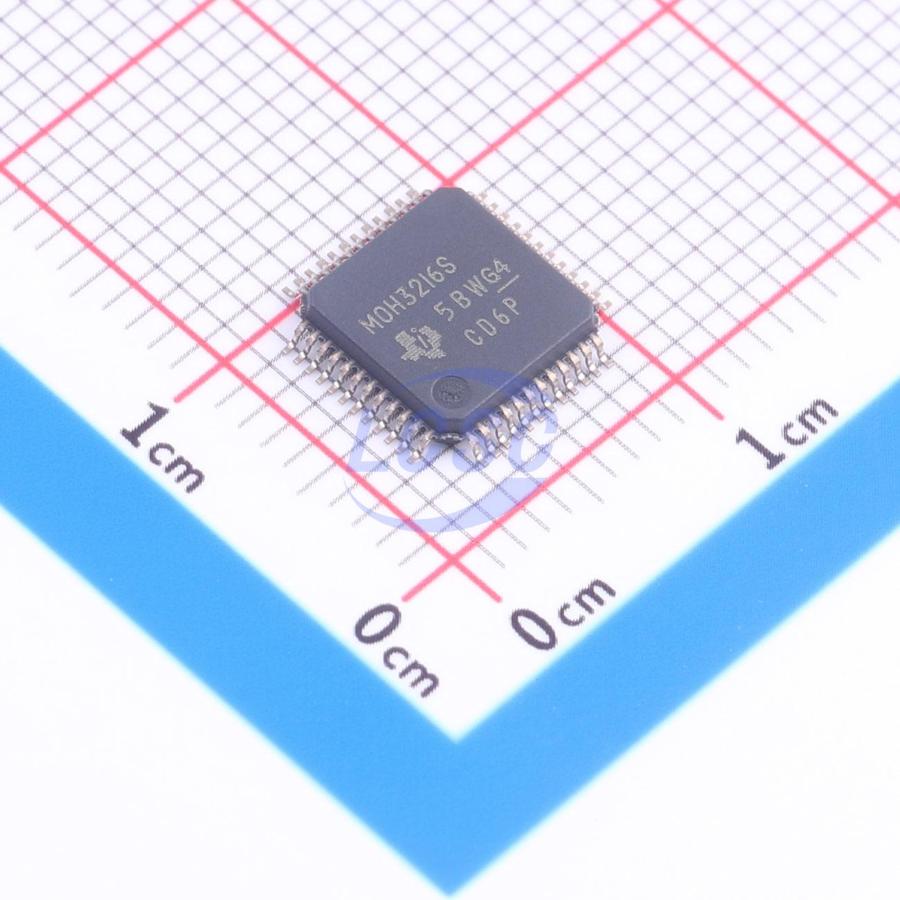

MSPM0H3216SPTR

The MSPM0H321x microcontrollers (MCUs) are part of the MSP highly integrated 5V power supply and 32-bit MCU family, based on an enhanced Arm® Cortex®-M0+ core platform operating at up to 32MHz. These low-cost MCUs offer high-performance analog peripheral integration, support an operating temperature range of -40℃ to 125℃, and operate from a supply voltage of 4.5V to 5.5V. The MSPM0H321x devices provide up to 64KB of embedded Flash program memory and 8KB of SRAM. These MCUs include a high-speed on-chip oscillator with accuracy of -2.1% to 1.6%, eliminating the need for an external crystal. These MCUs include a 3-channel DMA, CRC-16 accelerator, and various high-performance analog peripherals such as a 12-bit 1.6Msps ADC using VDD as the voltage reference and an on-chip temperature sensor. These devices offer intelligent digital peripherals, including one 16-bit advanced timer, four 16-bit general-purpose timers, one windowed watchdog timer, one independent watchdog timer, and one real-time clock (RTC). These devices also provide a variety of communication peripherals, including three UARTs, one SPI, and two I2Cs, with protocol support for LIN, IrDA, DALI, Manchester, Smart Card, SMBus, and PMBus. The MSPM0 family of low-power MCUs includes devices with varying levels of analog and digital integration to meet diverse engineering requirements. The architecture incorporates multiple low-power modes optimized to extend battery life in portable measurement applications. The MSPM0H321x MCUs are supported by a broad hardware and software ecosystem, with reference designs and code examples for rapid design start. Development kits include LaunchPad™ kits available for purchase and design files for target socket boards. TI offers a free MSP Software Development Kit (SDK), available as a component of both the desktop and cloud versions of the Code Composer Studio™ IDE in TI Resource Explorer. MSPM0 MCUs also provide extensive online companion materials and training through MSP Academy, along with online support via the TI E2E™ support forum. For complete module descriptions, refer to the MSPM0H Family 32MHz Microcontrollers Technical Reference Manual.

Applications

• Appliances
• Battery Charging and Management
• Power Supplies and Power Delivery
• Personal Electronics
• Building Security and Fire Safety
• Connected Peripherals and Printers
• Factory Automation Control
• Smart Metering
• Communication Modules
• Medical and Healthcare
• Lighting

Key features

• Arm® 32-bit Cortex®-M0+ CPU, up to 32MHz
• Operating temperature range: -40℃ to 125℃
• Supply voltage range: 4.5V to 5.5V
• On-chip memory up to 64KB Flash, 8KB SRAM
• Integrated high-performance analog peripherals: one 12-bit 1.6Msps ADC supporting up to 27 external channels, integrated 4.05V internal ADC voltage reference (VREF), integrated temperature sensor, integrated power monitor
• Optimized low-power modes
• Integrated 3-channel DMA controller
• Integrated five timers supporting up to 18 PWM channels
• Integrated one 16-bit advanced timer with dead-band support and up to 8 PWM channels, one 16-bit general-purpose timer with 4 capture/compare blocks, two 16-bit general-purpose timers with 2 capture/compare blocks, one 16-bit general-purpose timer with 2 capture/compare blocks and QEI
• Integrated windowed watchdog timer (WWDT)
• Integrated independent watchdog timer (IWDT)
• Integrated RTC with alarm and calendar modes, supports BEEPER generation of 1/2/4/8kHz square wave to drive external buzzer
• Enhanced communication interfaces
• Three UART interfaces supporting low-power operation in STANDBY mode; one advanced UART supports LIN, IrDA, DALI, Smart Card, and Manchester protocols
• Two I2C interfaces supporting FM+ (1Mbit/s), SMBus, PMBus, with wake-up from STOP mode
• One SPI interface supporting speeds up to 16Mbit/s
• Multiple clock sources: internal 32MHz oscillator (SYSOSC) with -2.1% to 1.6% accuracy; internal 32kHz low-frequency oscillator (LFOSC) with up to ±3% accuracy; external 4MHz to 32MHz crystal oscillator (HFXT); external 32kHz crystal oscillator (LFXT); external LF and HF digital clock input support
• Data integrity protection: integrated flexible firewall for code and data protection, integrated cyclic redundancy checker (CRC-16)
• Flexible I/O: up to 45 GPIOs with true 5V IO support
• 2-pin serial wire debug (SWD) support
• Multiple package options: 48-pin LQFP (PT), VQFN (RGZ); 32-pin VQFN (RHB); 28-pin VSSOP (DGS28); 24-pin VQFN (RGE); 20-pin VSSOP (DGS20), WQFN (RUK)
• Two devices in the family: MSPM0H3216: 64KB Flash, 8KB RAM; MSPM0H3215: 32KB Flash, 8KB RAM
• Development support via LP-MSPM0H3216 LaunchPad™ kit and MSP Software Development Kit (SDK)
