MST

MST1163TQ

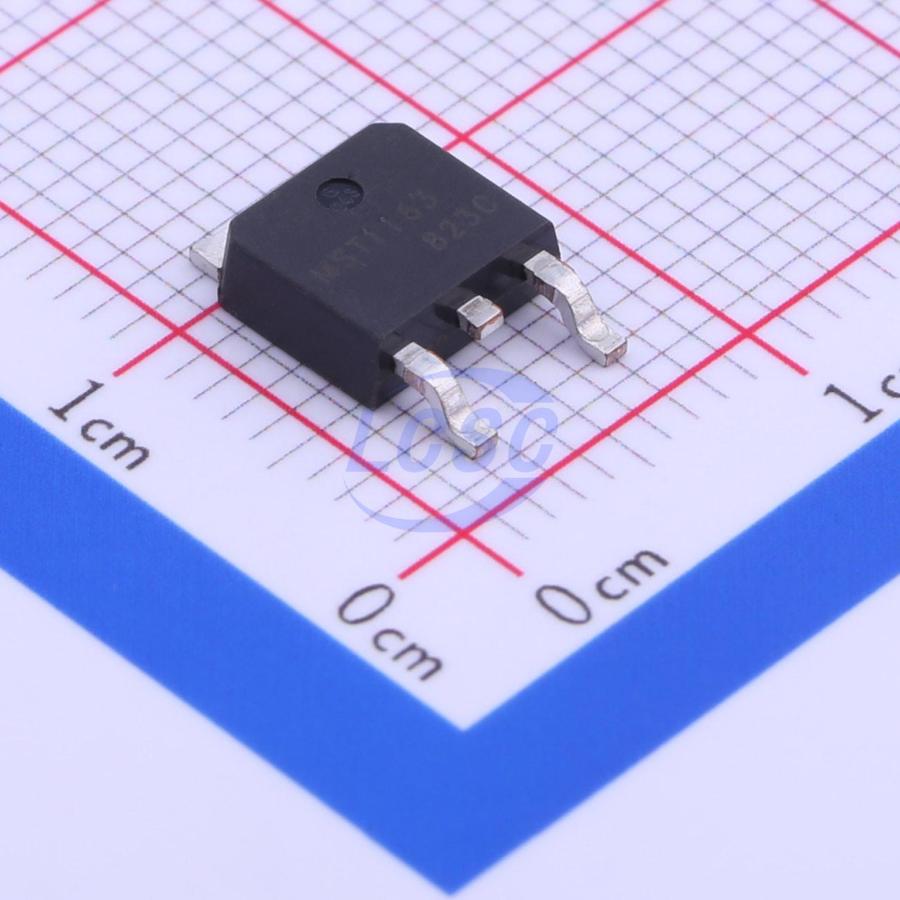

LED Driver IC 1 Output 15A TO-252

TO-252RoHSActive

High-power motorcycle flasher

Manufacturer: MST
Manufacturer part #: MST1163TQ
Store part #: C324596
Package / case: TO-252
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,329 in stock

#C324596

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹73.21	₹73.21
10+	₹64.96	₹649.60
30+	₹60.83	₹1,824.90
100+	₹56.70	₹5,670.00
500+	₹54.32	₹27,160.00
1,000+	₹53.01	₹53,010.00

Quantity (min 1)

1 × ₹73.21

₹73.21

excl. GST

₹86.39 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

MST1163TQ

₹73.21 for 1 + GST

Specifications

Features: Over-Temperature Protection (OTP)
Frequency - Switching: 1.33Hz~1.5Hz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+150℃
Number of Channels: 1
Output Current: 15A
Voltage - Input(DC): 9V~24V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.33 g

Overview

MST1163 is a high-power flasher IC with missing lamp indication. It is widely used in motorcycle applications. When using this IC, simply connect the battery positive to the VCC pin, connect the VOUT pin to the bulb, and place a capacitor on the CEXT pin. MST1163 will then control the bulb to flash at a fixed frequency via internally configured logic. Once a missing lamp condition is detected, the bulb will flash at double frequency. MST1163 features multiple protection functions, including cycle-by-cycle over-temperature shutdown protection, overcurrent protection, and over-temperature protection.
