MST8A10A1KP

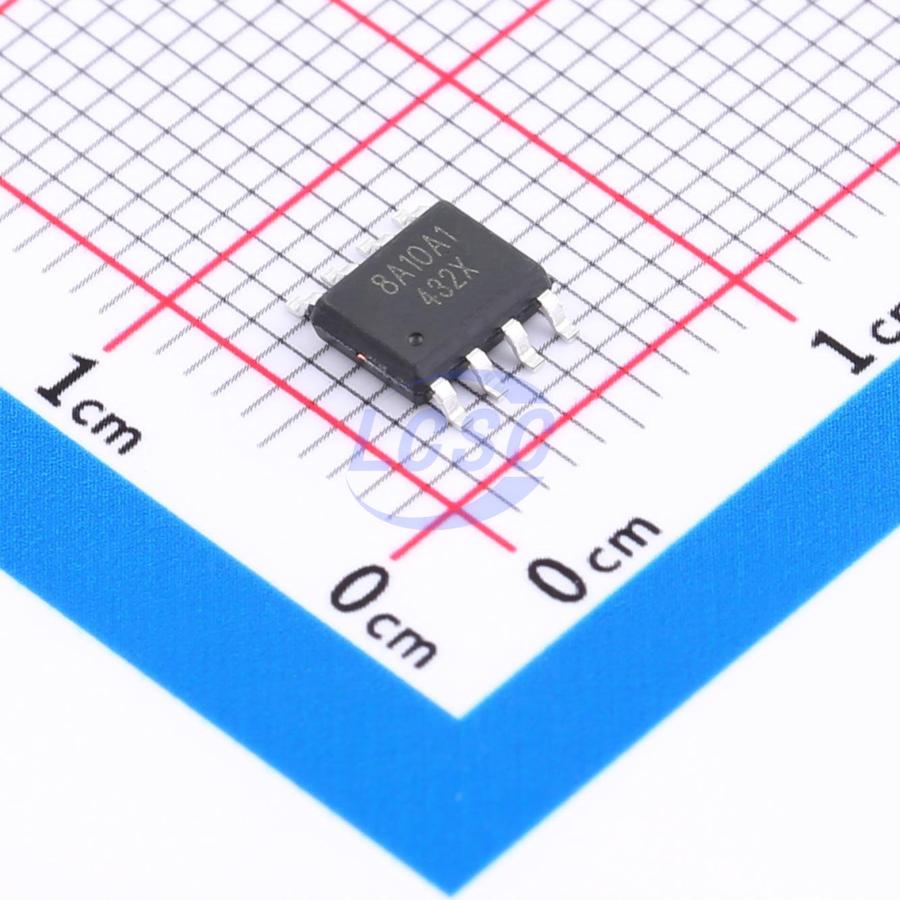

MST8A10AXKP is a high-voltage, high-performance asynchronous step-down DC-DC converter with a wide input voltage range of 9V to 100V. The device integrates a high-side NMOS with an on-resistance of only 400mΩ, capable of delivering a continuous load current of up to 1A and achieving a peak efficiency of up to 92%. It features excellent line and load transient response, along with multiple protection mechanisms including short-circuit protection, overcurrent protection, and over-temperature protection. The output can be easily enabled or disabled by controlling the logic level of the EN pin. The product is available in an ESOP8 package with an exposed thermal pad on the bottom.

Applications

• Home appliances and garden tools
• E-bike instrumentation
• Motor drive
• Power modules

Key features

• 9V to 100V input voltage range
• 1.5A current limit for power transistor
• 1A maximum continuous load current
• 400uA quiescent operating current
• Integrated 100V/400mΩ NMOS transistor
• Peak current control mode
• Selectable 150kHz/300kHz switching frequency
• Built-in loop compensation circuit
• Up to 92% duty cycle
• 0.8V FB pin reference voltage
• 9uA shutdown current
• Built-in short-circuit protection
• Built-in over-temperature protection
• ESOP8 package
