MSKSEMIDatasheet (PDF)

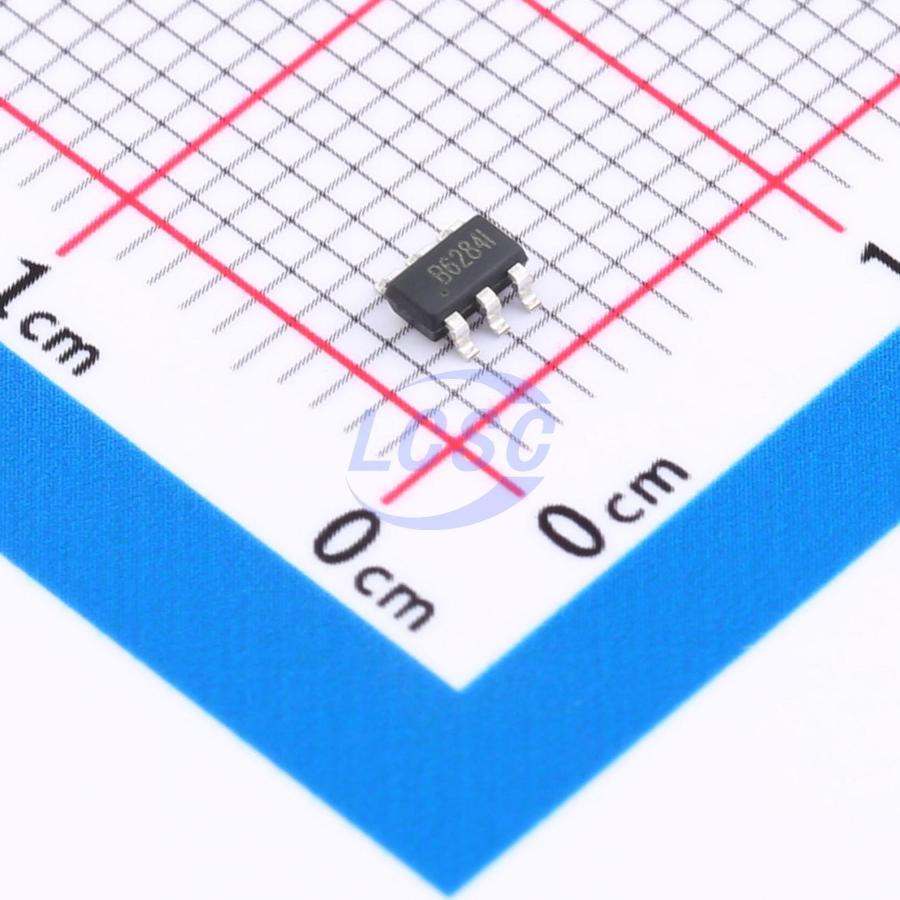

MSTLV61048DBVR
1.2MHz Boost Adjustable SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSTLV61048DBVR
- Store part #
- C49208387
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,945 in stock
#C49208387
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.44 | ₹102.20 |
| 50+ | ₹17.93 | ₹896.50 |
| 150+ | ₹16.86 | ₹2,529.00 |
| 500+ | ₹15.52 | ₹7,760.00 |
| 3,000+ | ₹14.20 | ₹42,600.00 |
| 6,000+ | ₹13.84 | ₹83,040.00 |
5 × ₹20.44
₹102.20
excl. GST
₹120.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MSTLV61048DBVR
₹102.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1.2MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.5V~24V
- Switch tube (built-in/external)
- Built-in
- Quiescent Current
- 70uA;1mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
MSTLV61048DBVR is a fixed-frequency, 6-pin SOT-23 current-mode boost converter designed for small, low-power applications. The device operates at a switching frequency of 1.2MHz, enabling the use of miniature, low-cost capacitors and inductors with a height of 2mm or less. Internal soft-start reduces inrush current and extends battery life. The MSTLV61048DBVR features automatic switchover to pulse frequency modulation (PFM) mode under light load conditions. The device integrates UVLO, current limiting, and thermal overload protection to prevent damage during output overload. The MSTLV61048DBVR is available in a compact 6-pin SOT-23 package.
Applications
- Battery-powered devices
- Set-top boxes
- LCD bias power supplies
- DSL and cable modems and routers
- Network interface cards
Key features
- Integrated 80mΩ power MOSFET
- 2.5V to 24V input voltage
- 1.2MHz fixed switching frequency
- Internal 4A switch current limit
- Adjustable output voltage
- Internal compensation
- Up to 28V output voltage
- Automatic PFM mode at light load
- Up to 93% efficiency
- Available in 6-pin SOT23-6 package
