MSKSEMIDatasheet (PDF)

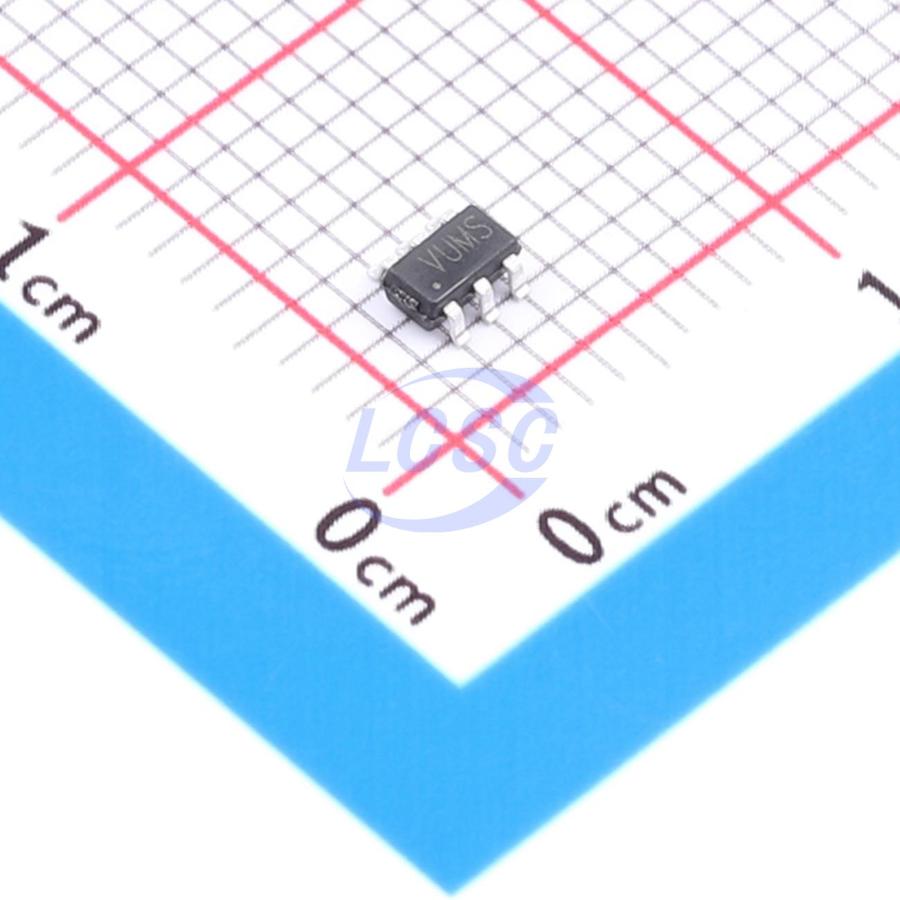

MSTLV61220DBVR
1.2MHz Boost Adjustable 1.8V~5.5V SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSTLV61220DBVR
- Store part #
- C49208391
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,905 in stock
#C49208391
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.69 | ₹188.45 |
| 50+ | ₹29.77 | ₹1,488.50 |
| 150+ | ₹26.38 | ₹3,957.00 |
| 500+ | ₹22.15 | ₹11,075.00 |
| 3,000+ | ₹20.27 | ₹60,810.00 |
| 6,000+ | ₹19.13 | ₹1,14,780.00 |
5 × ₹37.69
₹188.45
excl. GST
₹222.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MSTLV61220DBVR
₹188.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1.2MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Light load efficient mode;Load disconnect
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 900mV~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.8V~5.5V
- Quiescent Current
- 500nA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
MSTLV61220DBVR is a high-efficiency current-mode synchronous boost converter that operates from single or dual alkaline cell supplies, with input voltages as low as 0.9V. The output voltage is adjustable up to 5.5V via an external resistive voltage divider. Under light-load conditions, MSTLV61220DBVR enters power-save mode to maintain high efficiency. It features true output disconnection, allowing VOUT to drop to zero volts at shutdown without drawing any current from the input source. MSTLV61220DBVR integrates a 0.5Ω N-channel MOSFET switch and a 0.6Ω P-channel synchronous rectifier, eliminating the need for an external Schottky diode. The device is available in a SOT-23-6 package.
Applications
- Single or dual alkaline cell
- Single Li-Ion or lithium primary cell
- Personal medical products
- Handheld instruments
Key features
- Input voltage range: 0.9V to 5.5V
- 1.2MHz fixed switching frequency
- Adjustable output voltage up to 5.5V
- Precise reference voltage of 0.5V
- Integrated 0.5Ω NMOS and 0.6Ω PMOS
- Internal 1.2A switch current limit
- Load disconnect during shutdown
- Thermal shutdown protection
- SOT23-6 package
- RoHS compliant and halogen-free
