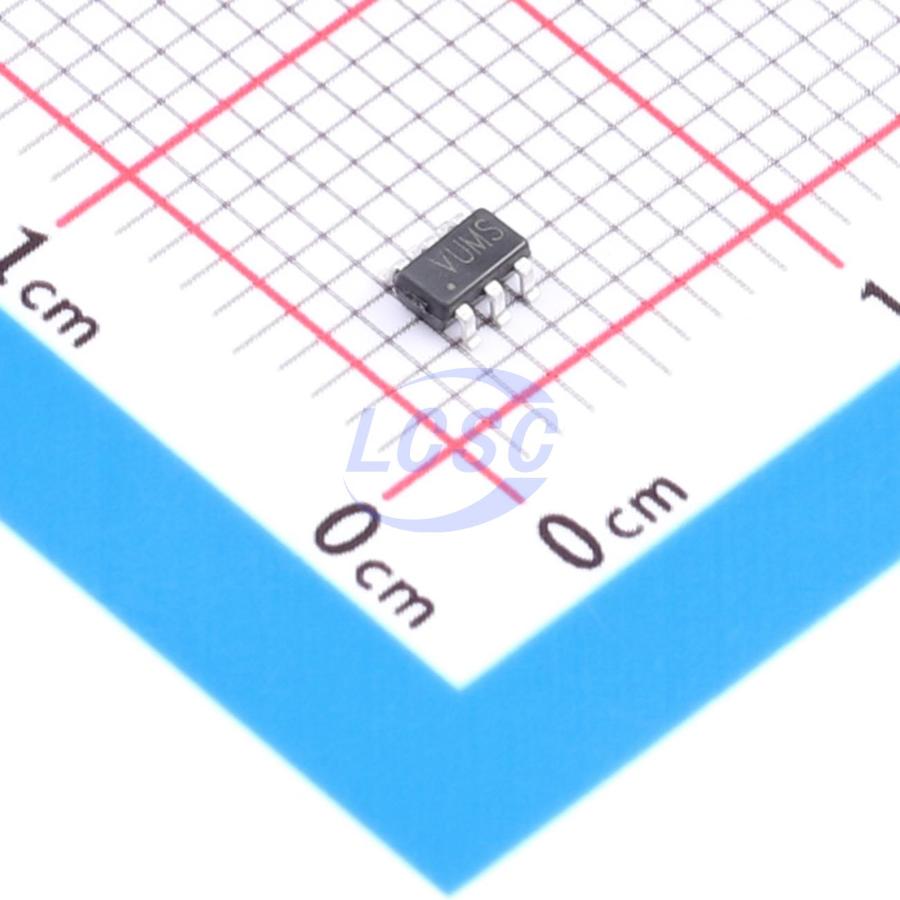

MSTPS61070DDCR
1.2MHz Boost Adjustable 1.8V~5.5V SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSTPS61070DDCR
- Store part #
- C49208495
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,189 in stock
#C49208495
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.27 | ₹55.27 |
| 10+ | ₹43.76 | ₹437.60 |
| 30+ | ₹38.74 | ₹1,162.20 |
| 100+ | ₹32.66 | ₹3,266.00 |
| 500+ | ₹29.74 | ₹14,870.00 |
| 1,000+ | ₹28.27 | ₹28,270.00 |
1 × ₹55.27
₹55.27
excl. GST
₹65.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MSTPS61070DDCR
₹55.27 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1.2MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Light load efficient mode;Load disconnect
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 900mV~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.8V~5.5V
- Quiescent Current
- 500nA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.047 g
Overview
MSTPS61070DDCR is a high-efficiency, current-mode, synchronous boost converter that operates from input voltages as low as 0.9V, such as single or dual-cell alkaline batteries. The converter output voltage is adjustable up to 5.5V via an external resistor divider. Under light-load conditions, the MSTPS61070DDCR enters power-save mode to maintain high efficiency. The MSTPS61070DDCR provides a true output disconnect function, allowing the output voltage to fall to zero volts during shutdown without drawing any current from the input source. The MSTPS61070DDCR integrates a 0.5Ω N-channel MOSFET switch and a 0.6Ω P-channel synchronous rectifier, eliminating the need for an external Schottky diode. The device is available in a SOT23-6 package.
Applications
- Single or dual alkaline cell
- Single Li-Ion or lithium primary cell
- Personal medical products
- Handheld instruments
Key features
- Input voltage range: 0.9V ~ 5.5V
- 1.2MHz fixed switching frequency
- Adjustable output voltage up to 5.5V
- Accurate reference voltage 0.5V
- Integrated 0.5Ω NMOS and 0.6Ω PMOS
- Internal 1.2A switch current limit
- Load disconnect during shutdown
- Thermal shutdown protection
- SOT23-6 package
- RoHS compliant and halogen-free
