MSKSEMIDatasheet (PDF)

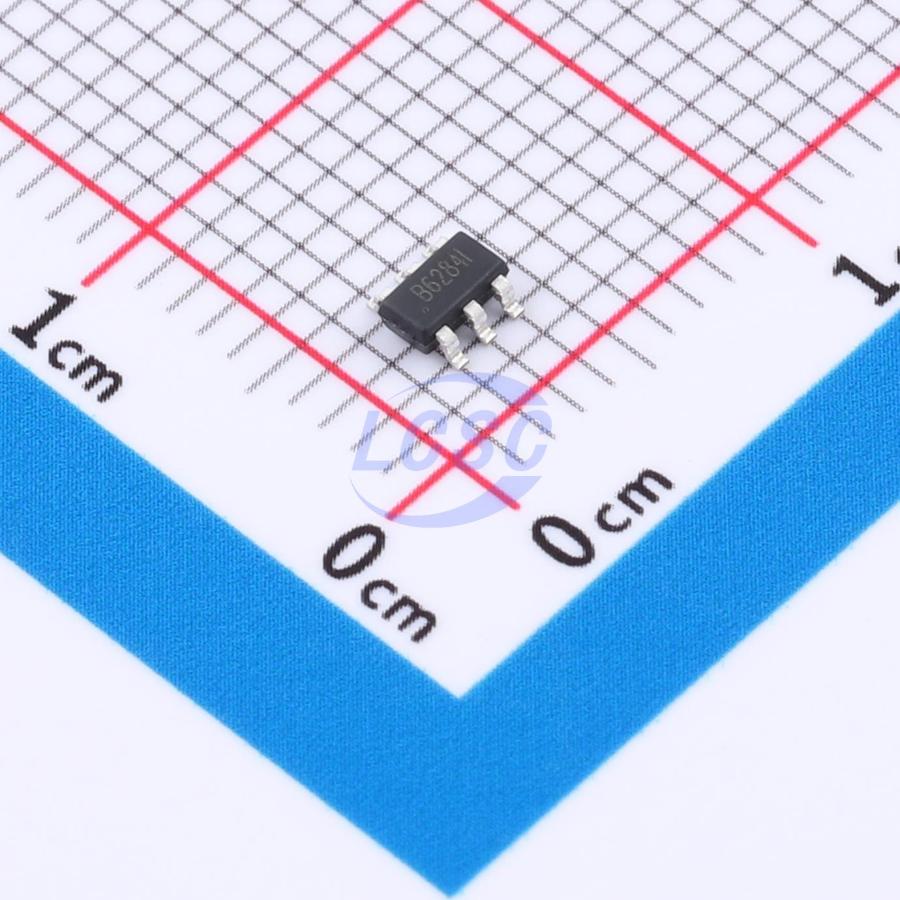

MSY7208ABC
1.2MHz Boost Adjustable SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSY7208ABC
- Store part #
- C49375257
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,205 in stock
#C49375257
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.02 | ₹130.10 |
| 50+ | ₹20.56 | ₹1,028.00 |
| 150+ | ₹18.22 | ₹2,733.00 |
| 500+ | ₹15.29 | ₹7,645.00 |
| 3,000+ | ₹14.00 | ₹42,000.00 |
| 6,000+ | ₹13.22 | ₹79,320.00 |
5 × ₹26.02
₹130.10
excl. GST
₹153.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MSY7208ABC
₹130.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1.2MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.5V~24V
- Switch tube (built-in/external)
- Built-in
- Quiescent Current
- 70uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
MSY7208ABC is a fixed-frequency, current-mode boost converter in a 6-pin SOT-23 package, designed for small, low-power applications. The device switches at 1.2MHz, allowing the use of miniature, low-cost capacitors and inductors with heights of 2mm or less. Internal soft-start reduces inrush current and extends battery life. The MSY7208ABC features automatic switchover to pulse frequency modulation mode under light load conditions. The device also incorporates undervoltage lockout, current limiting, and thermal overload protection to prevent damage during output overload. The MSY7208ABC is available in a compact 6-pin SOT-23 package.
Applications
- Battery-powered devices
- Set-top boxes
- LCD bias power supplies
- DSL and cable modems and routers
- Network cards powered from PCI or PCI Express slots
Key features
- Integrated 80mΩ power MOSFET
- 2.5V to 24V input voltage range
- 1.2MHz fixed switching frequency
- Internal 4A switch current limit
- Adjustable output voltage
- Internal compensation
- Output voltage up to 28V
- Automatic pulse frequency modulation mode at light load
- Up to 93% efficiency
- 6-pin SOT23-6 package
