MSKSEMIDatasheet (PDF)

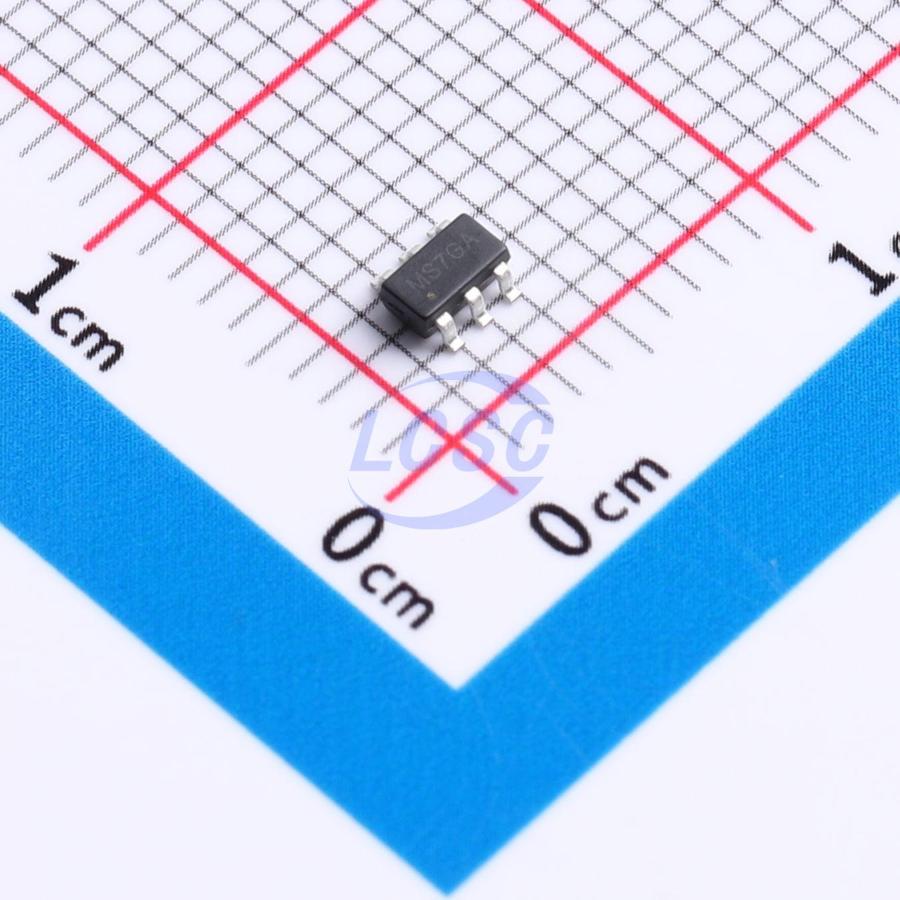

MSY8401ABC
Step-down type 2MHz Adjustable 600mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSY8401ABC
- Store part #
- C49375218
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,360 in stock
#C49375218
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.50 | ₹182.50 |
| 50+ | ₹28.84 | ₹1,442.00 |
| 150+ | ₹25.56 | ₹3,834.00 |
| 500+ | ₹21.46 | ₹10,730.00 |
| 3,000+ | ₹18.72 | ₹56,160.00 |
| 6,000+ | ₹17.62 | ₹1,05,720.00 |
5 × ₹36.50
₹182.50
excl. GST
₹215.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MSY8401ABC
₹182.50 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Number of Outputs
- 1
- Function
- Step-down type
- Frequency - Switching
- 2MHz
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~60V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 600mA
- Quiescent Current
- 700uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
MSY8401ABC is a monolithic step-down switching mode converter with an integrated power MOSFET. The device delivers up to 600mA of output current over a wide input supply range with excellent load and line regulation. Under light-load conditions, the regulator operates at reduced frequency to maintain high efficiency and minimize output ripple. The input voltage range spans from 4.5V to 60V, with the ability to withstand higher transient voltages. Fault protection features include cycle-by-cycle current limiting and thermal shutdown. The MSY8401ABC requires only a few readily available external components and is offered in a SOT-23-6 package.
Applications
- Electricity meters
- Distributed power systems
- Battery chargers
- Pre-regulators for linear regulators
- WLED drivers
Key features
- Wide 4.5V to 60V input voltage range
- 600mA continuous output current
- 2MHz switching frequency
- Built-in overcurrent limiting
- Internal soft-start
- 900mΩ low RDS(ON) internal power MOSFET
- Output voltage adjustable from 0.795V
- Integrated internal compensation
- Thermal shutdown protection
- Short-circuit protection
- Available in SOT-23-6 package
- -40℃ to +85℃ operating temperature range
