VBsemi ElecDatasheet (PDF)

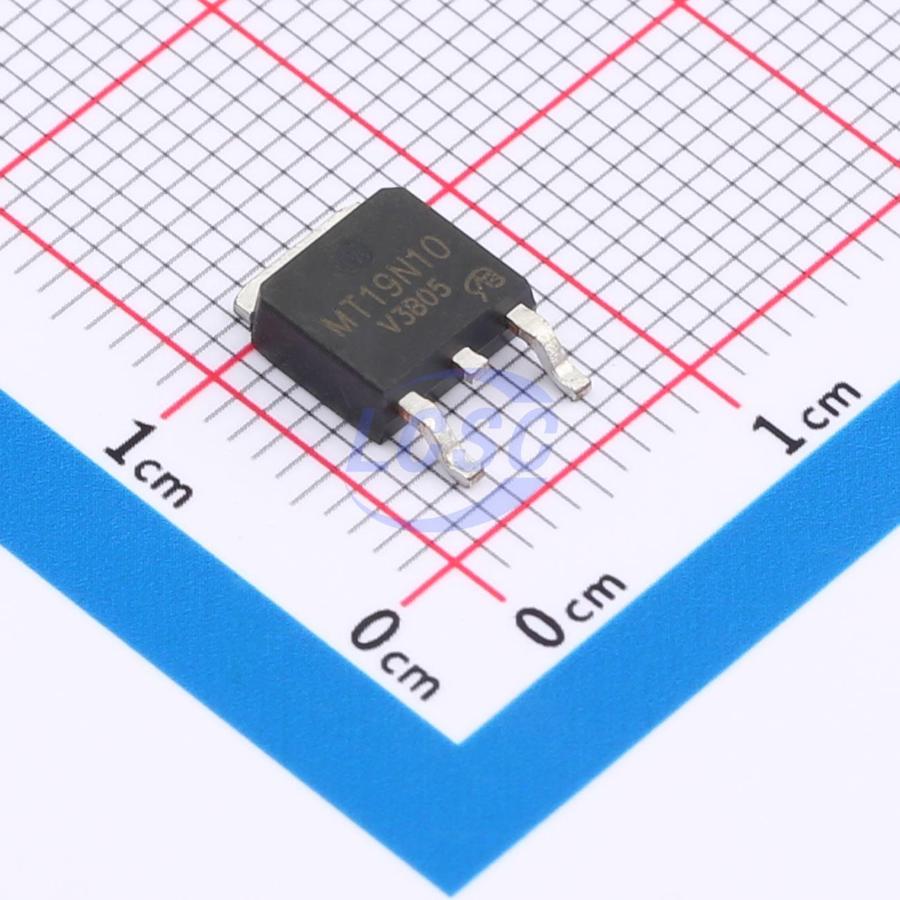

MT19N10-VB
N-Channel 100V 12A 83W Surface Mount TO-252
TO-252ROHS CompliantActive
MOSFET N-CH 100V 12A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- MT19N10-VB
- Store part #
- C7569034
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27 in stock
#C7569034
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹103.84 | ₹103.84 |
| 10+ | ₹85.78 | ₹857.80 |
| 30+ | ₹76.85 | ₹2,305.50 |
| 100+ | ₹67.92 | ₹6,792.00 |
| 500+ | ₹54.86 | ₹27,430.00 |
| 1,000+ | ₹52.03 | ₹52,030.00 |
1 × ₹103.84
₹103.84
excl. GST
₹122.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MT19N10-VB
₹103.84 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 83W
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 55mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 21nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.5 g
Overview
Applications
- Primary-side switch
Key features
- Trench Power MOSFET
- 100% Unclamped Inductive Switching (UIS) Tested
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVD6416ANLT4G-VF01-VB#C45662564VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹125.18 · 10 in stock | View |
 | NVD6416ANLT4G-VB#C20755168VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹92.64 · 20 in stock | View |
 | RU1HE16L-VB#C22389122VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹92.64 · 20 in stock | View |
 | FDD850N10L-VB#C22389193VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹92.64 · 20 in stock | View |
 | RSD175N10-VB#C22389380VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 15 | ₹89.06 · 15 in stock | View |
