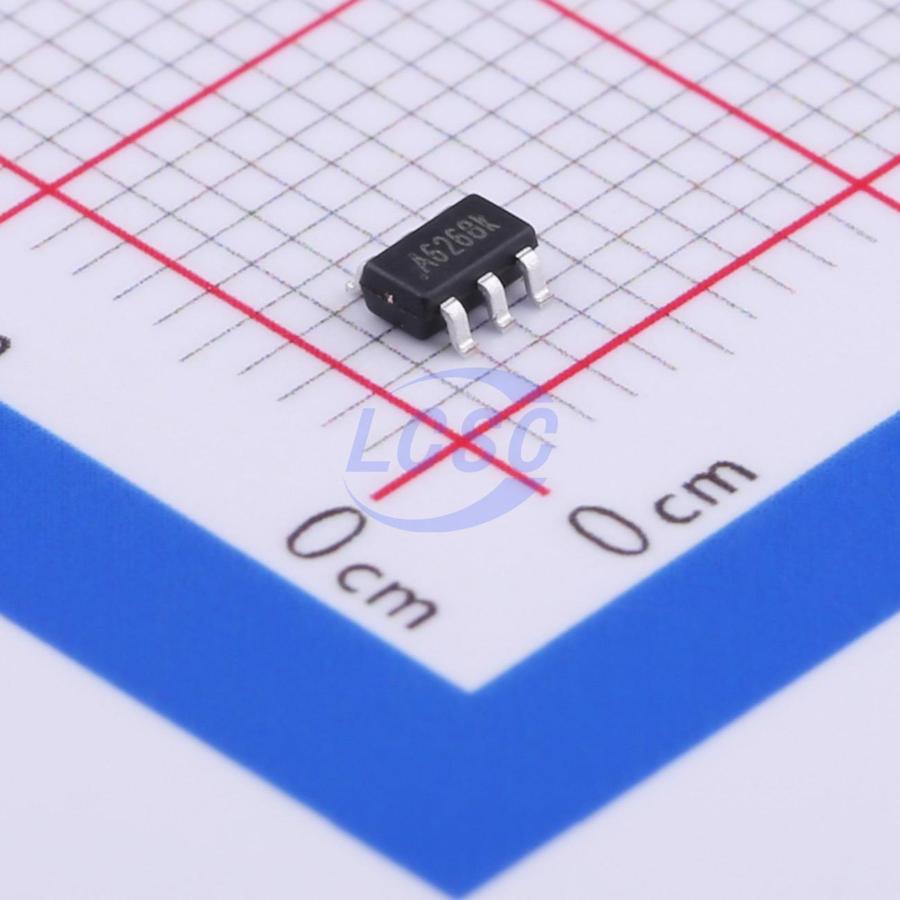

MT2496
Step-down type 500kHz Adjustable 600mV~6V 3A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
3A Synchronous Step-Down Converter
- Manufacturer
- XI'AN Aerosemi Tech
- Manufacturer part #
- MT2496
- Store part #
- C384594
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,035 in stock
#C384594
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.32 | ₹101.60 |
| 50+ | ₹17.75 | ₹887.50 |
| 150+ | ₹16.14 | ₹2,421.00 |
| 500+ | ₹14.54 | ₹7,270.00 |
| 3,000+ | ₹12.87 | ₹38,610.00 |
| 6,000+ | ₹11.26 | ₹67,560.00 |
5 × ₹20.32
₹101.60
excl. GST
₹119.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MT2496
₹101.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Function
- Step-down type
- Frequency - Switching
- 500kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4V~18V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~6V
- Output Current
- 3A
- Quiescent Current
- 600uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The MT2496 is a fully integrated, high– efficiency 3A synchronous rectified step-down converter. The MT2496 operates at high efficiency over a wide output current load range. This device offers two operation modes, PWM control and PFM Mode switching control, which allows a high efficiency over the wider range of the load. The MT2496 requires a minimum number of readily available standard external components and is available in an 6-pin SOT23 ROHS compliant package.
Applications
- Distributed Power Systems
- Digital Set Top Boxes
- Flat Panel Television and Monitors
- Wireless and DSL Modems
- Notebook Computer
Key features
- High Efficiency: Up to 96%
- 500KHz Frequency Operation
- 3A Output Current
- No Schottky Diode Required
- 4.5V to 16V Input Voltage Range
- 0.6V Reference
- Slope Compensated Current Mode Control for Excellent Line and Load Transient Response
- Integrated internal compensation
- Stable with Low ESR Ceramic Output Capacitors
- Over Current Protection with Hiccup-Mode
- Thermal Shutdown
- Inrush Current Limit and Soft Start
- Available in SOT23-6 Package
- -40°C to +85°C Temperature Range
