XI'AN Aerosemi Tech

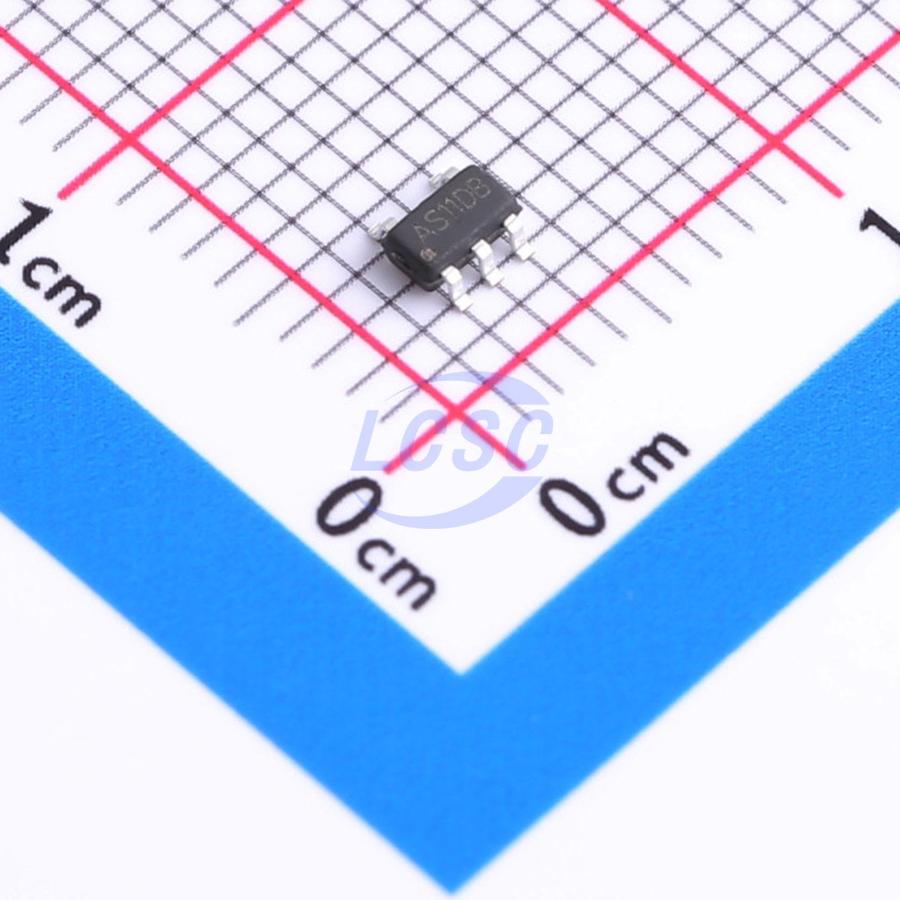

MT3410LB-N

Step-down type 1.2MHz Adjustable 600mV~6V 1.3A SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23-5ROHS CompliantActive

1.3A,2.3V - 6V Input,1.2MHz Synchronous Step - Down Converter

Manufacturer: XI'AN Aerosemi Tech
Manufacturer part #: MT3410LB-N
Store part #: C42420805
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

33,893 in stock

#C42420805

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹5.16	₹5.16
10+	₹4.41	₹44.10
30+	₹3.98	₹119.40
100+	₹3.73	₹373.00
500+	₹3.51	₹1,755.00
1,000+	₹3.39	₹3,390.00

Quantity (min 1)

1 × ₹5.16

₹5.16

excl. GST

₹6.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

MT3410LB-N

₹5.16 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Number of Outputs: 1
Function: Step-down type
Frequency - Switching: 1.2MHz
Features: Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.3V~6V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~6V
Output Current: 1.3A
Quiescent Current: 25uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.043 g

Overview

MT3410LB is a high-efficiency, high-frequency synchronous step-down DC-DC regulator IC capable of delivering up to 1.3A output current. The MT3410LB operates over a wide input voltage range of 2.3V to 6V and integrates both main and synchronous switches with ultra-low on-resistance RDS(ON) to minimize conduction losses. It is ideal for powering portable devices running from a single-cell Li+ battery. The output voltage can be as low as 0.6V. The MT3410LB also supports low dropout operation at 100% duty cycle to extend battery life in portable systems. The device offers two operating modes — PWM mode and PFM mode switching control — achieving high efficiency across a wide load range. The MT3410LB is available in a low-profile 5-pin SOT package with an adjustable output version.

Applications

Cellular phones and smartphones
Wireless and DSL modems
Personal digital assistants
Portable instruments
Digital still and video cameras

Key features

High efficiency: up to 96%
1.2MHz constant frequency operation
1.3A output current
No Schottky diode required
2.3V to 6V input voltage range
Output voltage as low as 0.6V
High efficiency in light load via PFM mode
100% duty cycle at low dropout operation
Low quiescent current: 25μA
Slope-compensated current mode control with excellent line and load transient response
Short-circuit protection
Thermal fault protection
Inrush current limiting and soft-start
Shutdown current <1μA
SOT23-5 package
