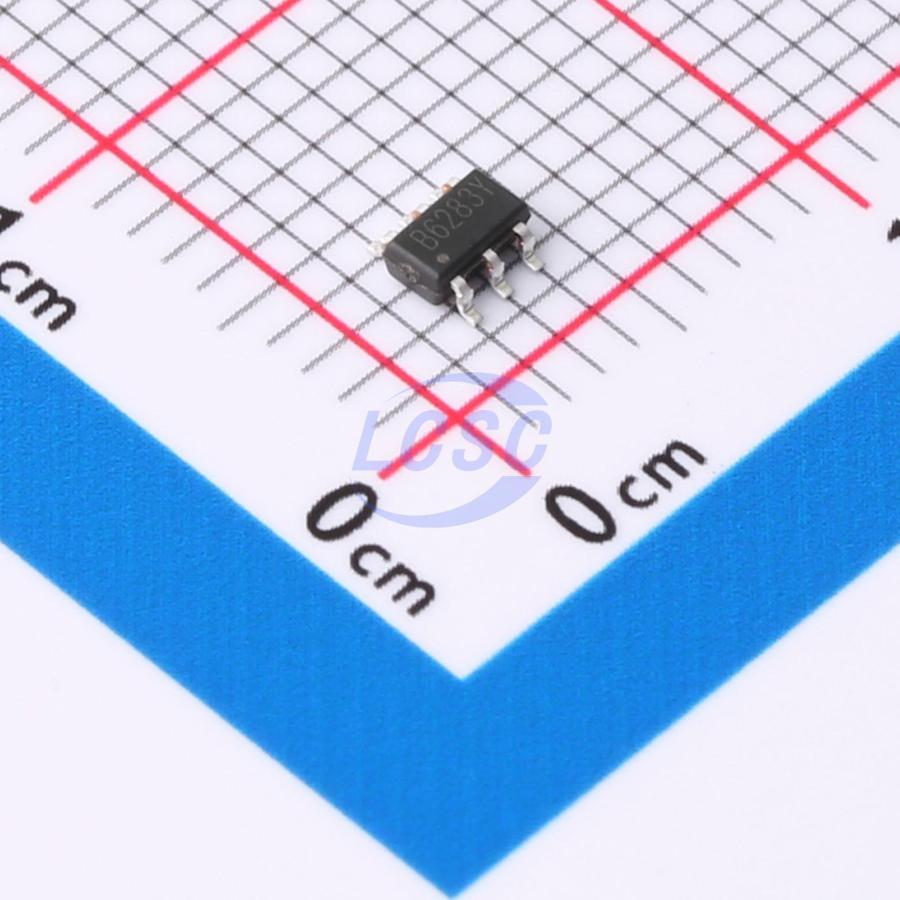

MT3608B
1.2MHz Boost Adjustable 4A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantDiscontinued
High Efficiency 1.2MHz Step-Up Converter
- Manufacturer
- XI'AN Aerosemi Tech
- Manufacturer part #
- MT3608B
- Store part #
- C19189893
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
98,630 in stock
#C19189893
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹13.87 | ₹138.70 |
| 100+ | ₹11.84 | ₹1,184.00 |
| 300+ | ₹10.82 | ₹3,246.00 |
| 3,000+ | ₹10.68 | ₹32,040.00 |
| 6,000+ | ₹10.07 | ₹60,420.00 |
| 9,000+ | ₹9.76 | ₹87,840.00 |
10 × ₹13.87
₹138.70
excl. GST
₹163.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MT3608B
₹138.70 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1.2MHz
- Number of Outputs
- 1
- Function
- Boost
- Features
- Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.5V~24V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 4A
- Quiescent Current
- 70uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Discontinued
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
MT3608B is a fixed-frequency, 6-pin SOT23 current-mode boost converter designed for small, low-power applications. Operating at a switching frequency of 1.2MHz, it allows the use of miniature, low-cost capacitors and inductors with heights of 2mm or less. Internal soft-start reduces inrush current and extends battery life. The MT3608B features automatic transition to pulse frequency modulation (PFM) mode under light load conditions. It incorporates undervoltage lockout, current limiting, and thermal overload protection to prevent damage during output overload. The MT3608B is available in a compact 6-pin SOT-23 package.
Applications
- Battery-powered devices
- Set-top boxes
- LCD bias power supplies
- DSL and cable modems and routers
- Network cards powered by PCI or PCI Express slots
Key features
- Integrated 80mΩ power MOSFET
- Input voltage 2.5V ~ 24V
- 1.2MHz fixed switching frequency
- Internal 4A switch current limit
- Adjustable output voltage
- Internal compensation
- Up to 28V output voltage
- Automatic pulse frequency modulation mode at light load
- Up to 93% efficiency
- 6-pin SOT23-6 package
