XI'AN Aerosemi TechDatasheet (PDF)

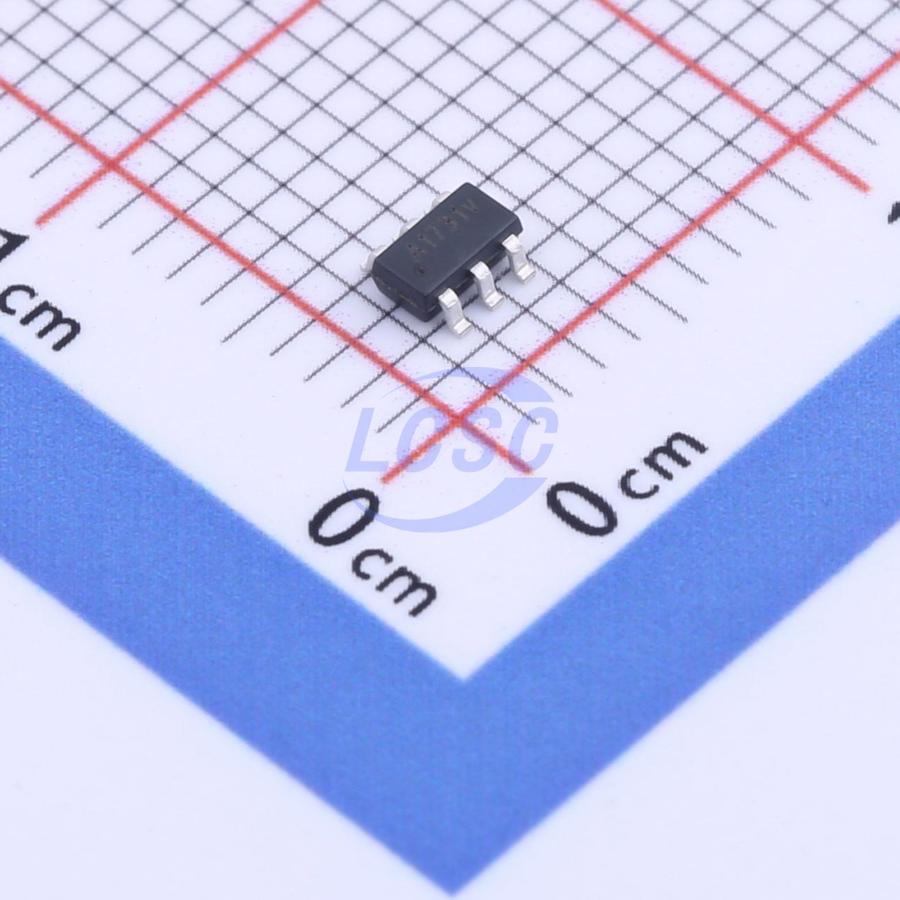

MT36291
1.2MHz Boost Adjustable 600mV~20V 2.5A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
2.5A High Efficiency 1.2MHz Step-Up Converter
- Manufacturer
- XI'AN Aerosemi Tech
- Manufacturer part #
- MT36291
- Store part #
- C2974847
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23,940 in stock
#C2974847
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.16 | ₹71.60 |
| 100+ | ₹6.88 | ₹688.00 |
| 300+ | ₹6.59 | ₹1,977.00 |
| 3,000+ | ₹6.30 | ₹18,900.00 |
10 × ₹7.16
₹71.60
excl. GST
₹84.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MT36291
₹71.60 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1.2MHz
- Number of Outputs
- 1
- Function
- Boost
- Features
- Adjustable current limiting;Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.2V~16V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~20V
- Output Current
- 2.5A
- Quiescent Current
- 100uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.05 g
Overview
The MT36291 is a constant frequency, 6-pin SOT23 current mode step-up converter intended for small, low power applications. The MT36291 switches at 1.2MHz and allows the use of tiny, low cost capacitors and inductors 2mm or less in height. Internal soft-start results in small inrush current and extends battery life. The MT36291 features automatic shifting to pulse frequency modulation mode at light loads. The MT36291 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The MT36291 is available in a small 6-pin SOT-23 package.
Applications
- Battery-Powered Equipment
- Set-Top Boxed
- LCD Bais Supply
- DSL and Cable Modems and Routers
- Networking cards powered from PCI or PCI express slots
Key features
- Integrated 80mΩ Power MOSFET
- 2.2V to 16V Input Voltage
- 1.2MHz Fixed Switching Frequency
- Adjustable Over Current Protection: 0.5A ~2.5A
- Internal 2.5A Switch Current Limit(OC pin floating)
- Adjustable Output Voltage
- Internal Compensation
- Over Voltage Protection
- Up to 20V Output Voltage
- Automatic Pulse Frequency Modulation Mode at Light Loads
- up to 93% Efficiency
- Available in a 6-Pin SOT23-6 Package
