VBsemi ElecDatasheet (PDF)

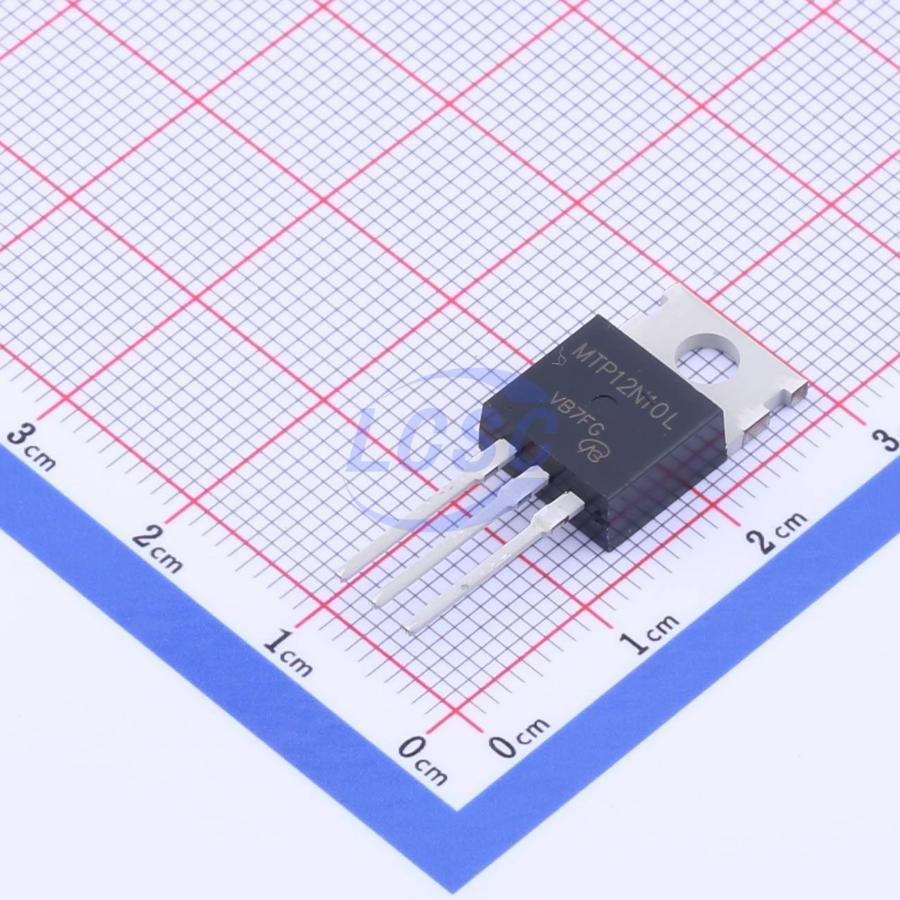

MTP12N10L-VB
N-Channel 100V 18A 105W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 100V 18A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- MTP12N10L-VB
- Store part #
- C2680750
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
33 in stock
#C2680750
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.87 | ₹71.87 |
| 10+ | ₹57.09 | ₹570.90 |
| 50+ | ₹45.91 | ₹2,295.50 |
| 100+ | ₹38.13 | ₹3,813.00 |
| 500+ | ₹34.54 | ₹17,270.00 |
| 1,000+ | ₹32.55 | ₹32,550.00 |
| 2,000+ | ₹31.94 | ₹63,880.00 |
| 4,000+ | ₹31.74 | ₹1,26,960.00 |
1 × ₹71.87
₹71.87
excl. GST
₹84.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
MTP12N10L-VB
₹71.87 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 260pF
- Current - Continuous Drain(Id)
- 18A
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 105W
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 127mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 28nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.05 g
Overview
Applications
- Isolated DC/DC Converter
Key features
- Trench power MOSFET
- Junction temperature 175°C
- Low thermal resistance package
- 100% gate resistance (Rg) tested
