VBsemi ElecDatasheet (PDF)

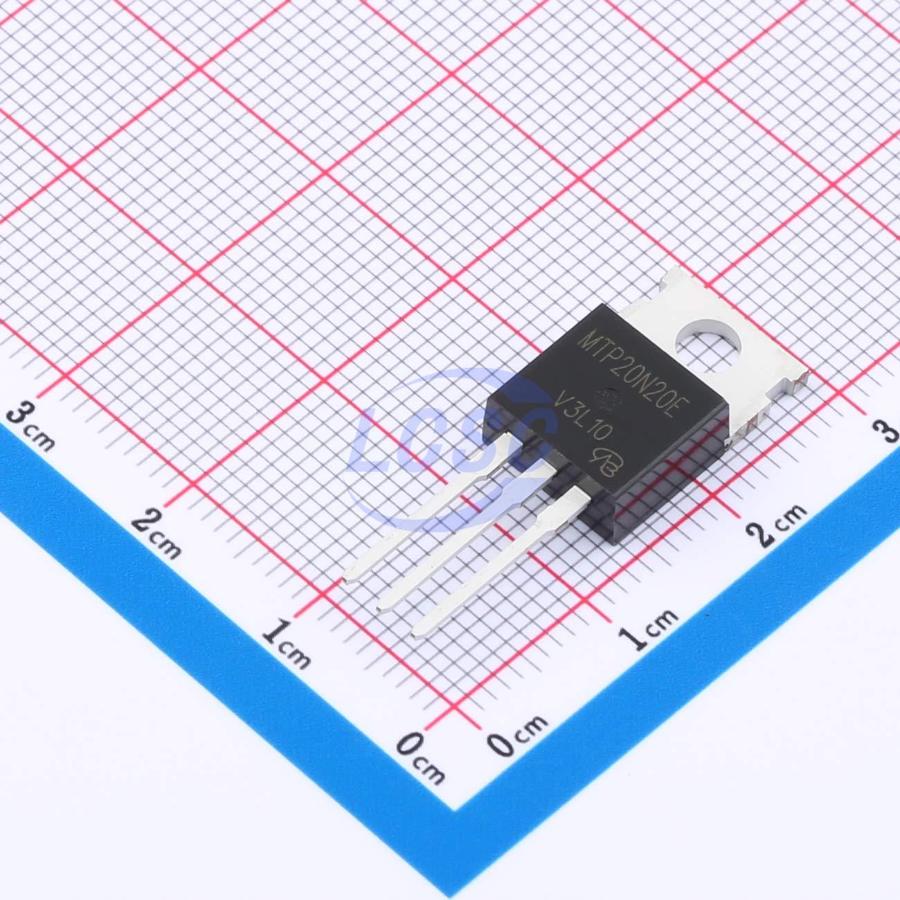

MTP20N20E-VB
N-Channel 200V 30A 125W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 200V 30A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- MTP20N20E-VB
- Store part #
- C19711262
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C19711262
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹122.56 | ₹122.56 |
| 10+ | ₹99.81 | ₹998.10 |
| 50+ | ₹83.04 | ₹4,152.00 |
| 100+ | ₹71.67 | ₹7,167.00 |
| 500+ | ₹64.88 | ₹32,440.00 |
| 1,000+ | ₹61.48 | ₹61,480.00 |
1 × ₹122.56
₹122.56
excl. GST
₹144.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
MTP20N20E-VB
₹122.56 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 125W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 110mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 34nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.14 g
Overview
Applications
- Primary-side switch - N-channel MOSFET
Key features
- Trench power MOSFET
- Junction temperature 175°C
- PWM optimized
- 100% gate resistance (Rg) tested
- RoHS compliant with directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BUZ30A H-VB#C19190110VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 1 | ₹131.92 · 1 in stock | View |
 | IRL640PBF-VB#C19190280VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹165.02 · 20 in stock | View |
 | BUZ31L H-VB#C19711315VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 2 | ₹123.52 · 2 in stock | View |
 | IRL3215PBF-VB#C20755183VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 9 | ₹123.52 · 9 in stock | View |
 | 20NF20-VB TO220#C22389438VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹123.52 · 5 in stock | View |
