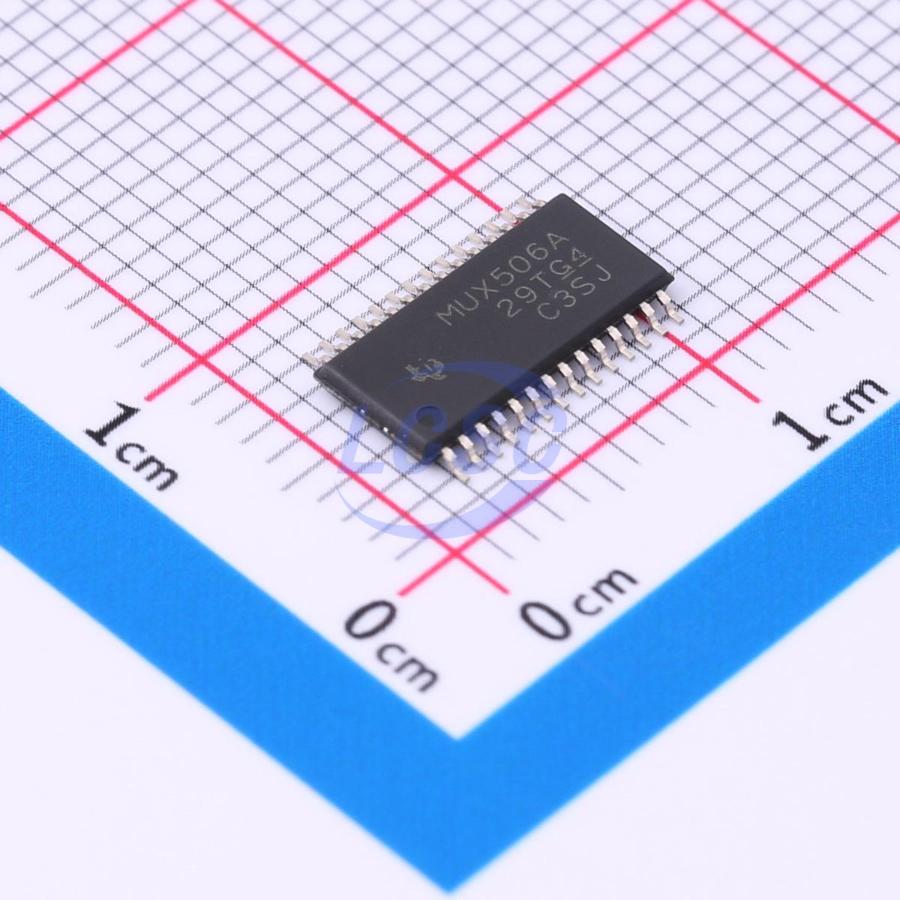

MUX506IPWR

The MUX506 and MUX507 (MUX50x) are modern CMOS analog MUXes. The MUX506 offers 16:1 single-ended channels, while the MUX507 offers 8:1 differential channels or dual 8:1 single-ended channels. The MUX506 and MUX507 operate from dual supplies (±5V to ±18V) or a single supply (10V to 36V). These devices also guarantee excellent performance when powered by symmetric supplies (e.g., VDD = 12V, VSS = -12V) and asymmetric supplies (e.g., VDD = 12V, VSS = -5V). All digital inputs feature TTL-compatible thresholds, which guarantee compatibility with both TTL and CMOS logic when the device operates within the valid supply voltage range. The MUX506 and MUX507 feature low on- and off-state leakage currents, allowing these MUXes to switch signals from high-impedance sources with minimal error. Supply current as low as 45μA supports use in power-sensitive applications.

Applications

• Factory automation and industrial process control
• Programmable Logic Controller (PLC)
• Analog input modules
• Automatic Test Equipment (ATE)
• Digital multimeters
• Battery monitoring systems

Key features

• Low on-state capacitance: MUX506: 13.5pF, MUX507: 8.7pF
• Low input leakage: 1pA
• Low charge injection: 0.31pC
• Rail-to-rail operation
• Wide supply voltage range: ±5V to ±18V or 10V to 36V
• Low on-resistance: 125Ω
• Switching time: 97ns
• Break-before-make switching operation
• EN pin connected to VDD
• Logic level: 2V to VDD
• Low supply current: 45μA
• ESD protection HBM: 2000V
• Industry-standard TSSOP/SOIC package
