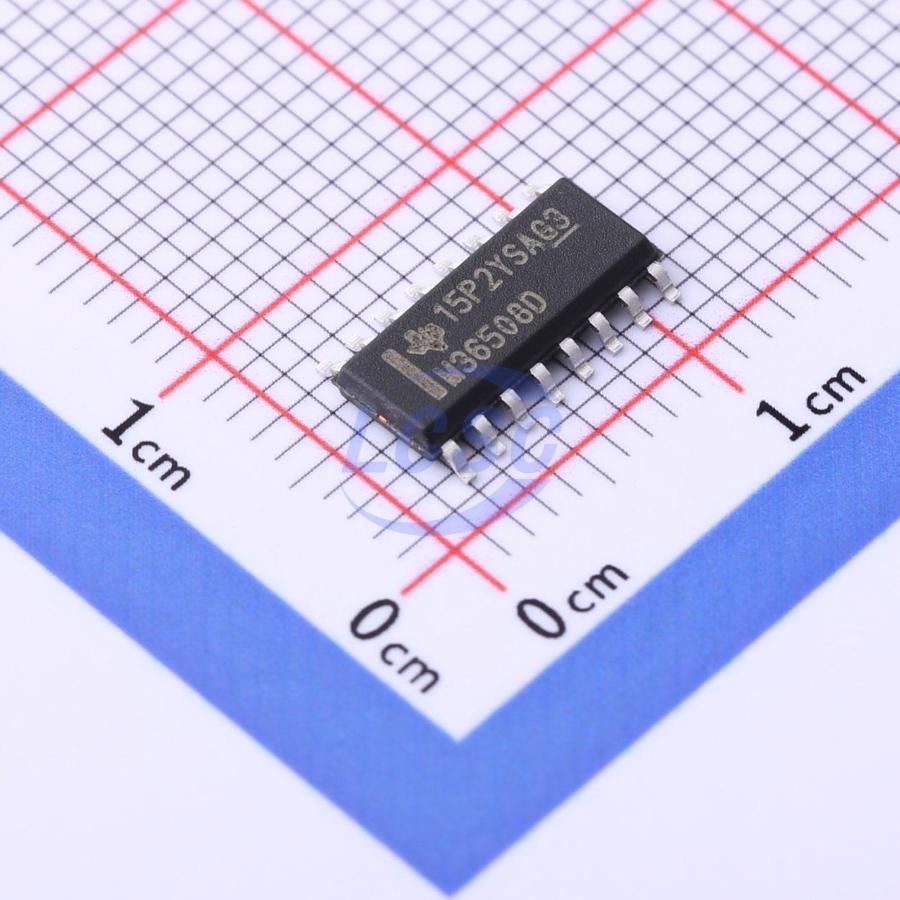

MUX508IDR

The MUX508 and MUX509 (MUX50x) are modern CMOS analog multiplexers (mux). The MUX508 provides 8:1 single-ended channels, while the MUX509 provides 4:1 differential channels or dual 4:1 single-ended channels. The MUX508 and MUX509 operate from dual supplies (±5V to ±18V) or single supplies (10V to 36V). Both devices are guaranteed to perform excellently when powered by symmetric supplies (e.g., VDD = 12V, VSS = -12V) as well as asymmetric supplies (e.g., VDD = 12V, VSS = -5V). All digital inputs feature TTL-compatible thresholds, which ensure compatibility with both TTL and CMOS logic when the device operates within the valid supply voltage range. The MUX508 and MUX509 multiplexers feature very low on- and off-state leakage currents, enabling high-input-impedance source signals to be switched with minimal error. The device draws as little as 45μA supply current, making it suitable for portable applications with VTT discharge.

Applications

• Factory automation and industrial process control
• Programmable Logic Controllers (PLC)
• Analog input modules
• Automatic Test Equipment (ATE)
• Digital multimeters
• Battery monitoring systems

Key features

• Low on-capacitance: 9.4pF for MUX508, 6.7pF for MUX509
• Low input leakage current: 10pA
• Low charge injection: 0.3pC
• Rail-to-rail operation
• Wide supply voltage range: ±5V to ±18V or 10V to 36V
• Low on-resistance: 125Ω
• Switching time: 92ns
• Break-before-make switching operation
• EN pin connected to VDD
• Logic level: 2V to VDD
• Low supply current: 45μA
• HBM ESD protection > 2000V
• Industry-standard TSSOP and SOIC packages
