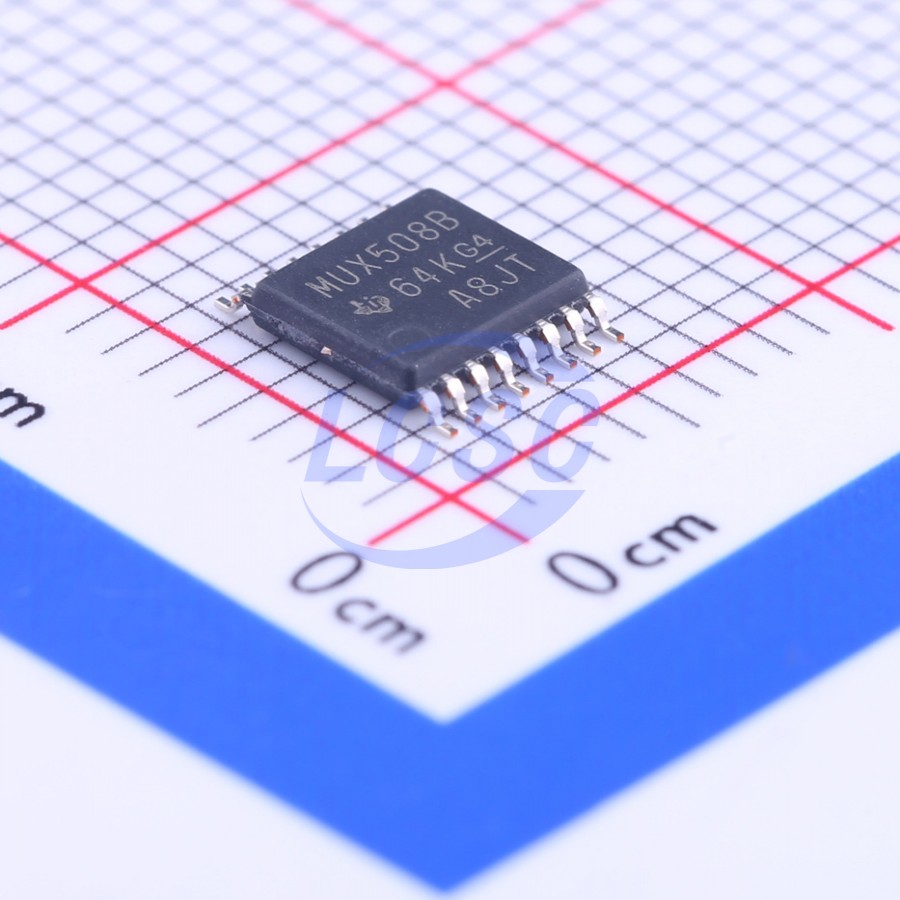

MUX508IPWR

The MUX508 and MUX509 (MUX50x) are modern CMOS analog multiplexers (mux). The MUX508 provides an 8:1 single-ended channel, while the MUX509 provides a 4:1 differential channel or dual 4:1 single-ended channels. Both the MUX508 and MUX509 operate from dual supplies (±5V to ±18V) or a single supply (10V to 36V). Both devices are guaranteed to perform well when powered from symmetric supplies (e.g., VDD = 12V, VSS = −12V) as well as asymmetric supplies (e.g., VDD = 12V, VSS = −5V). All digital inputs feature TTL-compatible thresholds, which ensure compatibility with both TTL and CMOS logic when the device operates within the valid supply voltage range. Both the MUX508 and MUX509 exhibit very low on- and off-state leakage currents, enabling high-input-impedance source signals to be switched with minimal error. The device's supply current is as low as 45μA, making it suitable for portable applications with VTT discharge.

Applications

• Factory automation and industrial process control programmable logic controller (PLC)
• Analog input module automatic test equipment (ATE)
• Digital multimeter battery monitoring system

Key features

• Low on-capacitance: 9.4pF for MUX508, 6.7pF for MUX509
• Low input leakage current: 10pA
• Low charge injection: 0.3pC
• Rail-to-rail operation
• Wide supply voltage range: ±5V to ±18V or 10V to 36V
• Low on-resistance: 125Ω
• Switching time: 92ns
• Break-before-make switching operation
• EN pin tied to VDD
• Logic level: 2V to VDD
• Low supply current: 45μA
• HBM ESD protection > 2000V
• Industry-standard TSSOP and SOIC packages
