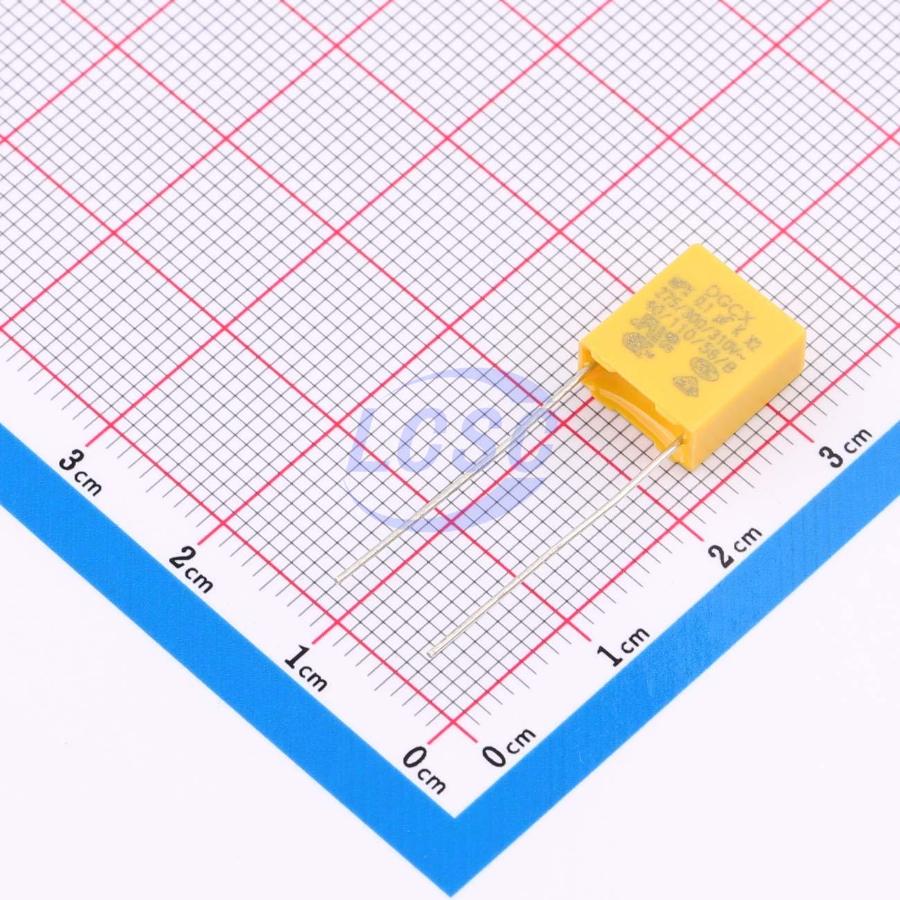

MX2104KQ3B40YB2000R
100nF ±10% 310V Safety Capacitor Through Hole,P=7.5mm
CAP SAFETY 100nF ±10% 310V TH
- Manufacturer
- DGCX
- Manufacturer part #
- MX2104KQ3B40YB2000R
- Store part #
- C42381312
- Package / case
- Through Hole,P=7.5mm
- Category
- Ceramic Capacitors
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,460 in stock
#C42381312
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.28 | ₹72.80 |
| 100+ | ₹5.89 | ₹589.00 |
| 300+ | ₹5.20 | ₹1,560.00 |
| 1,000+ | ₹4.67 | ₹4,670.00 |
| 5,000+ | ₹4.26 | ₹21,300.00 |
| 10,000+ | ₹4.05 | ₹40,500.00 |
10 × ₹7.28
₹72.80
excl. GST
₹85.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
MX2104KQ3B40YB2000R
₹72.80 for 10 + GST
Specifications
- Capacitance
- 100nF
- Tolerance
- ±10%
- Operating Temperature
- -40℃~+110℃
- Ratings
- X2
- Voltage(AC)
- 310V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.742 g
Overview
The MPX series capacitors feature a metallized polypropylene film non-inductive winding construction, with tin-plated copper-clad steel leads soldered to the schoopage terminations of the capacitor element. The capacitor body is encapsulated in a UL94V-0 flame-retardant plastic case with flame-retardant epoxy resin. This series is widely used in interference suppression and across-the-line capacitor circuits, suitable for applications where failure of the capacitor does not present an electric shock hazard.
Applications
- Interference suppressor and crossover capacitor circuits, for applications where capacitor failure does not create an electric shock hazard.
Key features
- Metallized polypropylene film, non-inductive construction with excellent self-healing properties.
- High voltage surge withstanding capability.
- Flame-retardant plastic case and flame-retardant epoxy resin encapsulation.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MX2104KQ3B3SYB20S0R#C42381310DGCX · Through Hole,P=7.5mm | DGCX | Through Hole,P=7.5mm | 930 | ₹4.19 · 930 in stock | View |
 | MX2104KQ3B30YB20S0R#C42381311DGCX · Through Hole,P=7.5mm | DGCX | Through Hole,P=7.5mm | 820 | ₹6.97 · 820 in stock | View |
 | MX2104KQ3B50YB2000R#C42381313DGCX · Through Hole,P=7.5mm | DGCX | Through Hole,P=7.5mm | 480 | ₹3.65 · 480 in stock | View |
