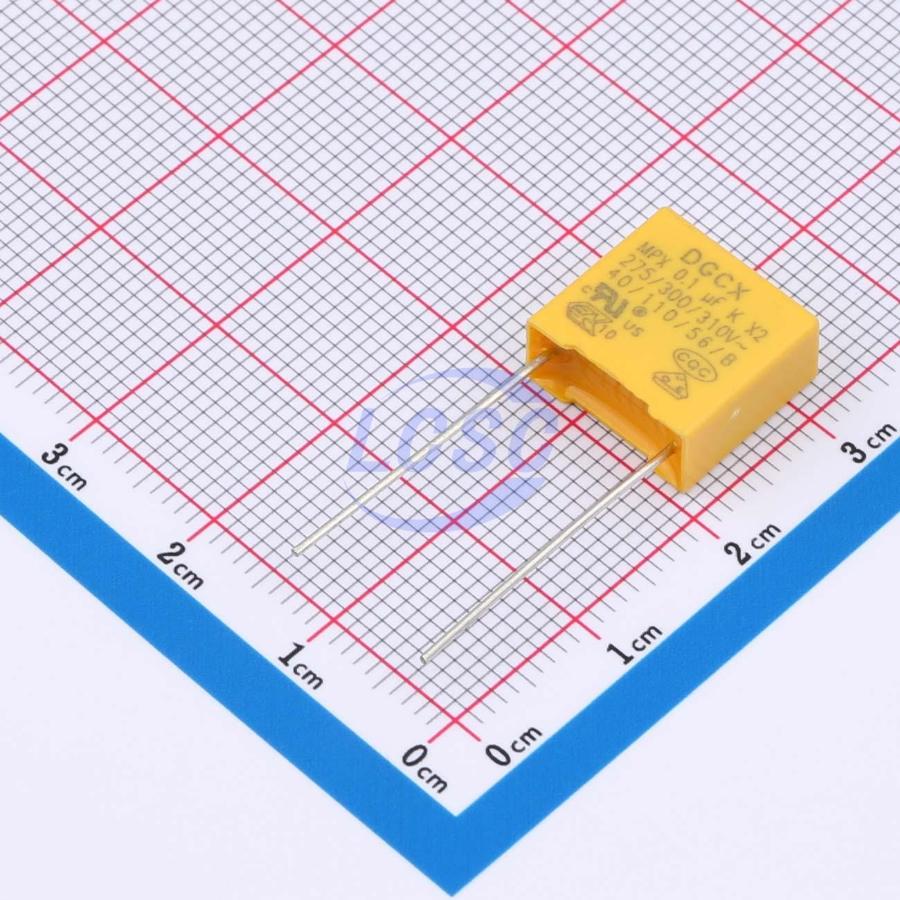

MX2104KQ3C30YB2000R
100nF ±10% 310V Safety Capacitor Through Hole,P=10mm
CAP SAFETY 100nF ±10% 310V TH
- Manufacturer
- DGCX
- Manufacturer part #
- MX2104KQ3C30YB2000R
- Store part #
- C42381317
- Package / case
- Through Hole,P=10mm
- Category
- Ceramic Capacitors
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,560 in stock
#C42381317
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.44 | ₹108.80 |
| 200+ | ₹4.39 | ₹878.00 |
| 1,000+ | ₹3.88 | ₹3,880.00 |
| 2,000+ | ₹3.48 | ₹6,960.00 |
| 10,000+ | ₹3.18 | ₹31,800.00 |
| 20,000+ | ₹3.02 | ₹60,400.00 |
20 × ₹5.44
₹108.80
excl. GST
₹128.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
MX2104KQ3C30YB2000R
₹108.80 for 20 + GST
Specifications
- Capacitance
- 100nF
- Tolerance
- ±10%
- Operating Temperature
- -40℃~+110℃
- Ratings
- X2
- Voltage(AC)
- 310V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 1.245 g
Overview
The MPX series capacitors feature a metallized polypropylene film non-inductive winding construction, with tin-plated copper-clad steel leads soldered to the metallized end-spray layer of the capacitor core. The capacitor body is encapsulated in a UL94V-0 flame-retardant plastic case with flame-retardant epoxy resin. MPX series capacitors are widely used in interference suppressors and across-the-line capacitor circuits. Suitable for applications where capacitor failure does not present an electric shock hazard.
Applications
- Interference Suppressors and Crossover Capacitor Loops
Key features
- Metallized polypropylene film, non-inductive construction with excellent self-healing properties.
- High voltage surge withstanding capability.
- Flame-retardant plastic case and flame-retardant epoxy resin encapsulation.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MX2104KQ3C10YB2000R#C42381314DGCX · Through Hole,P=10mm | DGCX | Through Hole,P=10mm | 320 | ₹6.48 · 320 in stock | View |
 | MX2104KQ3C11GB2000R#C42381315DGCX · Through Hole,P=10mm | DGCX | Through Hole,P=10mm | 1,140 | ₹6.13 · 1,140 in stock | View |
 | MX2104KQ3C20YB2000R#C42381316DGCX · Through Hole,P=10mm | DGCX | Through Hole,P=10mm | 1,080 | ₹6.23 · 1,080 in stock | View |
