DGCX

MX2223KQ3B30YB2000R

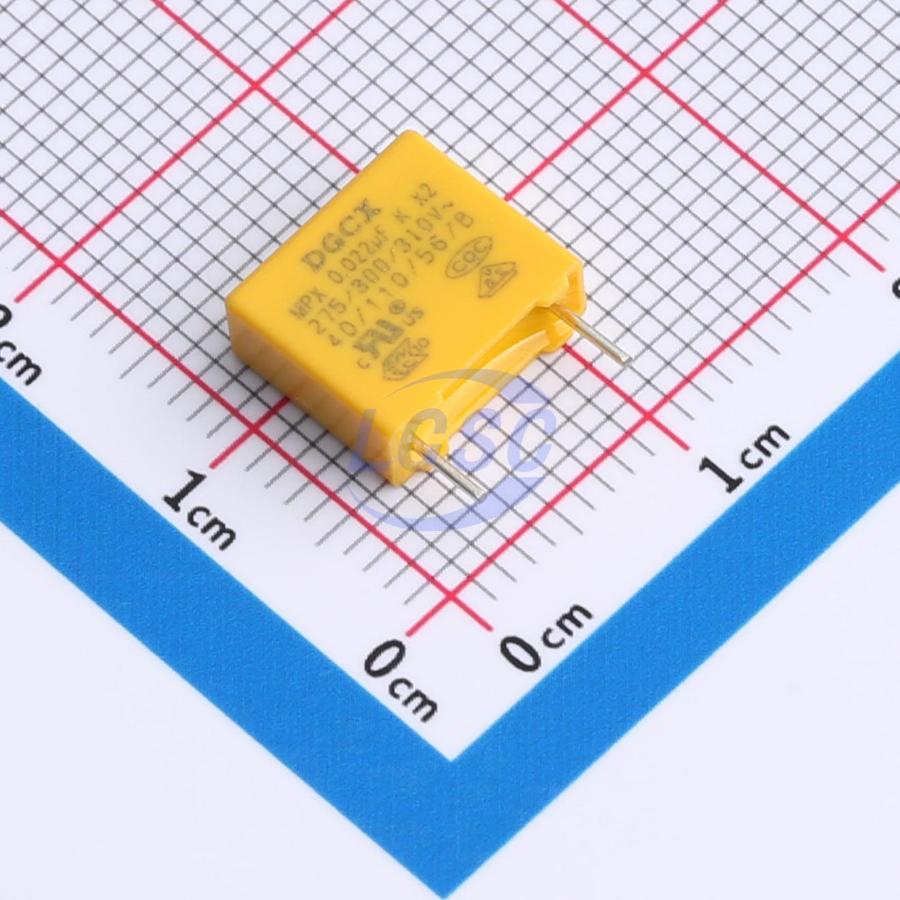

22nF ±10% 310V Safety Capacitor Through Hole,P=7.5mm

Through Hole,P=7.5mmRoHSActive

CAP SAFETY 22nF ±10% 310V TH

Manufacturer: DGCX
Manufacturer part #: MX2223KQ3B30YB2000R
Store part #: C42381296
Package / case: Through Hole,P=7.5mm
Category: Ceramic Capacitors
Packaging: Bag-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

960 in stock

#C42381296

Stock & price checked 23 h ago

Quantity	Unit price	Pack price
10+	₹2.86	₹28.60
100+	₹2.79	₹279.00
300+	₹2.75	₹825.00
1,000+	₹2.70	₹2,700.00

Quantity (min 10, multiples of 10)

10 × ₹2.86

₹28.60

excl. GST

₹33.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per bag

MX2223KQ3B30YB2000R

₹28.60 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Capacitance: 22nF
Tolerance: ±10%
Operating Temperature: -40℃~+110℃
Ratings: X2
Voltage(AC): 310V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Bag-packed
Standard pack: 1,000 / Bag
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.462 g

Overview

The MPX series capacitors feature a metallized polypropylene film non-inductive winding construction, with tin-plated copper-clad steel leads soldered to the metallized (flame-sprayed) terminals of the capacitor element. The capacitor body is encapsulated in a UL94V-0 flame-retardant plastic case with flame-retardant epoxy resin. MPX series capacitors are widely used in interference suppression and across-the-line capacitor circuits, and are suitable for applications where capacitor failure does not result in electric shock hazard.

Applications

Interference Suppressors and Crossover Capacitor Loops

Key features

Metallized polypropylene film, non-inductive construction with excellent self-healing properties.
High voltage surge withstanding capability.
Flame-retardant plastic case and flame-retardant epoxy resin encapsulation.
