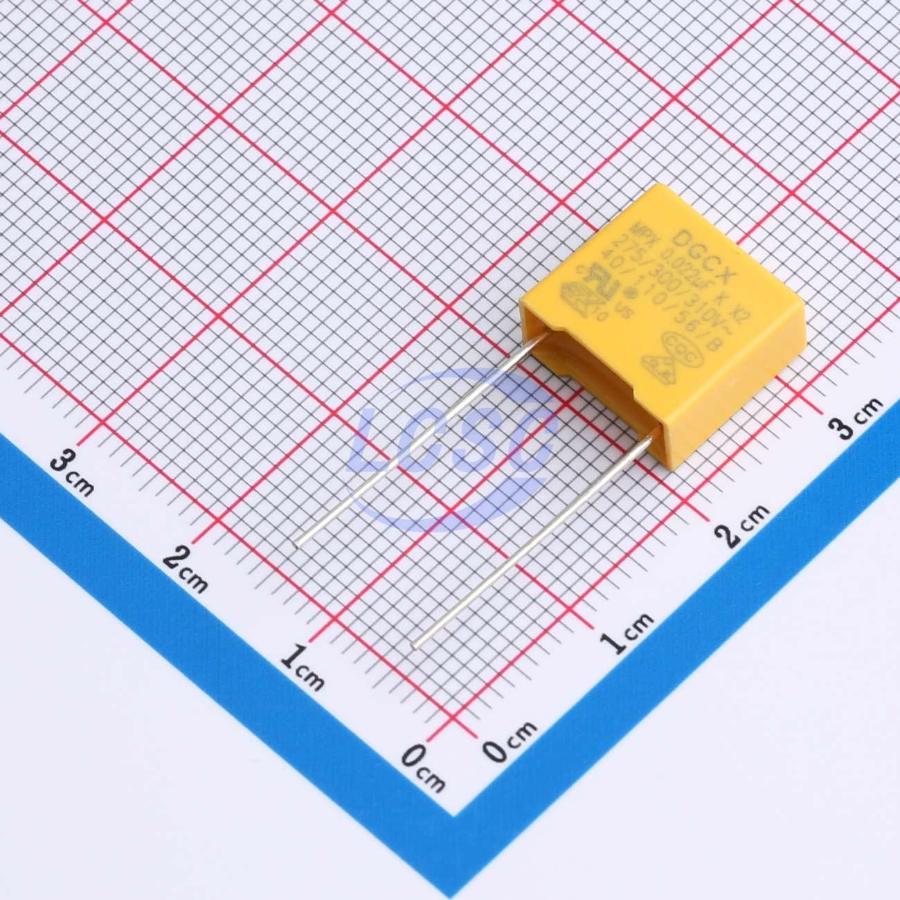

MX2223KQ3C30YB2000R
22nF ±10% 310V Safety Capacitor Through Hole,P=10mm
CAP SAFETY 22nF ±10% 310V TH
- Manufacturer
- DGCX
- Manufacturer part #
- MX2223KQ3C30YB2000R
- Store part #
- C42381299
- Package / case
- Through Hole,P=10mm
- Category
- Ceramic Capacitors
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
280 in stock
#C42381299
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.59 | ₹91.80 |
| 200+ | ₹3.59 | ₹718.00 |
| 500+ | ₹3.02 | ₹1,510.00 |
| 2,000+ | ₹2.67 | ₹5,340.00 |
| 10,000+ | ₹2.38 | ₹23,800.00 |
| 20,000+ | ₹2.22 | ₹44,400.00 |
20 × ₹4.59
₹91.80
excl. GST
₹108.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 500 per bag
MX2223KQ3C30YB2000R
₹91.80 for 20 + GST
Specifications
- Capacitance
- 22nF
- Tolerance
- ±10%
- Operating Temperature
- -40℃~+110℃
- Ratings
- X2
- Voltage(AC)
- 310V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Bag-packed
- Standard pack
- 500 / Bag
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 1.226 g
Overview
The MPX series capacitors feature a metallized polypropylene film non-inductive winding construction, with tin-plated copper-clad steel leads soldered to the metallized end-spray layer of the capacitor core. The capacitor body is encapsulated in a UL94V-0 flame-retardant plastic case with flame-retardant epoxy resin. MPX series capacitors are widely used in interference suppressors and across-the-line capacitor circuits. Suitable for applications where capacitor failure does not present an electric shock hazard.
Applications
- Interference suppressor and crossover capacitor circuits, for applications where capacitor failure does not create an electric shock hazard.
Key features
- Metallized polypropylene film, non-inductive construction with excellent self-healing properties.
- High voltage surge withstanding capability.
- Flame-retardant plastic case and flame-retardant epoxy resin encapsulation.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| MX2223KQ3C20YB2000R#C42381298DGCX · Through Hole,P=10mm | DGCX | Through Hole,P=10mm | 840 | ₹2.30 · 840 in stock | View | |
