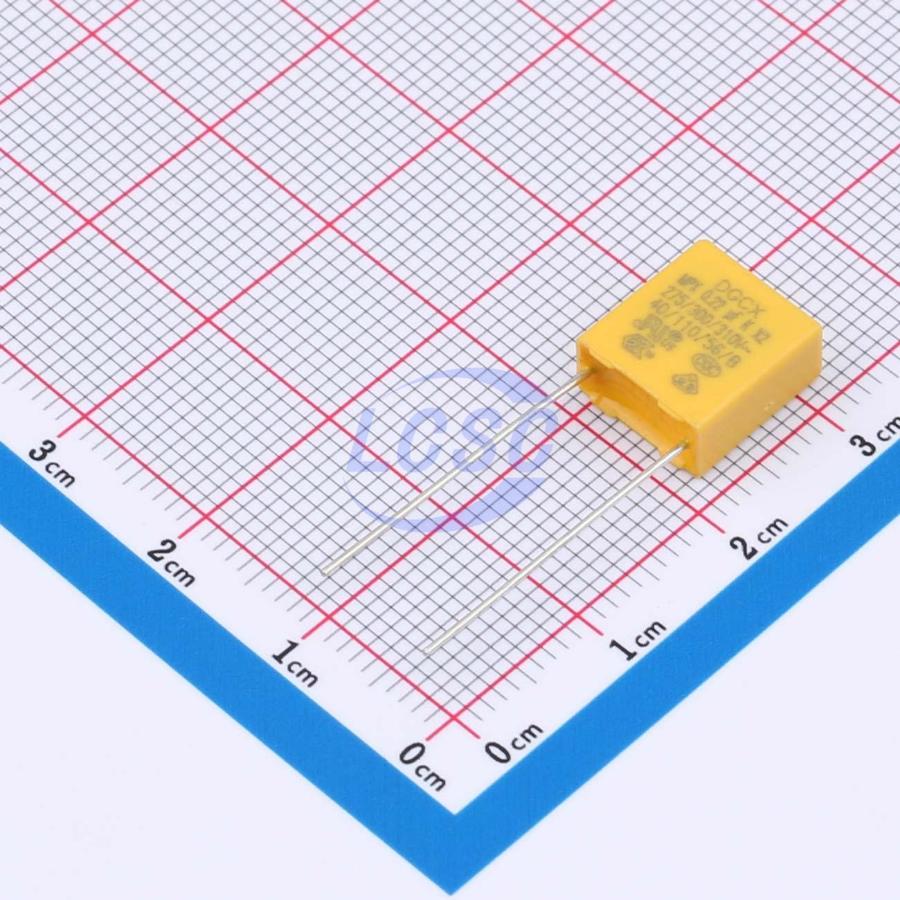

MX2224KQ3B40YB2000R
220nF ±10% 310V Safety Capacitor Through Hole,P=7.5mm
CAP SAFETY 220nF ±10% 310V TH
- Manufacturer
- DGCX
- Manufacturer part #
- MX2224KQ3B40YB2000R
- Store part #
- C42381329
- Package / case
- Through Hole,P=7.5mm
- Category
- Ceramic Capacitors
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
900 in stock
#C42381329
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.33 | ₹43.30 |
| 100+ | ₹4.22 | ₹422.00 |
| 300+ | ₹4.15 | ₹1,245.00 |
| 1,000+ | ₹4.09 | ₹4,090.00 |
10 × ₹4.33
₹43.30
excl. GST
₹51.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
MX2224KQ3B40YB2000R
₹43.30 for 10 + GST
Specifications
- Capacitance
- 220nF
- Tolerance
- ±10%
- Operating Temperature
- -40℃~+110℃
- Ratings
- X2
- Voltage(AC)
- 310V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.751 g
Overview
The MPX series capacitors feature a metallized polypropylene film non-inductive winding construction, with tin-plated copper-clad steel leads soldered to the metallized (flame-sprayed) terminals of the capacitor element. The capacitor body is encapsulated in a UL94V-0 flame-retardant plastic case with flame-retardant epoxy resin. MPX series capacitors are widely used in interference suppression and across-the-line capacitor circuits, and are suitable for applications where capacitor failure does not result in electric shock hazard.
Applications
- Interference Suppressors and Crossover Capacitor Loops
Key features
- Metallized polypropylene film, non-inductive construction with excellent self-healing properties.
- High voltage surge withstanding capability.
- Flame-retardant plastic case and flame-retardant epoxy resin encapsulation.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MX2224KQ3B11YB2000R#C42381328DGCX · Through Hole,P=7.5mm | DGCX | Through Hole,P=7.5mm | 800 | ₹7.96 · 800 in stock | View |
 | MX2224KQ3B50YB2000R#C42381330DGCX · Through Hole,P=7.5mm | DGCX | Through Hole,P=7.5mm | 840 | ₹8.20 · 840 in stock | View |
 | MX2224KQ3B92YB2000R#C42381331DGCX · Through Hole,P=7.5mm | DGCX | Through Hole,P=7.5mm | 430 | ₹4.78 · 430 in stock | View |
