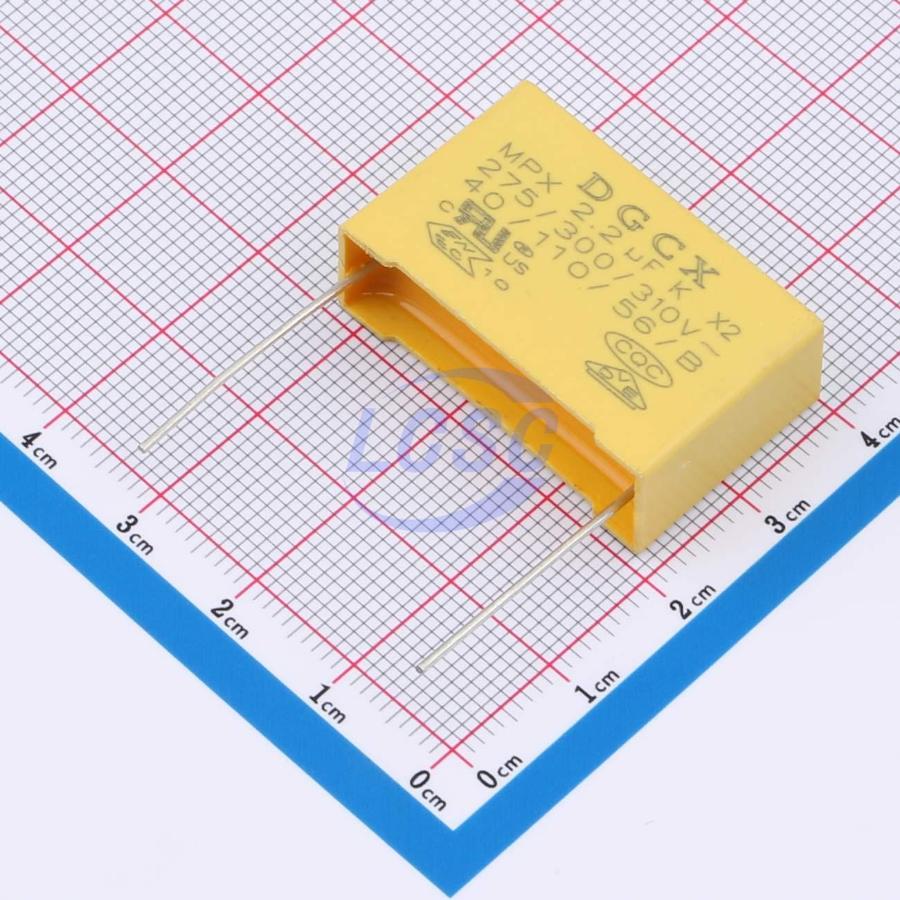

DGCX

MX2225KQ3F10YB2000R

2.2uF ±10% 310V Safety Capacitor Through Hole,P=27.5mm

Through Hole,P=27.5mmRoHSActive

CAP SAFETY 2.2uF ±10% 310V TH

Manufacturer: DGCX
Manufacturer part #: MX2225KQ3F10YB2000R
Store part #: C42381407
Package / case: Through Hole,P=27.5mm
Category: Ceramic Capacitors
Packaging: Bag-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,680 in stock

#C42381407

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹36.62	₹183.10
50+	₹28.95	₹1,447.50
200+	₹25.67	₹5,134.00
500+	₹21.56	₹10,780.00
2,500+	₹19.74	₹49,350.00
5,000+	₹18.65	₹93,250.00

Quantity (min 5, multiples of 5)

5 × ₹36.62

₹183.10

excl. GST

₹216.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 100 per bag

MX2225KQ3F10YB2000R

₹183.10 for 5 + GST

Specifications

Capacitance: 2.2uF
Tolerance: ±10%
Operating Temperature: -40℃~+110℃
Ratings: X2
Voltage(AC): 310V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Bag-packed
Standard pack: 100 / Bag
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 7.224 g

Overview

The MPX series capacitors feature a metallized polypropylene film non-inductive winding construction, with tin-plated copper-clad steel leads soldered to the metallized end-spray layer of the capacitor core. The capacitor body is encapsulated in a UL94V-0 flame-retardant plastic case with flame-retardant epoxy resin. MPX series capacitors are widely used in interference suppressors and across-the-line capacitor circuits. Suitable for applications where capacitor failure does not present an electric shock hazard.

Applications

Interference suppressor and crossover capacitor circuits, for applications where capacitor failure does not create an electric shock hazard.

Key features

Metallized polypropylene film, non-inductive construction with excellent self-healing properties.
High voltage surge withstanding capability.
Flame-retardant plastic case and flame-retardant epoxy resin encapsulation.
