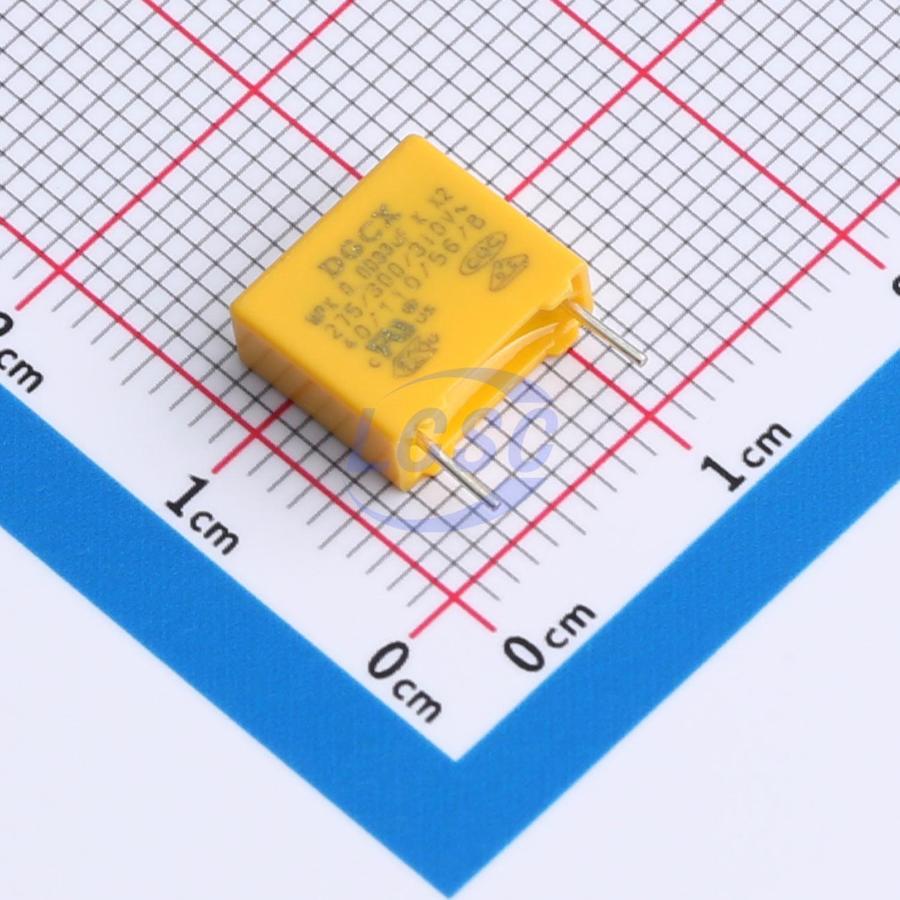

MX2332KQ3B30YB2000R
3.3nF ±10% 310V Safety Capacitor Through Hole,P=7.5mm
CAP SAFETY 3.3nF ±10% 310V TH
- Manufacturer
- DGCX
- Manufacturer part #
- MX2332KQ3B30YB2000R
- Store part #
- C42381292
- Package / case
- Through Hole,P=7.5mm
- Category
- Ceramic Capacitors
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
290 in stock
#C42381292
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹5.25 | ₹26.25 |
| 50+ | ₹5.13 | ₹256.50 |
| 150+ | ₹5.04 | ₹756.00 |
| 500+ | ₹4.95 | ₹2,475.00 |
5 × ₹5.25
₹26.25
excl. GST
₹30.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 300 per bag
MX2332KQ3B30YB2000R
₹26.25 for 5 + GST
Specifications
- Capacitance
- 3.3nF
- Tolerance
- ±10%
- Operating Temperature
- -40℃~+110℃
- Ratings
- X2
- Voltage(AC)
- 310V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Bag-packed
- Standard pack
- 300 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.486 g
Overview
The MPX series capacitors feature a metallized polypropylene film non-inductive winding construction, with tin-plated copper-clad steel leads soldered to the metallized (flame-sprayed) terminals of the capacitor element. The capacitor body is encapsulated in a UL94V-0 flame-retardant plastic case with flame-retardant epoxy resin. MPX series capacitors are widely used in interference suppression and across-the-line capacitor circuits, and are suitable for applications where capacitor failure does not result in electric shock hazard.
Applications
- Interference Suppressors and Crossover Capacitor Loops
Key features
- Metallized polypropylene film, non-inductive construction with excellent self-healing properties.
- High voltage surge withstanding capability.
- Flame-retardant plastic case and flame-retardant epoxy resin encapsulation.
