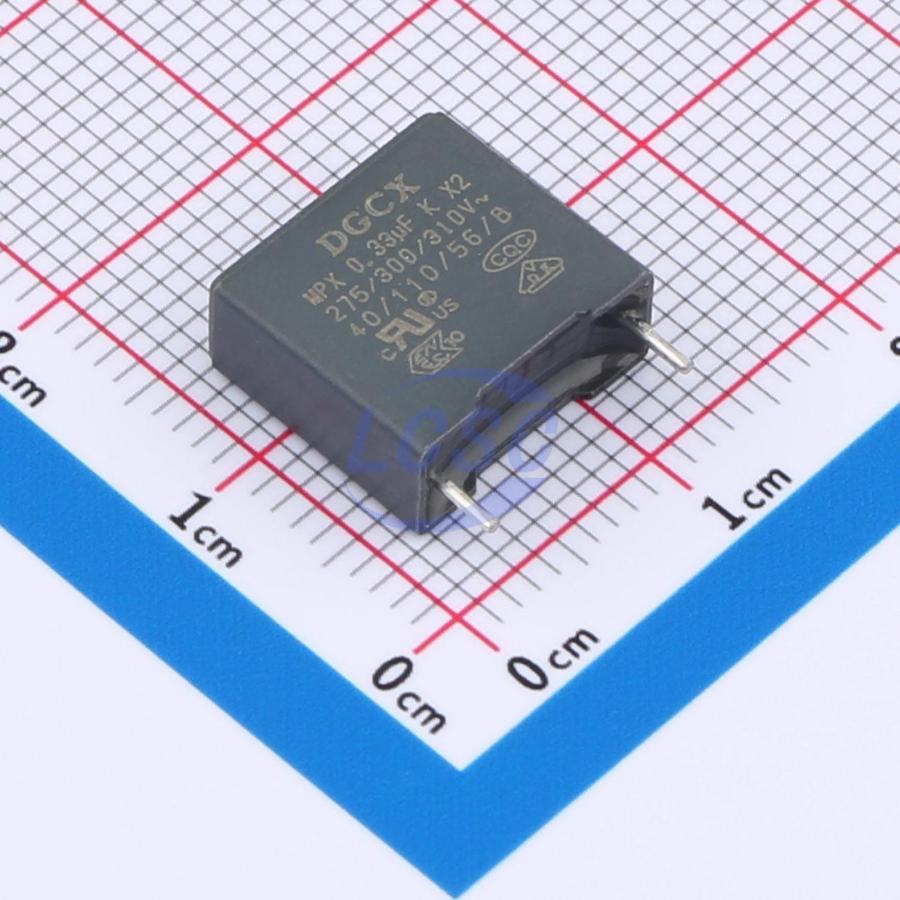

MX2334KQ3C20GB2000R
330nF ±10% 310V Safety Capacitor Through Hole,P=10mm
CAP SAFETY 330nF ±10% 310V TH
- Manufacturer
- DGCX
- Manufacturer part #
- MX2334KQ3C20GB2000R
- Store part #
- C42381344
- Package / case
- Through Hole,P=10mm
- Category
- Ceramic Capacitors
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C42381344
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.59 | ₹45.90 |
| 100+ | ₹4.48 | ₹448.00 |
| 300+ | ₹4.42 | ₹1,326.00 |
| 1,000+ | ₹4.35 | ₹4,350.00 |
10 × ₹4.59
₹45.90
excl. GST
₹54.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 900 per bag
MX2334KQ3C20GB2000R
₹45.90 for 10 + GST
Specifications
- Capacitance
- 330nF
- Tolerance
- ±10%
- Operating Temperature
- -40℃~+110℃
- Ratings
- X2
- Voltage(AC)
- 310V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Bag-packed
- Standard pack
- 900 / Bag
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.831 g
Overview
The MPX series capacitors feature a metallized polypropylene film non-inductive winding construction, with tin-plated copper-clad steel leads soldered to the metallized (flame-sprayed) terminals of the capacitor element. The capacitor body is encapsulated in a UL94V-0 flame-retardant plastic case with flame-retardant epoxy resin. MPX series capacitors are widely used in interference suppression and across-the-line capacitor circuits, and are suitable for applications where capacitor failure does not result in electric shock hazard.
Applications
- Interference Suppressors and Crossover Capacitor Loops
Key features
- Metallized polypropylene film, non-inductive construction with excellent self-healing properties.
- High voltage surge withstanding capability.
- Flame-retardant plastic case and flame-retardant epoxy resin encapsulation.
