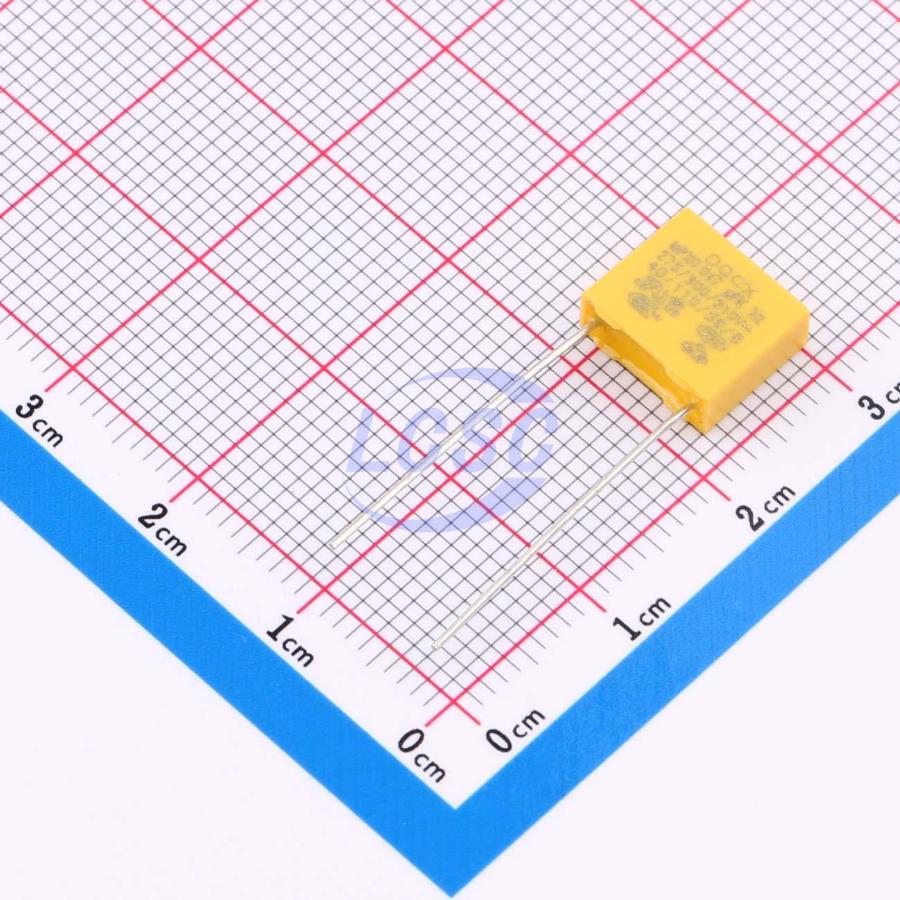

MX2473KQ3B30YB2000R
47nF ±10% 310V Safety Capacitor Through Hole,P=7.5mm
CAP SAFETY 47nF ±10% 310V TH
- Manufacturer
- DGCX
- Manufacturer part #
- MX2473KQ3B30YB2000R
- Store part #
- C42381303
- Package / case
- Through Hole,P=7.5mm
- Category
- Ceramic Capacitors
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
160 in stock
#C42381303
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.36 | ₹73.60 |
| 100+ | ₹5.85 | ₹585.00 |
| 300+ | ₹5.09 | ₹1,527.00 |
| 1,000+ | ₹4.52 | ₹4,520.00 |
| 5,000+ | ₹4.06 | ₹20,300.00 |
| 10,000+ | ₹3.84 | ₹38,400.00 |
10 × ₹7.36
₹73.60
excl. GST
₹86.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
MX2473KQ3B30YB2000R
₹73.60 for 10 + GST
Specifications
- Capacitance
- 47nF
- Tolerance
- ±10%
- Operating Temperature
- -40℃~+110℃
- Ratings
- X2
- Voltage(AC)
- 310V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.463 g
Overview
4.1 MPX series capacitors adopt a metallized polypropylene film non-inductive winding structure, with tin-plated copper-clad steel leads soldered to the schoopage layer of the capacitor core. The capacitor body is encapsulated with a UL94V-0 flame-retardant plastic case and flame-retardant epoxy resin. 4.2 MPX series capacitors are widely used in interference suppressors and across-the-line capacitor circuits. They are suitable for applications where capacitor failure does not present an electric shock hazard.
Applications
- Interference suppressor and crossover capacitor circuits, for applications where capacitor failure does not create an electric shock hazard.
Key features
- Metallized polypropylene film, non-inductive construction with excellent self-healing properties.
- High voltage surge withstanding capability.
- Flame-retardant plastic case and flame-retardant epoxy resin encapsulation.
