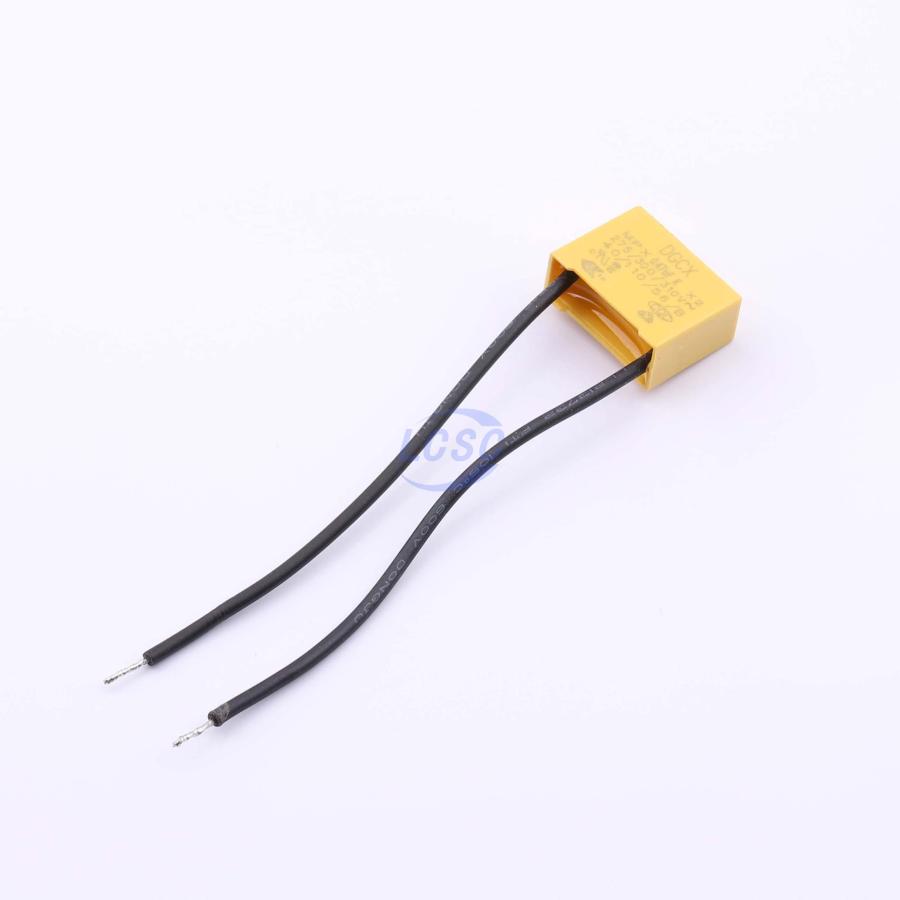

MX2474KQ3D30YP0700R
470nF ±10% X2 310V Through Hole,P=15mm Ceramic Capacitors
- Manufacturer
- DGCX
- Manufacturer part #
- MX2474KQ3D30YP0700R
- Store part #
- C53368103
- Package / case
- Through Hole,P=15mm
- Category
- Ceramic Capacitors
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
325 in stock
#C53368103
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.41 | ₹77.05 |
| 50+ | ₹15.10 | ₹755.00 |
| 150+ | ₹14.88 | ₹2,232.00 |
| 500+ | ₹14.67 | ₹7,335.00 |
5 × ₹15.41
₹77.05
excl. GST
₹90.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 500 per bag
MX2474KQ3D30YP0700R
₹77.05 for 5 + GST
Specifications
- Capacitance
- 470nF
- Tolerance
- ±10%
- Operating Temperature
- -40℃~+110℃
- Ratings
- X2
- Voltage(AC)
- 310V
- safety certification
- CQC;UL;ENEC
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 500 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.845 g
Overview
The MPX series capacitors feature a metallized polypropylene film non-inductive winding construction, with tin-plated copper-clad steel leads soldered to the metallized (flame-sprayed) terminals of the capacitor element. The capacitor body is encapsulated in a UL94V-0 flame-retardant plastic case with flame-retardant epoxy resin. MPX series capacitors are widely used in interference suppression and across-the-line capacitor circuits, and are suitable for applications where capacitor failure does not result in electric shock hazard.
Applications
- Interference Suppressors and Crossover Capacitor Loops
Key features
- Metallized polypropylene film, non-inductive construction with excellent self-healing properties.
- High voltage surge withstanding capability.
- Flame-retardant plastic case and flame-retardant epoxy resin encapsulation.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MX2474KQ3D40YP1100R#C53368096DGCX · Through Hole,P=15mm | DGCX | Through Hole,P=15mm | 270 | ₹15.41 · 270 in stock | View |
 | MX2474KQ3D40YB2000R#C42381364DGCX · Through Hole,P=15mm | DGCX | Through Hole,P=15mm | 160 | ₹14.35 · 160 in stock | View |
| MX2474KQ3D50YB2000R#C42381365DGCX · Through Hole,P=15mm | DGCX | Through Hole,P=15mm | 345 | ₹14.35 · 345 in stock | View | |
 | MX2474KQ3D32GB2000R#C42381366DGCX · Through Hole,P=15mm | DGCX | Through Hole,P=15mm | 2,405 | ₹14.80 · 2,405 in stock | View |
 | MX2474KQ3D30YB2000R#C42381363DGCX · Through Hole,P=15mm | DGCX | Through Hole,P=15mm | On request | Price on request | Quote |
